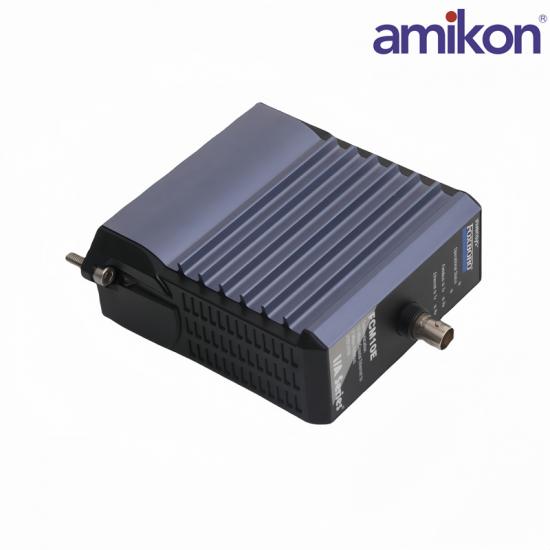

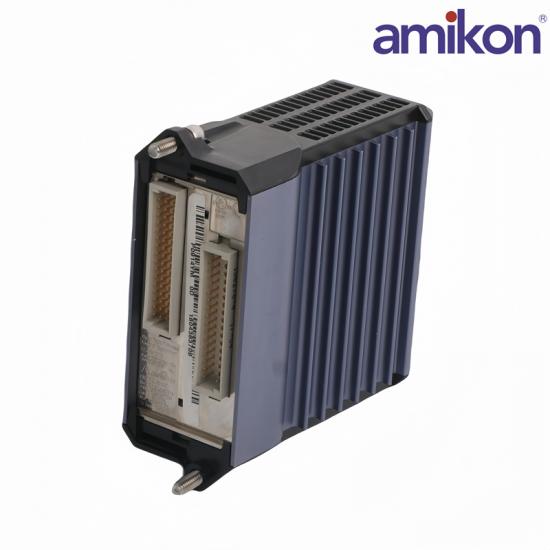

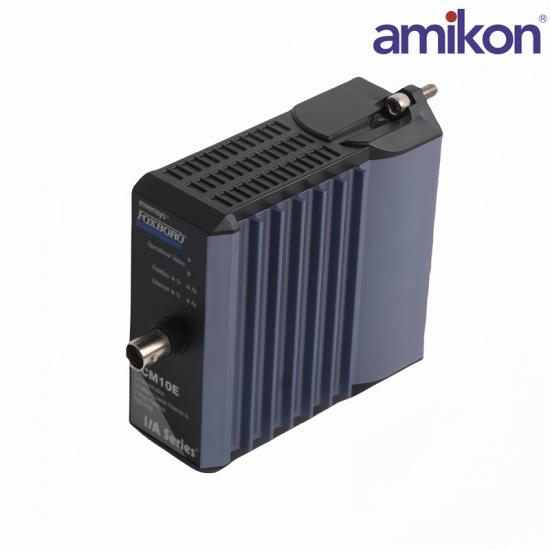

FOXBORO  FCM10E P0914YM Fieldbus Module

The FOXBORO FCM10E P0914YM Fieldbus Module is designed for use within the FOXBORO I/A Series system, facilitating communication between field devices and control systems via Fieldbus protocols.

The FCM10E module serves as an interface for connecting and managing multiple field devices using digital communication protocols, enhancing data exchange and control processes.

Channels: Typically supports multiple input and output channels, enabling connection to several field devices simultaneously.

Data Rate: Supports high-speed data transmission, which is critical for real-time monitoring and control.

The FCM10E Fieldbus Communications Module is a communications interface which allows the DIN rail mounted Fieldbus Modules (FBMs) to communicate with I/A Series control stations via the high speed, optionally redundant 10 Mbps Ethernet trunk Fieldbus. The FCM10E converts 10 Mbps Ethernet signals used by the control station to 2 Mbps signals used by the FBMs, and vice versa. They also provide galvanic isolation between the 10 Mbps Ethernet trunk Fieldbus and the 2 Mbps module Fieldbus.

The FCM10E modules are used in pairs for redundancy. An FCM10E (or pair of FCM10E modules) can support up to 30 FBMs.

FCM10E modules have a compact design, with a rugged extruded aluminum exterior for physical protection of the circuits. Up to 30 FCM10E pairs can be connected to the Ethernet trunk Fieldbus.
