Description：

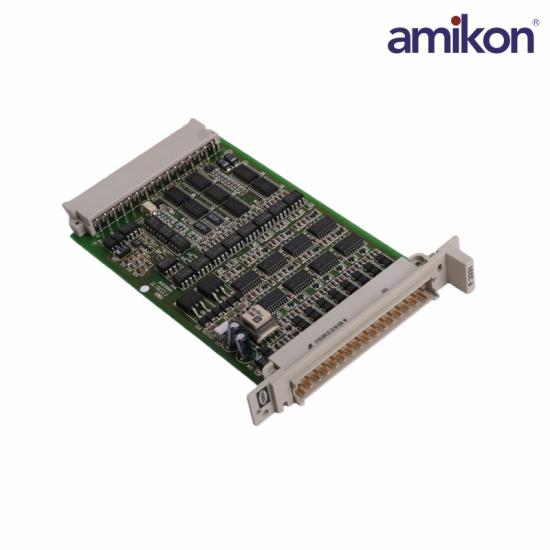

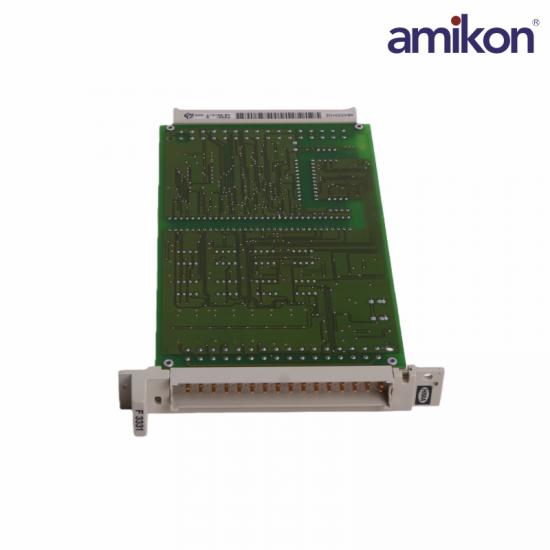

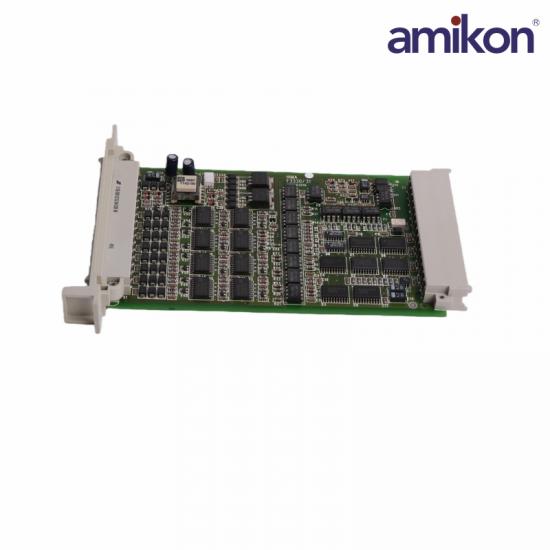

The HIMA F3422 8-Channel Relay Module is a safety-rated digital output module that provides eight independent output channels for use in safety instrumented systems (SIS) and critical industrial applications. Operating with a nominal 24 VDC supply, each channel supports load currents of up to 2 A and utilizes solid-state switching technology to deliver fast, reliable, and maintenance-free output control. With a typical response time of less than 10 ms, the module enables rapid execution of safety-related control functions.

The F3422 offers diagnostic coverage exceeding 99%, meeting SIL 3 functional safety requirements in accordance with IEC 61508. It operates reliably in ambient temperatures ranging from -40°C to +70°C and provides IP20 protection when installed in a suitable enclosure.

Specification：

Frequently asked questions

Q1: What is the HIMA F3422 8-Channel Relay Module used for?

A1: The HIMA F3422 8-Channel Relay Module is designed for safety-related control applications in industrial systems.

Q2: How many relay channels does the F3422 provide?

A2: The F3422 module features 8 independent relay output channels, allowing multiple field devices to be controlled simultaneously.

Q3: What is the maximum switching voltage supported by the F3422 module?

A3: The HIMA F3422 supports a switching voltage of up to 60 V AC/DC, making it suitable for a wide range of industrial control applications.

Q4: What is the F3422 maximum AC load capacity?

A4: The F3422 relay module can switch up to 240 VA for non-inductive AC loads, ensuring reliable operation in compatible control circuits.

Q5: What is the F3422 maximum DC load capacity?

A5: For non-inductive DC loads, the F3422 module supports up to 120 W, providing dependable switching performance for DC-powered devices.

Product Applications

Oil and Gas: Used for critical safety isolation and control loops in offshore drilling platforms and refineries.

Chemicals and Petrochemicals: Protects the production, reaction, and storage processes of hazardous chemicals to meet SIL (Safety Integrity Level) requirements.

Power Generation and Transmission: Ensures the safe operation of core power systems and transmission and transformation equipment in power plants.

Railway and Aerospace: Used for highly reliable signaling systems and control interfaces.
