Brand/Manufature:
HIMAProduct Origin:
GERMANYLead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:
CooDescription：

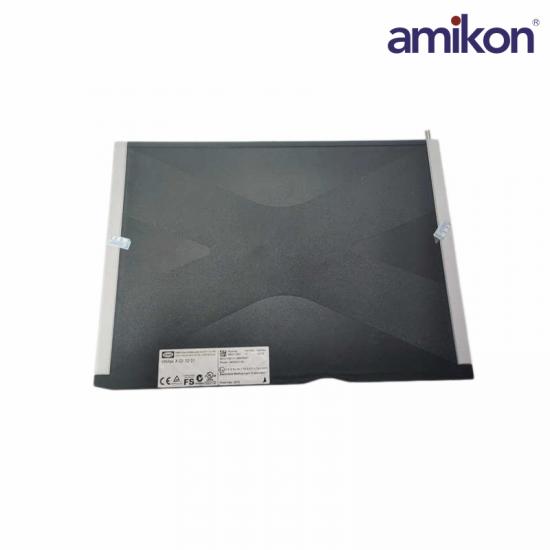

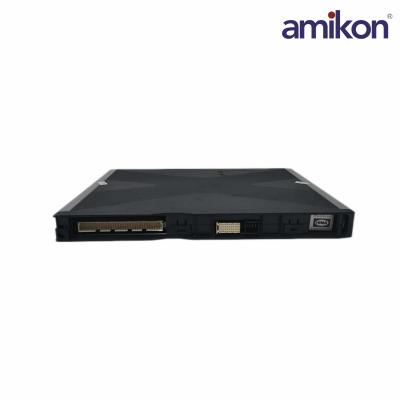

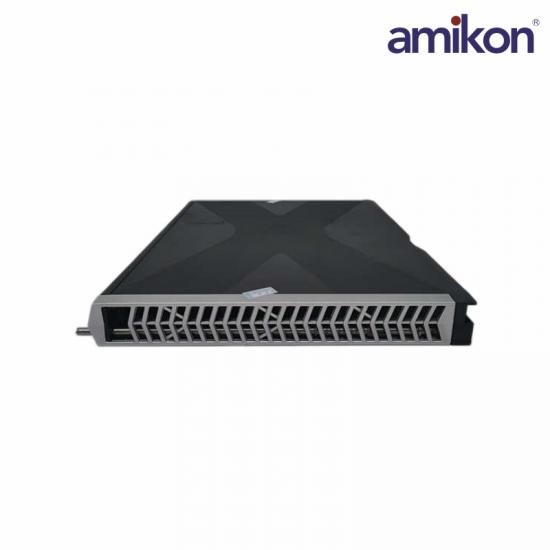

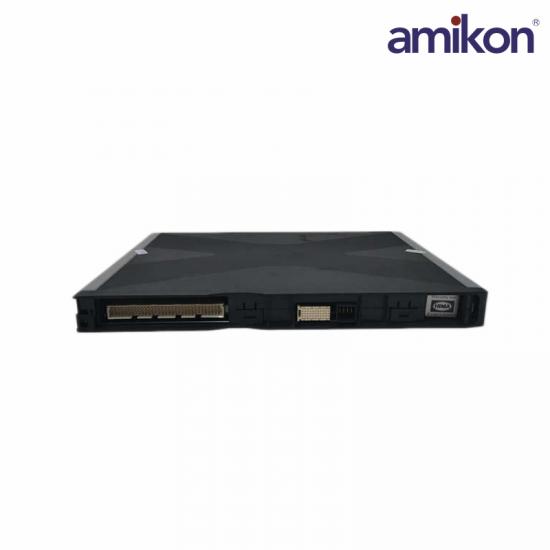

The HIMAX X-AO1601 standard module is an analog output module and it is intended for use in the programmable electronic system (PES) HIMax.
The module is equipped with 16 analog outputs with a nominal range from 4 mA to 20 mA.
The analog outputs are suitable for connecting ohmic, inductive and capacitive loads and lamps in accordance with EN 61131-2.
The outputs of the HIMAX X-AO1601 output module are non galvanically isolated and cannot therefore be redundantly connected. Use the safe HIMAX X-AO1601 output module to connect analog outputs redundantly.
Specification：
|
Model Number |
HIMAX X-AO1601 |
|
Nominal range |
4…20 mA |
|
Operating range |
0…22.5 mA |
|
Digital resolution |
16-bit (10 000 digits in SILworX) |
|
Value of LSB |
≤ 2 µA |
|
Ohmic load |
max. 600 Ω |
|
Inductive load |
max. 1 mH |
|
Capacitive load |
max. 100 µF in parallel to the ohmic load |
|
Settling time |
5 ms |
|
Shutdown time if a fault occurs |
16 ms |
|
Linearity error, max. |
≤ ± 0.1 % |
|
Safety-related accuracy |
≤ ± 2 % of final value |
|
Stripping length |
6 mm |
|
Screwdriver |
Slotted 0.4 x 2.5 mm |
|
Tightening torque |
0.2…0.25 Nm |
Frequently asked questions
Q1: What is the HIMA HIMAX X-AO1601?
A1: The X-AO1601 is an analog output module for HIMA HIMAX safety systems, designed to deliver precise current signals to actuators and field devices in safety-critical applications.
Q2: What is the X-AO1601 nominal output range?
A2: The X-AO1601 nominal output range is 4…20 mA, which is standard for industrial analog signal transmission.
Q3: What is the X-AO1601 operating range?
A3: The X-AO1601 module supports an extended operating range of 0…22.5 mA.
Q4: What is the X-AO1601 digital resolution?
A4: It features 16-bit resolution (10,000 digits in SILworX), ensuring high precision in signal output.
Q5: What is the X-AO1601 value of the least significant bit (LSB)?
A5: The LSB value is ≤ 2 µA, allowing fine-grained output adjustments.
Product Applications
Water & Wastewater:Used to control large pumps, the "Pump-Flex" deceleration function effectively eliminates "water hammer effect" and prevents pipeline damage.
Mining & Quarrying:Applied to crushers, conveyor belts and mills, it can provide the "Kick Start" (sudden start) function required for heavy-load starting, dealing with high initial torque loads.
Oil, Gas & Chemical:Used for large compressors, fans and injection pumps. Its explosion-proof (Explosion Proof) design is suitable for hazardous area environments.
Manufacturing & Heavy Industry:Controls large machine tools, mixers and various constant-speed AC motors on production lines.
