Infineon Power Semiconductor Modules

TD330N16KOF

Price and Availability Inquiry

The Infineon TD330N16KOF is a Thyristor-Diode Module designed for Power Semiconductor Modules applications.

Sales SupportDirect specialist contact

QuotationCurrent commercial details

DeliveryDHL · FedEx · UPS

Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist

WhatsApp +86 18965423501

Email sales7@amikon.cn

Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model TD330N16KOF and required quantity in your inquiry.

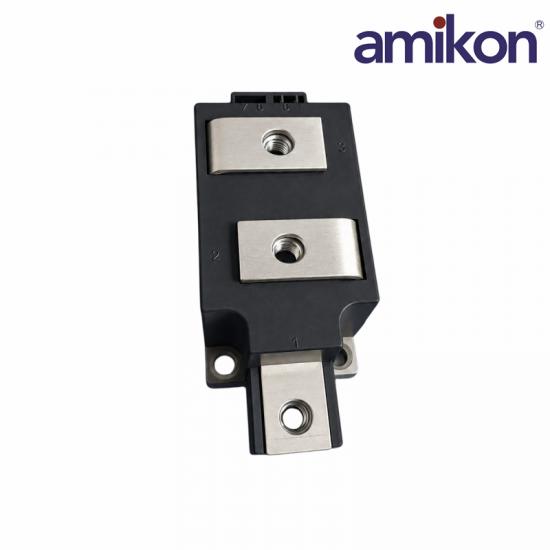

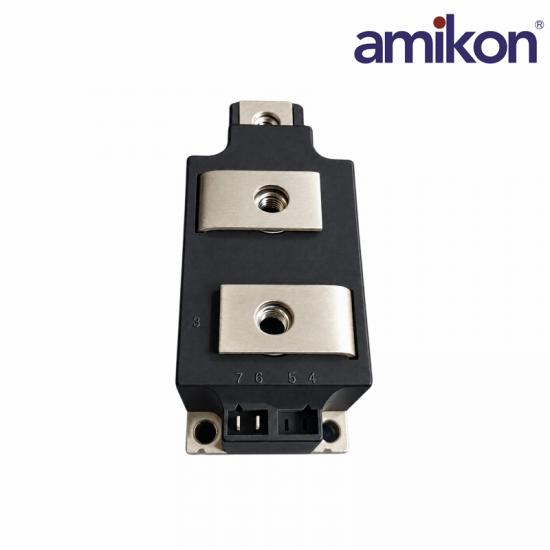

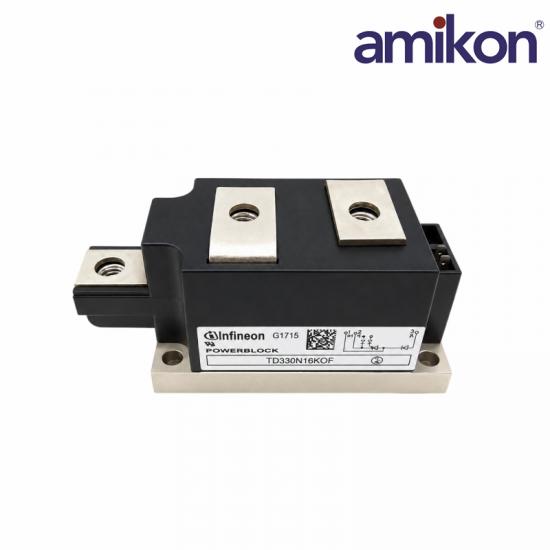

Infineon TD330N16KOF

Technical Specifications

Verified identification, performance, interface and application data for TD330N16KOF.

01Product IdentityExact product identification

ManufacturerInfineon

Order numberTD330N16KOF

Product designationThyristor-Diode Module

Product familyPower Semiconductor Modules

02Maximum RatingsPublished electrical limits

Blocking voltage VDRM / VRRM1600 V

Average current / case temperature330 A / 85 °C

Surge current at 10 ms10,000 A

Critical di/dt250 A/µs

03Electrical & Thermal DataPublished characteristic values

Threshold voltage VT00.8 V

Slope resistance rT0.5 mΩ

Thermal resistance RthJC0.112 K/W

Maximum junction temperature130 °C

04Package DataConstruction and compliance

Housing50 mm

Infineon packageBG-PB50AT-1

Circuit configurationSCR / Diode Phase Control

RoHS complianceYes

Infineon TD330N16KOF Product Support

Frequently Asked Questions

Product-specific configuration, compatibility, application and ordering guidance for TD330N16KOF.

What applications suit the TD330N16KOF?

It is a 1600 V, 330 A thyristor-diode phase-control module intended for industrial power control, including HVAC controls and general-purpose motor drives.

What must be matched when replacing this module?

Confirm the SCR-diode configuration, 1600 V blocking rating, 330 A average-current class, 50 mm Power Block housing and the exact TD330N16KOF order identity.

How should the module be installed?

Mount it on a suitable heat sink with a clean, flat interface and follow the equipment manufacturer’s clamping, terminal and thermal-interface instructions. The baseplate is electrically insulated.

Which performance values matter during design checks?

Infineon publishes a 10 kA surge-current rating at 10 ms, a maximum virtual junction temperature of 130 °C and a typical junction-to-case thermal resistance of 0.112 K/W for the stated conditions.

What should be checked before commissioning?

Verify polarity, gate connections, terminal tightness, insulation, cooling airflow and that protective devices match the converter design before energizing the power stage.

Can a different power module be used directly?

Do not substitute by voltage and current alone. Package dimensions, circuit configuration, gate characteristics, thermal data and mounting requirements must all be compatible.

What information is needed when ordering?

Provide TD330N16KOF, required quantity, converter application, voltage and current requirements, cooling arrangement and any request for the OPN or thermal-interface variant.
