Brand Name: INTRAACTION

Model Number: AQS-274AM1B3A1

Optical Wavelength: 1.06 μm

Anti-Reflection Coating Reflectance: < 0.05%

Optical Power Capability: 500 mW/cm²

Optical Rise Time: 110 ns/mm optical beam diameter

Static Optical Insertion Loss: 0.3%

Optimum Polarization: Perpendicular to mounting surface

Input Impedance / VSWR: 50 ohms / 1.25

RF Connector: BNC

Heat Exchange: Water cooled, 250 ml/min

Size (less connectors): 2.73 D × 1.50 H × 2.16 W inches

Center Frequency: 24 MHz

Beam Separation: 4.3 mrad

Active Aperture: 4 × 12 mm

Loss Efficiency: 40%

RF Drive Power: 10 watts

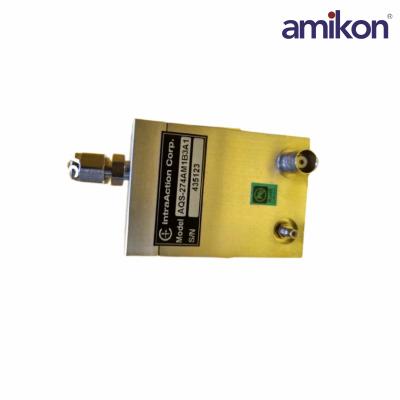

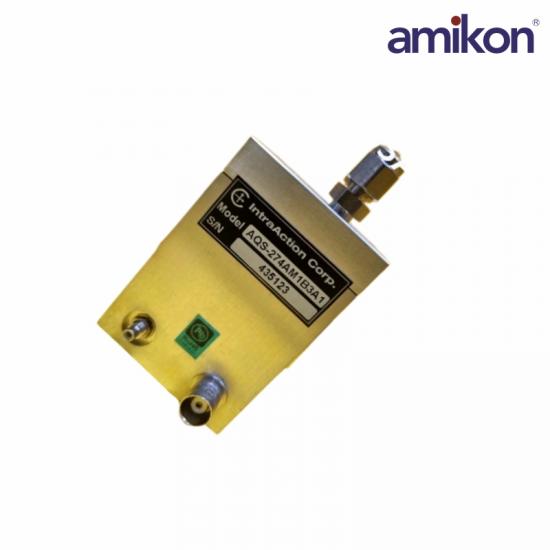

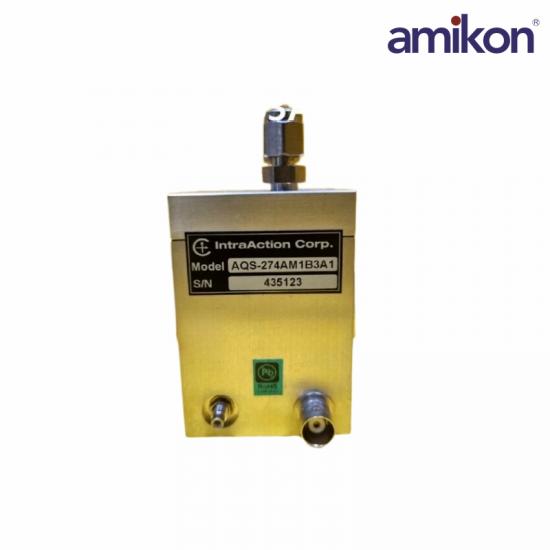

The INTRAACTION AQS-274AM1B3A1 is an industrial laser component part used in high-precision laser marking or laser processing systems. It is associated with IntraAction’s acousto-optic / Q-switch technology, which is commonly used to control and modulate pulsed laser beams in marking, engraving, or scientific applications. This part is typically a module/intermediate assembly used for laser beam switching, modulation, or integration into larger laser marker equipment. It may be sold individually as a replacement or spare unit for laser marker assemblies and often does not include all connection cables.
