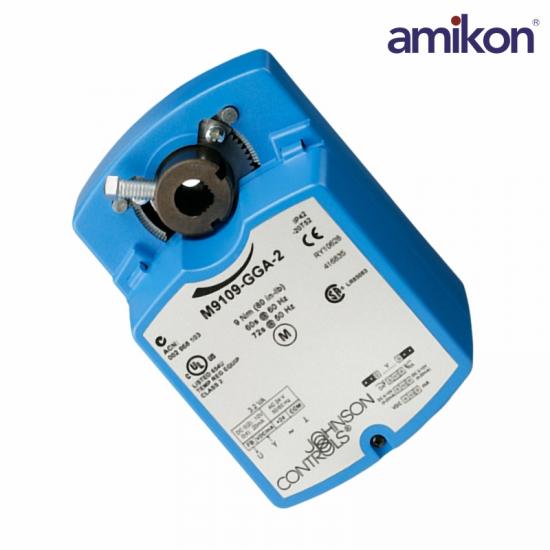

Manufacturer:JOHNSON

Model Number:M9109-GGA-2

Type: Return Actuators

Audible Noise Rating: 35 dBA maximum at 1 m

Rotation Range: Adjustable from 30° to 90° CW or CCW; mechanically limited to 93°

Rotation Time: Nominal 60 seconds at 60 Hz and 72 seconds at 50 Hz for 90°

Electrical Connection: 1/4 in. spade terminals (Optional pluggable terminal blocks are available)

Mechanical Connection: 3/8 to 1/2 in. (10 to 13 mm) round steel shaft or 3/8 in. (10 mm) square steel shaft

Enclosure: NEMA 2, IP32

Ambient Operating Conditions: -4 to 125°F (-20 to 52°C); 90% RH maximum, non-condensing

Ambient Storage Conditions: -40 to 176°F (-40 to 80°C); 90% RH maximum, non-condensing

Dimensions (H x W x D): 5.9 x 4.2 x 2.64 in. (150.1 x 106.5 x 67 mm)

Shipping Weight: 2.4 lb (1.08 kg)

Use this M9109 Series actuator only to control equipment under normal operating conditions. Where failure or malfunction of the M9109 actuator could lead to personal injury or property damage to the controlled equipment or other property, additional precautions must be designed into the control system. Incorporate and maintain other devices, such as supervisory or alarm systems or safety or limit controls, intended to warn of or protect against failure or malfunction of the M9109 actuator.

Utiliser ce M9109 Series actuator uniquement pour commander des équipements dans des conditions normales de fonctionnement. Lorsqu'une défaillance ou un dysfonctionnement du M9109 Series actuator risque de provoquer des blessures ou d'endommager l'équipement contrôlé ou un autre équipement, la conception du système de contrôle doit intégrer des dispositifs de protection supplémentaires. Veiller dans ce cas à intégrer de façon permanente d'autres dispositifs, tels que des systèmes de supervision ou d'alarme, ou des dispositifs de sécurité ou de limitation, ayant une fonction d'avertissement ou de protection en cas de défaillance ou de dysfonctionnement du M9109 Series actuator.
