Brand/Manufature:
JOPPICHProduct Origin:
USALead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:
Coo|

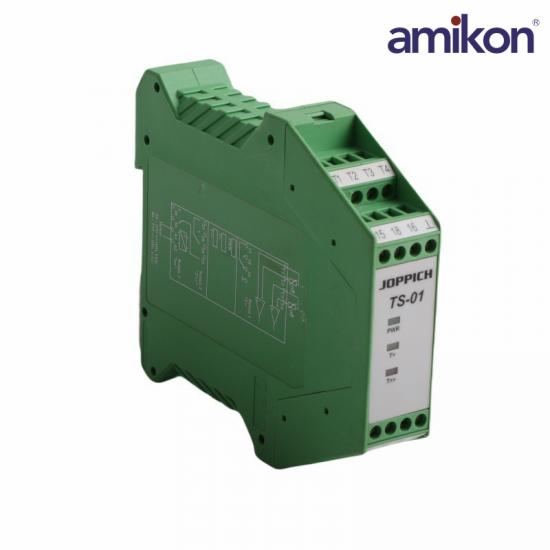

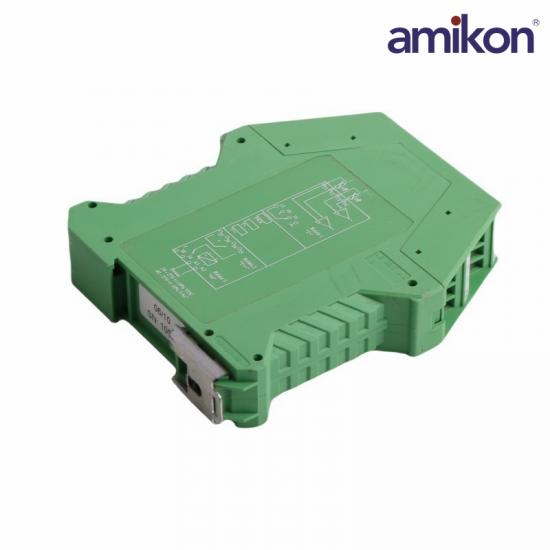

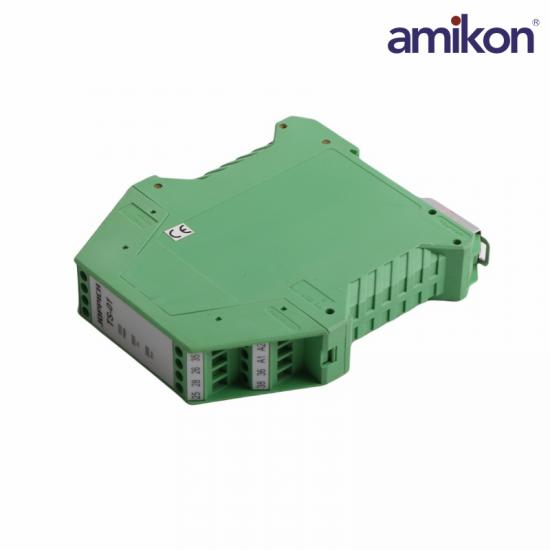

Manufacturer: JOPPICH |
|
Model:TS-01 |
|
Type:Temperature Monitoring Unit |
|
Power Supply: 24V - 270V ±10% DC, 40V - 270V ±10%, AC 50-60Hz |
|
Power Input: < 6VA or < 6W |
|
PTC Thermistor Connection: 2-wire connection |
|
Ambient Temperature: -10 ... +50°C |
|
Fault Recognition: Short circuit: 0 Ω – 15 Ω |
|
Measuring Range of PTC: 50 Ω – 50 kΩ |
|
Dimensions:2.2x11.4x9.8cm |
|
Weight:0.16kg |
The TS-01 Temperature Control Unit is used to monitor the temperature of equipment through PTCs, in accordance with DIN 44081/82 or DIN VDE 0660 Part 303.
An example of its application is temperature monitoring of a transformer used for energy distribution in the field of medium- and high-voltage systems.
Relays: Three relays are assigned to different measuring circuits.
Measuring Circuits & LEDs: The significance of the individual measuring circuits and the LEDs is explained in the following sections.
PTC Thermistors: The PTC thermistors should be designed such that the threshold temperature of the PTCs in the "temp. >" circuit is lower than that of the PTCs in the "temp. >>" circuit.
