Description：

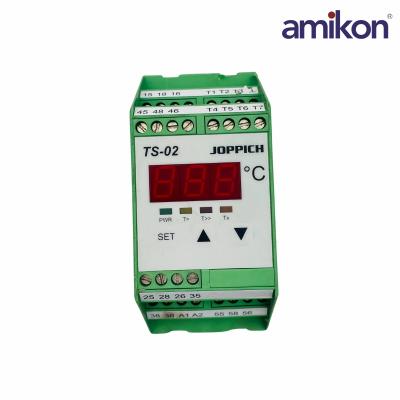

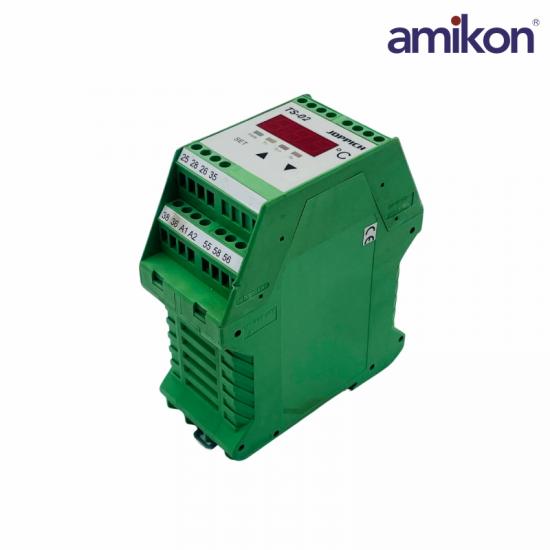

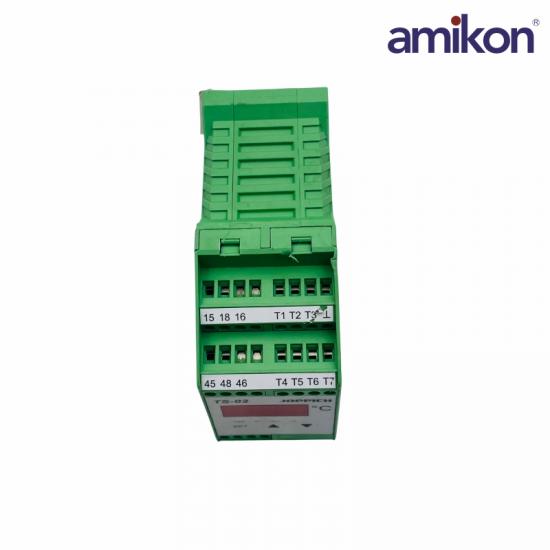

The TS-02 temperature monitoring unit is used to monitor the temperature of equipment bymeans of PTC thermistors in accordance with DIN 44081/82 or DIN VDE 0660 Part 303. Thetemperature is also monitored permanently via PT100 element.Attached is an example of temperature monitoring of a transformer used for energydistribution in the field of medium-voltage and high-voltage systems.

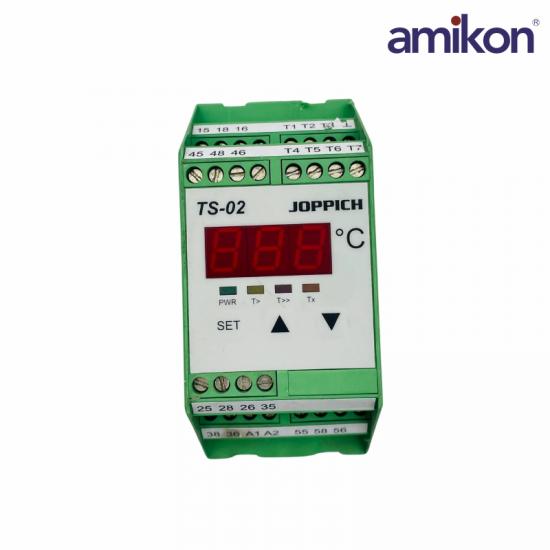

The user is informed of the temperature via a 3-digit 7-segment display. The user is further onnotified of the corresponding temperature and the state of the TS-02 via four LEDs in thefront panel. Four relays are related to the different measuring circuits. The significance of theindividual measuring circuits and the LEDs can be found in the following sections.

Specification：

Frequently asked questions

1. What is the main function of the JOPPICH TS-02 unit?

The TS-02 monitors equipment temperature and provides alarm or protection functions when abnormal temperature conditions occur.

2. Does the unit support alarm outputs?

Yes. The TS-02 supports alarm and trip output functions for overtemperature protection.

3. Why is temperature monitoring important in industrial systems?

Temperature monitoring helps prevent overheating, equipment damage, unplanned downtime, and safety risks.

4. Is the TS-02 suitable for continuous industrial operation?

Yes. The unit is intended for continuous 24/7 industrial monitoring applications.

Product Applications

Power generation industry

Petrochemical industry

Manufacturing industry
