KEYENCE GT2 SERIES

GT2-H32

Price and Availability Inquiry

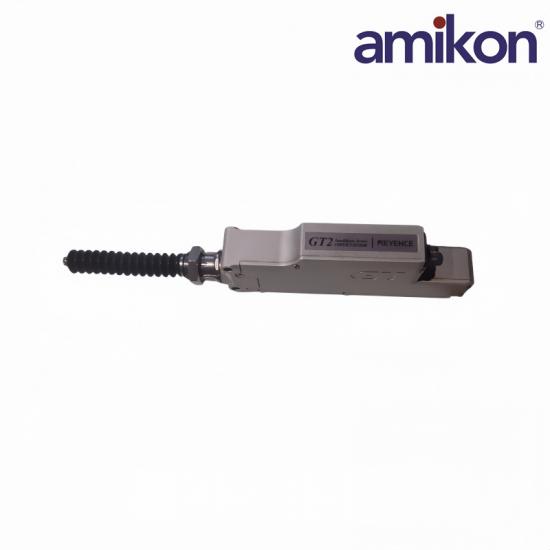

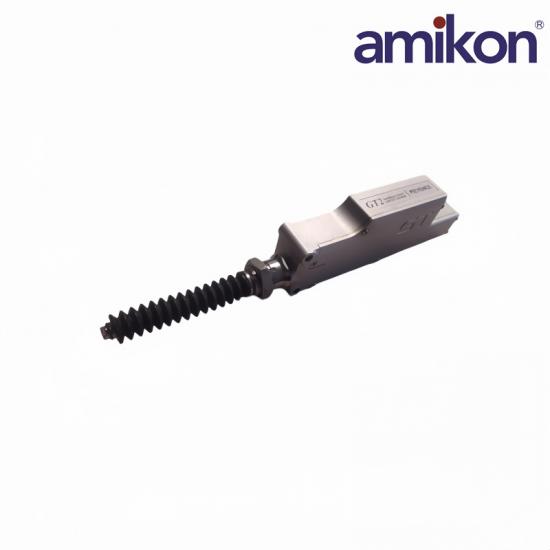

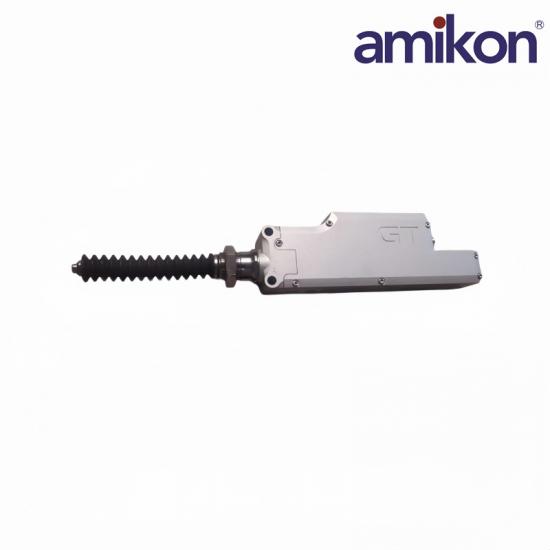

The KEYENCE GT2-H32 is a GT2 Series high-accuracy digital contact sensor head with a 32 mm measuring range, 0.5 μm resolution and absolute quartz-glass-scale detection.

Sales SupportDirect specialist contact

QuotationCurrent commercial details

DeliveryDHL · FedEx · UPS

Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist

WhatsApp +86 18965423501

Email sales7@amikon.cn

Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model GT2-H32 and required quantity in your inquiry.

KEYENCE GT2-H32

Technical Specifications

Official KEYENCE measurement, interface and environmental data for the GT2-H32 sensor head.

01Product IdentityCore product information

ManufacturerKEYENCE

ModelGT2-H32

Product typeHigh-Accuracy Digital Contact Sensor Head

Product familyGT2 Series

02Measurement PerformanceOfficial measuring specifications

Measuring range32 mm (1.26 in)

Resolution0.5 μm (0.02 mil)

Indicated accuracy3 μm (p-p) at 20 °C

Detection systemQuartz-glass scale, CMOS projection, absolute

03Operating CharacteristicsOrientation and timing data

Measuring force2.1 N downward

Measuring force1.8 N side

Measuring force1.5 N upward

Sampling / response1 ms sampling; 6 Hz response at 20 °C

04Interface & EnvironmentConnection and environmental limits

Sensor head cableOptional cable; M8 connector

Operation indicator2-color LED (red, green)

Enclosure ratingIP67

Ambient / humidity−10 to +55 °C; 35–85% RH

KEYENCE GT2-H32 Product Support

Frequently Asked Questions

Practical compatibility, installation, measurement and ordering guidance for GT2-H32.

How does the absolute detection system support stable position measurement?

The quartz-glass scale and CMOS image-sensor projection form an absolute detection system specified without tracking errors.

Which measuring range, resolution and accuracy apply to GT2-H32?

The official measuring range is 32 mm, with 0.5 μm resolution and 3 μm peak-to-peak indicated accuracy at 20 °C.

How does installation orientation change the measuring force?

Representative force at the measuring-range center is 2.1 N downward, 1.8 N sideways and 1.5 N upward.

Which sensor-head cable connection should be selected?

Use the optional sensor-head cable that connects to the GT2-H32 M8 connector, and confirm the compatible GT2 controller before commissioning.

Which environmental limits should be checked before installation?

Maintain −10 to +55 °C with no freezing, 35 to 85% RH with no condensation, and protect the installation from vibration beyond the published limits.

How should the dust boot be considered during setup?

Measuring force varies with the installation state of the NBR dust boot, so verify the actual setup before precision measurements.

Which information should accompany a GT2-H32 order?

Provide GT2-H32, required quantity, controller model, sensor-head cable length, contact requirement and installation orientation.
