Description：

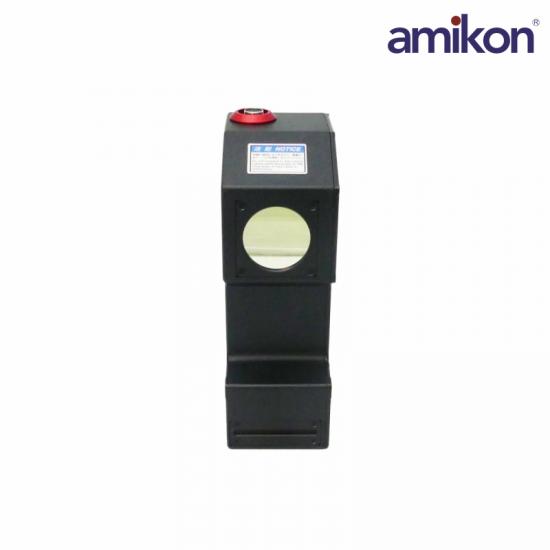

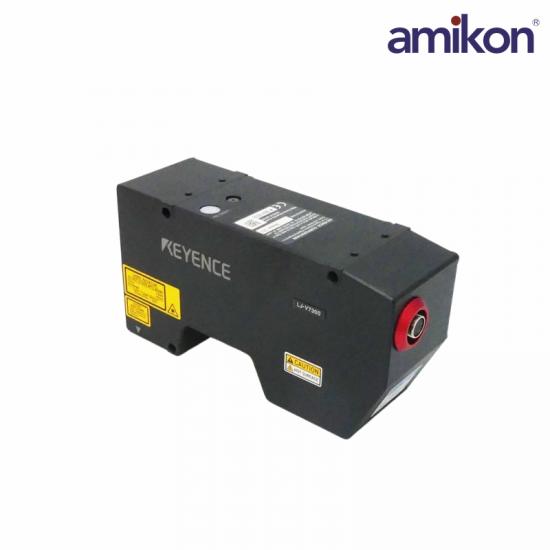

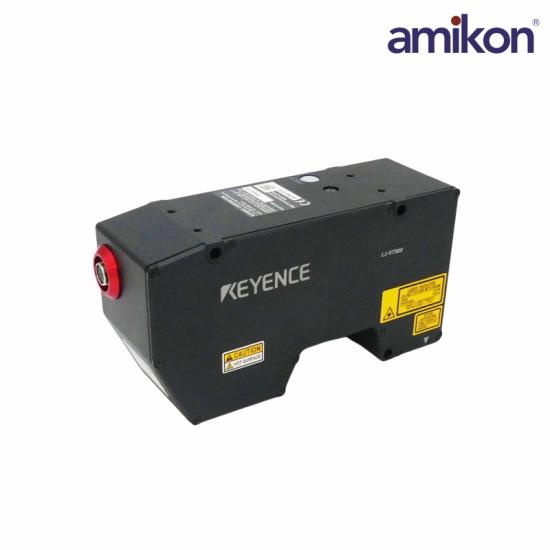

The KEYENCE LJ-V7300 is a high-performance 2D/3D laser profile sensor engineered for precision measurement, inspection, and dimensional analysis in industrial environments. Utilizing advanced blue semiconductor laser technology (405 nm) and diffuse reflection measurement, the sensor delivers exceptional accuracy and stability when measuring complex surfaces, edges, profiles, and height variations.
With a 300 mm reference distance and a wide ±145 mm measurement range, the LJ-V7300 is capable of capturing detailed profile data across large inspection areas while maintaining a repeatability of up to 5 μm on the Z-axis. The sensor's high-speed sampling capability of 16 μs allows it to perform real-time measurements on fast-moving production lines, making it ideal for automated quality control applications.
Specification：
|
Model |
LJ-V7300 |
|
Reference Distance |
300 mm (11.81 in) |
|
Z-axis Measurement Range |
±145 mm (Full Scale total: 290 mm) |
|
Light Source |
Blue Semiconductor Laser |
|
Wavelength |
405 nm (Visible Beam) |
|
Laser Class |
Class 2 |
|
Laser Output Power |
4.8 mW |
|
Spot Size @ Reference Distance |
Approx. 240 μm × 610 μm |
|
Z-axis Repeatability |
5 μm |
|
X-axis Repeatability |
60 μm |
|
Z-axis Linearity |
±0.05% ~ ±0.15% F.S. |
|
Profile Data Interval |
300 μm |
|
Operating Temperature |
0°C ~ +45°C |
|
Relative Humidity |
≤85% RH, non-condensing |
|
Vibration Resistance |
10–57 Hz, double amplitude 1.5 mm |
|
Shock Resistance |
15 G, duration 6 ms |
Frequently asked questions
Q1: What is the KEYENCE LJ-V7300 Laser Scanner used for?
A1: The KEYENCE LJ-V7300 is a high-speed laser profile scanner used for 3D measurement, dimensional inspection, surface profiling, and quality control in industrial applications.
Q2: What is the X-axis repeatability of the LJ-V7300?
A2: The LJ-V7300 scanner provides an X-axis repeatability of 60 μm, ensuring consistent measurement accuracy.
Q3: What is the LJ-V7300 Z-axis linearity specification?
A3: The LJ-V7300 Z-axis linearity ranges from ±0.05% to ±0.15% of full scale (F.S.), depending on the measurement conditions.
Q4: What is the profile data interval of the LJ-V7300 scanner?
A4: The LJ-V7300 profile data interval is 300 μm, enabling detailed surface and dimensional analysis.
Q5: What is the operating temperature range of the LJ-V7300?
A5: The LJ-V7300 scanner operates within a temperature range of 0°C to +45°C.
Product Applications
Weld bead inspection
Battery manufacturing
Semiconductor inspection
Robotic guidance systems
Automotive production lines
Electronic component verification
