KEYENCE · LJ-X8000 SERIES

LJ-X8080

Price and Availability Inquiry

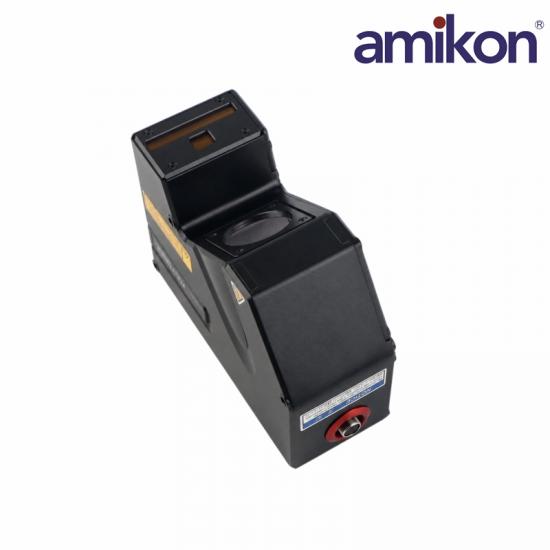

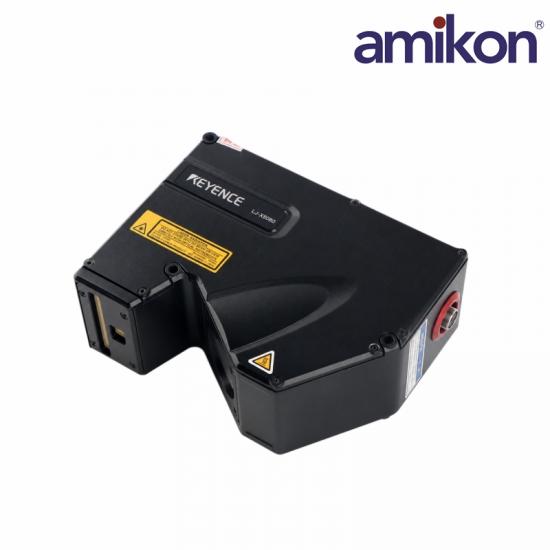

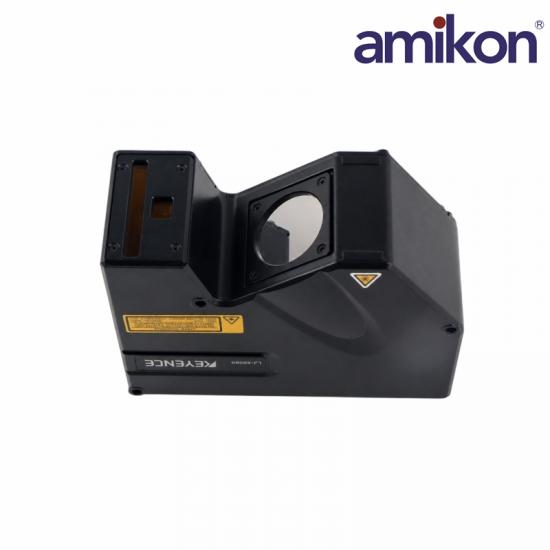

The KEYENCE LJ-X8080 is an LJ-X8000 Series 2D/3D laser profiler sensor head with a 73 mm reference distance, 41 mm full-scale Z range and 3,200 profile points.

Sales SupportDirect specialist contact

QuotationCurrent commercial details

DeliveryDHL · FedEx · UPS

Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist

WhatsApp +86 18965423501

Email sales7@amikon.cn

Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model LJ-X8080 and required quantity in your inquiry.

KEYENCE LJ-X8080

Technical Specifications

Official KEYENCE optical, measurement, profile and environmental specifications for the LJ-X8080 sensor head.

01Product IdentityExact model identification

ManufacturerKEYENCE

ModelLJ-X8080

Product type2D/3D laser profiler sensor head

Product familyLJ-X8000 Series

02Measurement GeometryOfficial measuring ranges

Reference distance73 mm (2.87 in)

Z-axis range±20.5 mm; F.S. 41 mm

X-axis width30 / 35 / 39 mm near / reference / far

Profile data count3,200 points

03Optical & PerformancePublished head specifications

Light source405 nm blue semiconductor laser

Laser classClass 2M

Output10 mW

RepeatabilityZ: 0.5 μm; X: 1 μm

04Environment & IntegrationInstallation conditions

Enclosure ratingIP67 with specified head cable connected

Ambient temperature0 to +45 °C

Relative humidity85% RH or less, no condensation

WeightApprox. 1,100 g (2.43 lb)

KEYENCE LJ-X8080 Product Support

Frequently Asked Questions

Practical measurement, controller compatibility, installation and ordering guidance for LJ-X8080.

Which measurement range applies to LJ-X8080?

The head uses a 73 mm reference distance, a ±20.5 mm Z range and X-axis widths of 30, 35 and 39 mm at the near, reference and far positions.

How much profile data does one scan contain?

The official specification lists 3,200 profile points, with a nominal 12.5 μm X-axis data interval under the stated conditions.

What laser source and safety class are used?

LJ-X8080 uses a visible 405 nm blue semiconductor laser rated as Class 2M; follow the official laser-safety instructions.

Which controller should be selected?

Use a controller officially compatible with LJ-X8000 Series heads, such as the supported LJ-X8000 controller family, and verify firmware and head-count requirements.

When does the IP67 rating apply?

IP67 applies when the specified KEYENCE head cable is connected; it does not apply to every possible cable arrangement.

What mounting condition is required for temperature performance?

KEYENCE specifies that the head must be mounted to a metal plate when used within the stated 0 to +45 °C ambient range.

Which information should accompany an LJ-X8080 order?

Provide LJ-X8080, quantity, controller model, required head-cable length, measurement range and installation environment.
