English
Brand/Manufature:
KONGSBERGProduct Origin:
USALead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:
Coo|
Category |
Attribute |
Details |
|
Performance |
Application Dependent |
Governed by process complexity, updating frequency, and number of interfaced I/O |
|
Maximum Updating Frequency |
50 Hz |
|
|
Configuration Guidelines |
ESD/PSD: max. 800 I/O at scan rate 1 Hz, F&G: max. 700 I/O at scan rate 1 Hz, Process: max. 2000 I/O, Design advice: 1280 I/O at scan rate 1 Hz, Anti-surge: 3 loops, Scan rate 50 Hz |
|
|
Power |
Input Supply Voltage |
24 VDC (+30%, -25%) |
|
Nominal Current Consumption |
≈ 0.8 A |
|
|
Start-up Current |
Max. 2.7 A |
|
|
Power Consumption |
Max. 20 W |
|
|
Heat Dissipation |
Max. 20 W |
|
|
Power Connectors |
Cable cross-section: 2.5 mm² |
|
|
Environmental |
Operating Temperature |
-15˚C to 70˚C |
|
Storage Temperature |
-25˚C to 70˚C |
|
|
Humidity (Operation) |
Up to 98% RH |
|
|
Humidity (Storage) |
Up to 98% RH |
|
|
Protection Standards |
IP 20 |
|
|
Physical |
Dimensions (H x W x D) |
355 mm x 158 mm x 87 mm |
|
Weight |
1.35 kg |

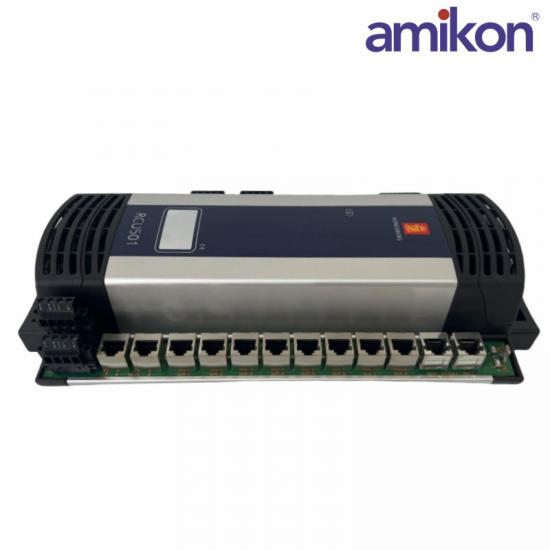

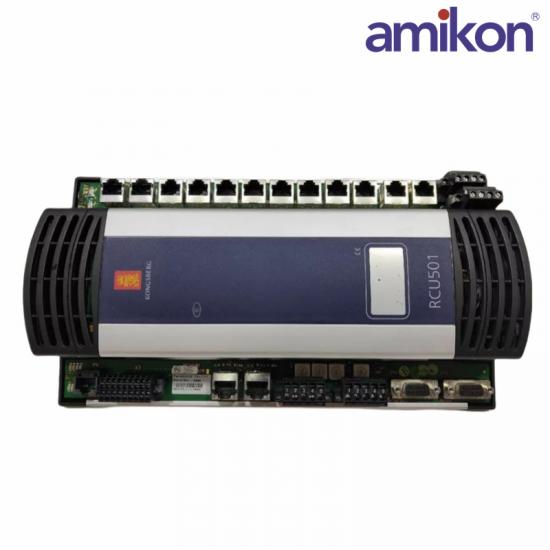

RCU501 is a high performance, general purpose, real-time process control computer for use in a wide variety of system applications in both on- and offshore installations.
The RCU501 processor core is an embedded Power PC™ architecture and the module is approved for Ex Zone 2 applications.
• Dynamic Positioning Systems
• Thruster Control / Steering Systems
• Navigation Sensor Integrator
• Integrated Process Control Systems
• Alarm and monitoring Systems
• Safety Systems
RCU501 Function
Dual ethernet LAN process networks
Dual RedundancyNet interface for redundant RCU confi guration
Dual Remote IO process BUS (RBUS)
4 general purpose Digital Input channels
4 general purpose Digital Output channels
32 serial lines for 3rd party interface
2 PROFIBUS channels for 3rd party interface
2 CANBUS channels for 3rd party interface
