Brand/Manufature:
KONGSBERGProduct Origin:
USALead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:
Coo|
Category |
Attribute |
Details |
|
Power |
Input Supply Voltage |
24 VDC (18-31.2 V) |
|
Power Consumption |
8 W (Typical) |
|
|
Cable Cross-section |
2.5 mm² |
|
|
Max. Torque |
0.4-0.5 Nm |
|
|
Interface |
RBUS Interface |
RS485, galvanically isolated |
|
Connector |
2 x 9 pin male D-Sub |
|
|
I/O Configuration |
Number of I/O Channels |
32 |
|
I/O Configuration |
16 solid-state channels, configurable as input/output |
|
|
16 relay channels (NC/NO) |
||
|
DC Load |
15-300 VDC, min. 100 mA, max. 5 A at Cos φ = 1 |
|
|
AC Load |
15-250 VAC, max. 2 A at Cos φ = 0.4 |
|
|
Breaking Capability |
0.1 A: 300 V, 0.3 A: 60 V, 5 A: 24 V |
|
|
Digital Input (DI) |
Loop Voltage |
Input supply voltage |
|
Input Loop Current |
Max. 4 mA @ 24 VDC |
|
|
Channel "Off" Current |
< 0.5 mA |
|
|
Channel "On" Current |
> 3 mA |
|
|
Max. Input Voltage |
Input supply voltage |
|
|
Max. Input Signal Frequency |
10 ms pulses |
|
|
Digital Output (DO) |
Loop Voltage |
Input supply voltage |
|
Loop Output |
1 A, short-circuit protected "High Side Driver" |
|
|
Loop Driver Trip Current |
> 1.4 A (reset by command) |
|
|
Loop Monitor Current |
Max. 2 mA @ 24 VDC |

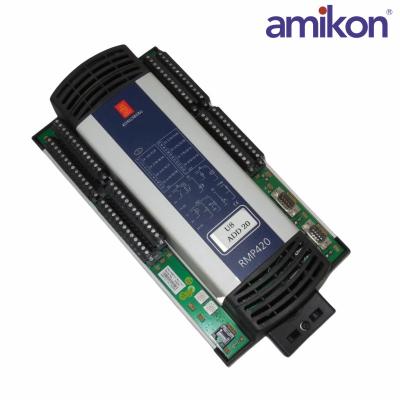

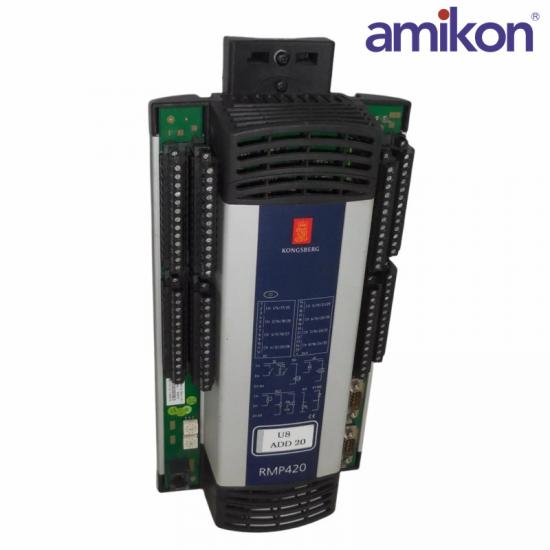

RDIOR420 is a combined I/O module containing 16 solid-state DI/DO and 16 relay channels for use in KM systems.
The 32 I/O channels are interfaced towards the host control computer (RCU) by a redundant I/O process bus.
