Description：

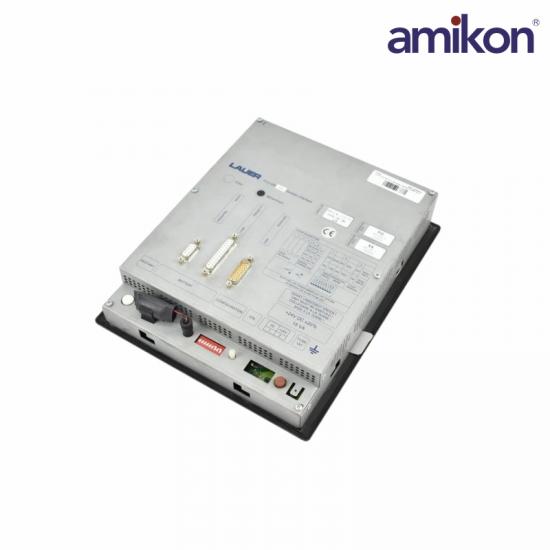

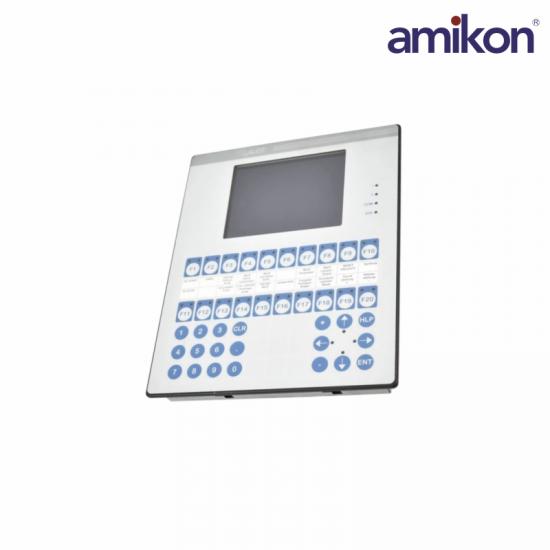

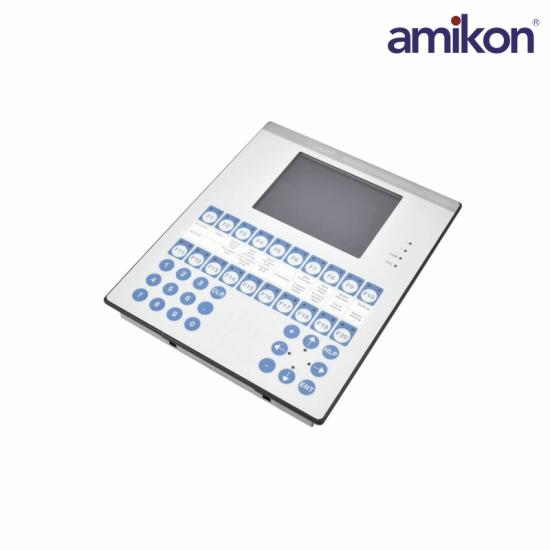

The Lauer PCS 950 WIN  MPI/Profibus-DP is a robust, monochrome operator panel (HMI) designed for industrial applications, commonly used to interface with Siemens S7/S5 PLCs. It features a graphical LCD display, mechanical pushbuttons, and supports PROFIBUS DP and MPI protocols, often found in vintage or specialized setups.

Specification：

Frequently asked questions

Q1: What is the LAUER PCS 950 WIN Operator Panel?

A1: It is an industrial operator panel (HMI) designed for monitoring and controlling systems, supporting MPI and Profibus-DP communication protocols.

Q2: What type of display does it use?

A2: It features a monochrome graphic LCD with a resolution of 24 lines × 40 characters, suitable for clear text-based operation and system visualization.

Q3: What is the PCS 950 WIN  MPI/Profibus-DP protection class of this panel?

A3: The front panel is rated IP65 when properly installed, providing protection against dust and water ingress.

Q4: What is the PCS 950 WIN  MPI/Profibus-DP supply voltage requirement?

A4: It operates on +24 V DC with a tolerance of ±20%, ensuring compatibility with standard industrial power systems.

Q5: What communication protocols are supported?

A5: The PCS 950 WIN  MPI/Profibus-DP panel supports MPI and Profibus-DP, enabling integration with PLCs and industrial networks.

Product Applications

Chemical and Petrochemicals: Parameter monitoring for reaction vessels, distillation towers, and storage tank areas, handling a large amount of cyclic data from sensors and actuators.

Water Treatment and Environmental Protection: Pump station control, level monitoring, data collection and remote transmission for water plants and sewage treatment plants.

Pharmaceuticals and Food and Beverage: Precise process control, production lines in line with food and drug safety regulations.

Automotive Manufacturing: Used in assembly lines, painting lines, and conveying systems, PROFIBUS DP enables real-time data transmission at each workstation.

Metallurgy and Mining: Control of heavy equipment such as steel furnaces, rolling mills, and elevators, utilizing the anti-interference capability of PROFIBUS to adapt to harsh environments.

Power and Energy: Auxiliary control systems (ECS) for power plants, and distribution monitoring.
