Brand/Manufature:
LittelfuseProduct Origin:
USALead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:
CooInput Voltage: 65–265 V AC, 25 VA; 80–275 V DC, 25 W
Power-Up Time: 800 ms at 120 V AC
Ride-Through Time: 100 ms minimum
24 VDC Source: 100 mA maximum
AC Measurements:
True RMS and DFT, Peak, 16 samples/cycle, positive and negative sequence of fundamental
Frequency: 50 Hz, 60 Hz, or ASD
Output Contacts: Three Form C, programmable
Communications:
TIA-232 (standard); TIA-485, DeviceNet™, Ethernet (optional)
Analog Output: 4–20 mA, programmable
Control Unit Mounting: Panel (standard), Surface (with MPU-32-SMK converter kit)
Current Input Module Mounting: DIN, Surface

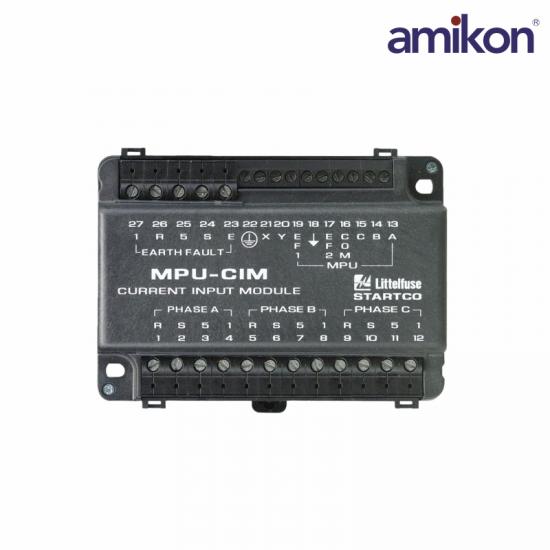

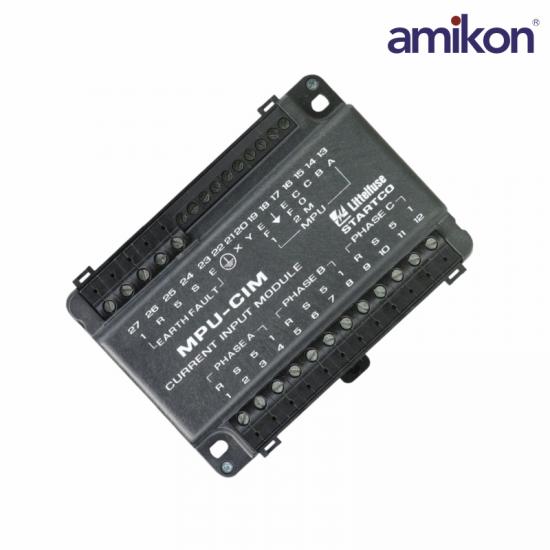

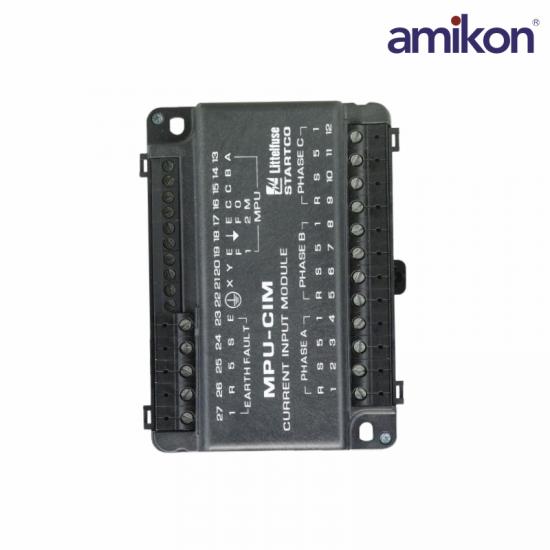

The MPU-32 series lotor Protection Unit is used to provide current and temperature-based protection, metering, and data.ogging for three-phase, low-voltage, medium-horsepower induction motors. This relay is ideal for retrofitting and upgradingobsolete or aging motor protection using existing CTs. The MPU-32 can be programmed using the front.panel operatorinterface, the TlA-232 port, or an optional communications network. See the PA Family of Panel ount Adapter Kits toreplace common obsolete relays.
