LTI Motion ServoOne Drive Controllers

SO84.032.0003.0101.2

Price and Availability Inquiry

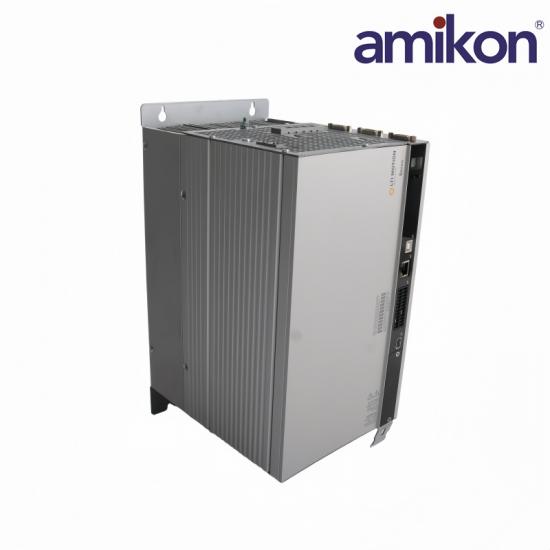

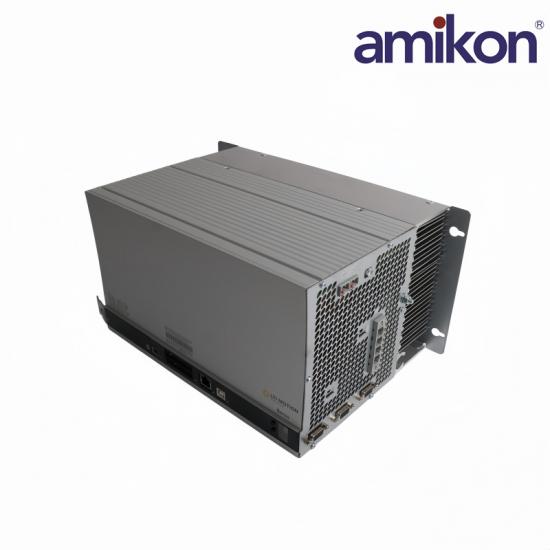

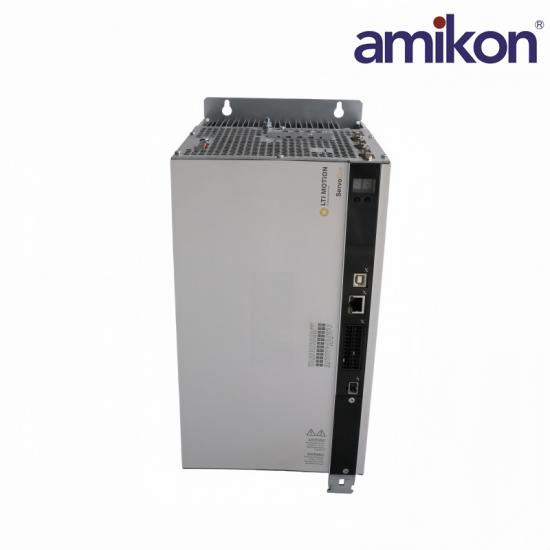

The SO84.032.0003.0101.2 is a BG4 air-cooled single-axis servo drive with 32 A rated output, multi-voltage three-phase mains input and an integrated braking-resistor design.

Sales SupportDirect specialist contact

QuotationCurrent commercial details

DeliveryDHL · FedEx · UPS

Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist

WhatsApp +86 18965423501

Email sales7@amikon.cn

Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model SO84.032.0003.0101.2 and required quantity in your inquiry.

SO84.032.0003.0101.2

Technical Specifications

Official identification, electrical, interface, installation and ordering data for the SO84.032.0003.0101.2 32 a servoone single-axis drive controller.

01Product IdentityOfficial model identification

ManufacturerLTI Motion

Article NumberSO84.032.0003.0101.2

Product Designation32 A ServoOne Single-Axis Drive Controller

Product FamilyServoOne Drive Controllers

02Output RatingsPublished SO84.032 motor-side data

RATED CURRENT32 A effective

PEAK CURRENT64 A at 4 kHz

OUTPUT FREQUENCY0 to 400 Hz

SWITCHING FREQUENCY4, 8, 12 or 16 kHz

03Mains & PowerThree-phase supply data

MAINS VOLTAGE230/400/460/480 V AC ±10%

MAINS FREQUENCY50/60 Hz ±10%

CONNECTED LOAD22.2 kVA at 400 V

INPUT CURRENT34.9 A with mains choke

04Mechanical & BrakingBG4 installation data

FRAME SIZEBG4

DIMENSIONS175 × 295 × 224 mm

COOLINGAir cooled

BRAKING DESIGNIntegrated braking resistor

SO84.032.0003.0101.2 Product Support

Frequently Asked Questions

Product-specific compatibility, application, installation, commissioning and ordering guidance for SO84.032.0003.0101.2.

Which continuous output current is specified for SO84.032?

The published rated output is 32 A effective; at 4 kHz the peak current is 64 A for the permitted overload interval.

Which mains systems can supply this drive?

The controller supports three-phase 230, 400, 460 or 480 V AC supplies within ±10%, subject to the approved installation configuration.

How does switching frequency affect current capability?

Available output current is derated as switching frequency rises, so the 4, 8, 12 or 16 kHz setting must be checked against the motor load and ambient conditions.

Which mains-side sizing data should engineers use?

At 400 V with the specified mains choke, the published connected load is 22.2 kVA and input current is approximately 34.9 A.

Can an external braking resistor be added to this configuration?

The 0101 design uses an integrated braking resistor; the manual states that an additional external resistor must not be connected to this version.

Which cabinet space is required?

The BG4 enclosure is approximately 175 mm wide, 295 mm high and 224 mm deep excluding terminals; preserve the manual's ventilation clearances.

Which replacement details must be verified?

Match the complete suffix, mains voltage, motor feedback, fieldbus option, safety configuration, braking design and parameter backup.
