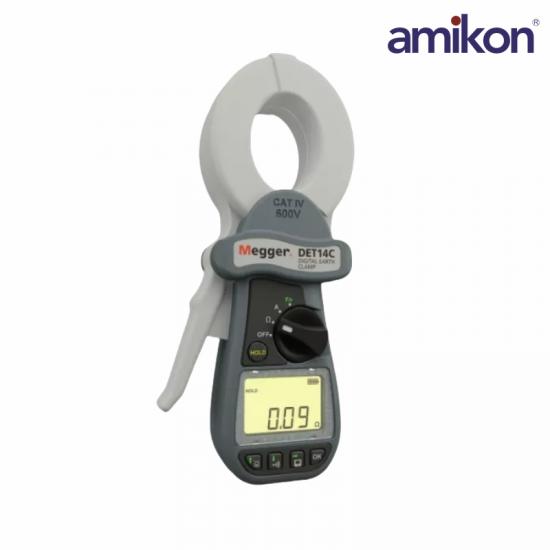

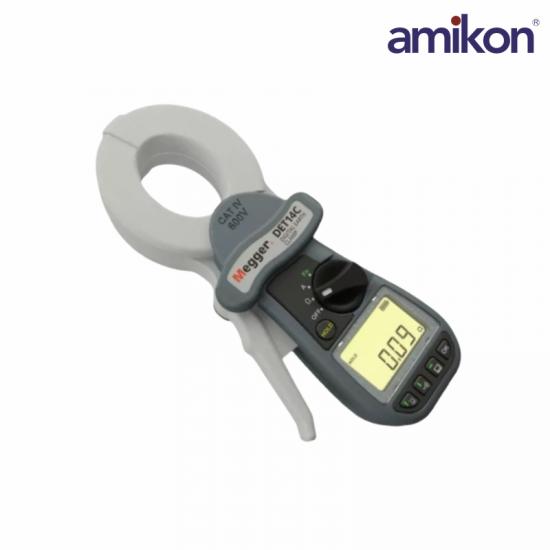

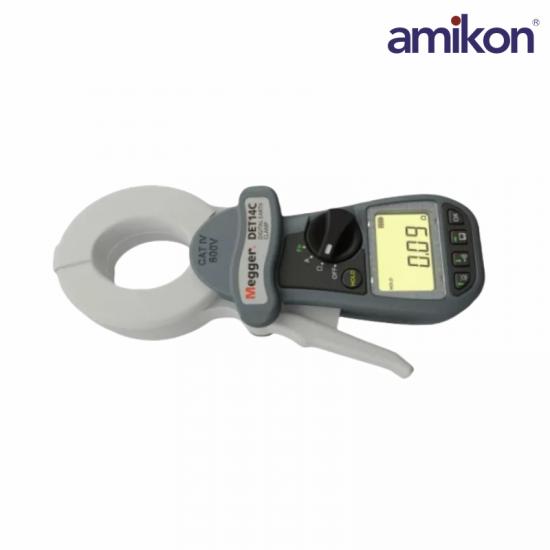

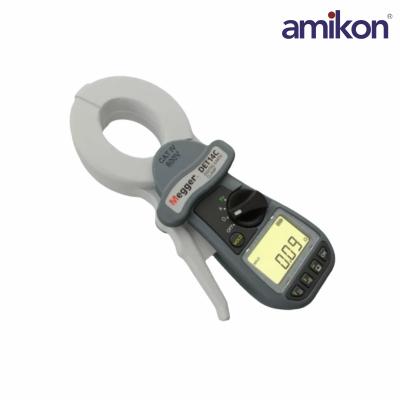

Manufacturer: Megger

Product Number :DET14C

Product Type: Digital earth clamp testers

Measurement Range:

Earth Resistance: 0.01 Ω to 1500 Ω

Continuity: 0.01 Ω to 30 Ω

Display: Digital LCD screen with backlight

Measurement Methods:

Earth resistance measurement (clamp-on method)

Continuity testing for earth bond

Accuracy:

Earth resistance: ±2% of reading ±0.01 Ω

Continuity: ±2% of reading ±0.01 Ω

Power Supply:

Battery: 6 x 1.5V AA alkaline batteries

Battery life: Approximately 50 hours of continuous use

Operating Temperature: -10°C to +50°C

Storage Temperature: -20°C to +60°C

Humidity Range: 0% to 90% RH (non-condensing)

The DET14C and DET24C digital earth clamps represent a new generation of clamp-on resistance testers. These instruments induce a test current into earth systems and measure ground resistance in multi-ground installations without needing to disconnect the ground. They offer market leading access, advanced features, simple operation, and CAT IV 600 V safety protection.

The DET14C and DET24C also offer a true RMS AC current measurement facility up to 35 Amps. The instrument’s ability to measure current flowing in an earth cable is a useful safety feature, especially if the earth cable has to be disconnected.

The elliptical shaped head design offers improved access to cables and earth straps in space constrained locations. The clamp head accommodates up to 37 mm diameter cable and 50 mm earth tapes making them suitable for use in power stations, substations, towers, and many other facilities.

The DET14C can store results for later on-screen recall and with the DET24C, you can download results via Bluetooth® into PowerDB or PowerDB Lite (Megger’s acceptance and maintenance test data management software). Stored data is indexed using a sequential serial number together with a time and date stamp for each record.
