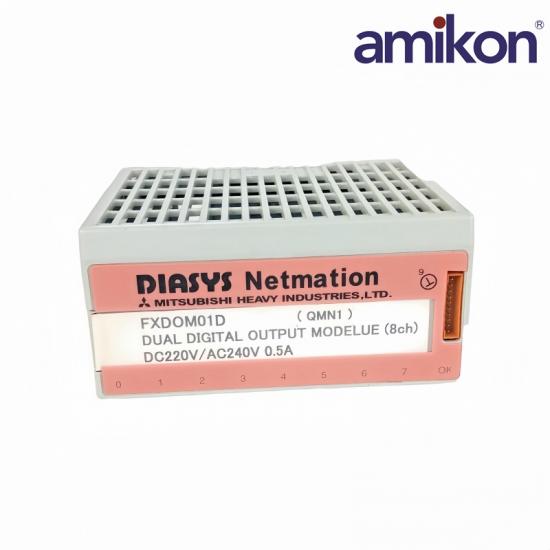

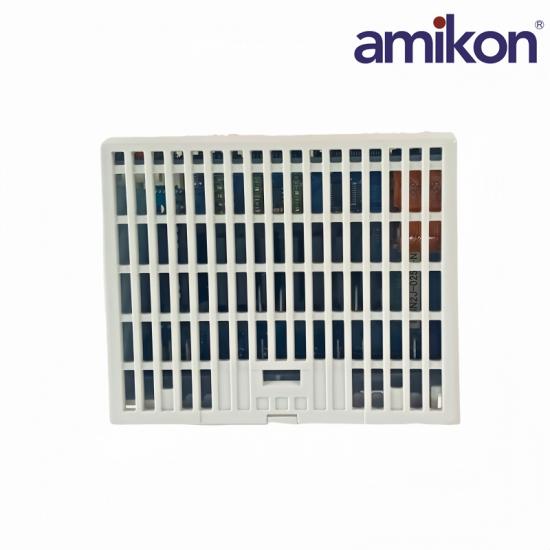

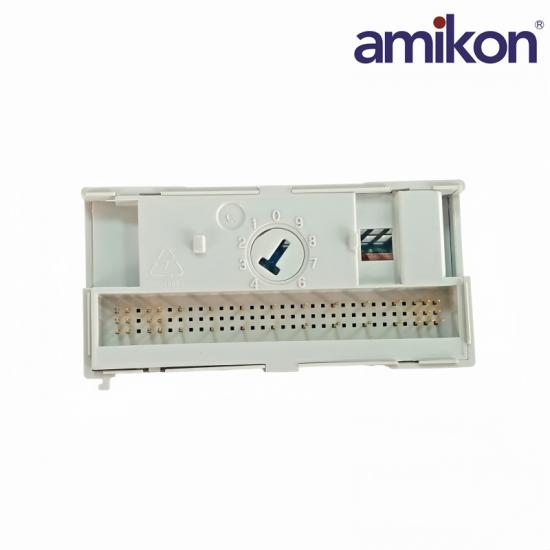

Mitsubishi Hitachi Power Systems FXDOM01

Technical Specifications

Verified identification, electrical, interface, performance and installation parameters for FXDOM01.

01Product IdentityExact product identification

ManufacturerMitsubishi Hitachi Power Systems

ModelFXDOM01

Product designationDigital Output Module

Product familyDIASYS control system

02Output DataOutput Data parameters

Number of outputs8

Contact typeMOSFET N.O. PhotoMOS relay

Output with TB3120 V AC/DC, 0.5 A

Output with TBN230 V AC / 220 V DC, 0.5 A

03Electrical DataElectrical Data parameters

Module supply24 V DC ±10%

Supply currentLess than 40 mA

Bus supply5 V DC, less than 80 mA

Leakage current10 µA max.

04Mechanical DataMechanical Data parameters

IsolationIndividual opto-isolation

Dielectric strength1500 V AC, 1 min.

Dimensions75 × 46 × 94 mm

Operating range0 to +55 °C

Mitsubishi Hitachi Power Systems FXDOM01 Product Support

Frequently Asked Questions

Product-specific compatibility, application, installation, commissioning and ordering guidance for FXDOM01.

What function does FXDOM01 provide?

It is an eight-channel individually isolated digital output module for turbine and plant control applications.

What output element is used?

Each channel uses a normally open MOSFET PhotoMOS relay output.

What load rating applies?

The rating depends on the approved terminal base: up to 120 V AC/DC at 0.5 A with TB3, or 230 V AC / 220 V DC at 0.5 A with TBN.

What power supplies are required?

The module uses 24 V DC ±10 percent and also receives 5 V DC from the system bus.

Which terminal bases are compatible?

Use the specified TB3/TB3S or TBN/TBNF terminal base and verify the required voltage class.

What should be checked before commissioning?

Verify channel isolation, load voltage and current, terminal-base type, field polarity, fusing and output diagnostics.

What information should be provided when ordering?

Specify FXDOM01, the installed terminal base, field-voltage range and the control-system hardware revision.
