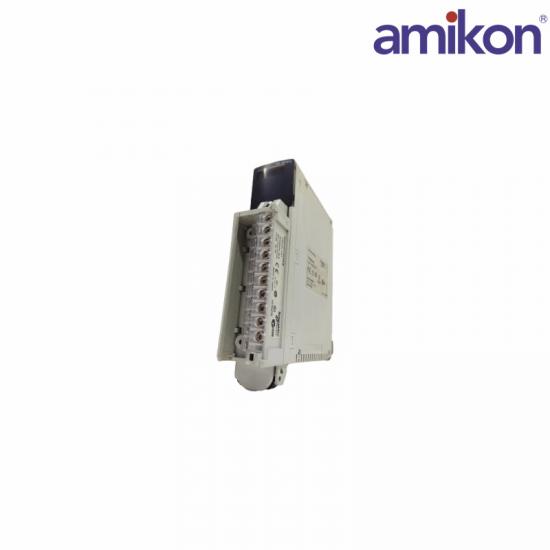

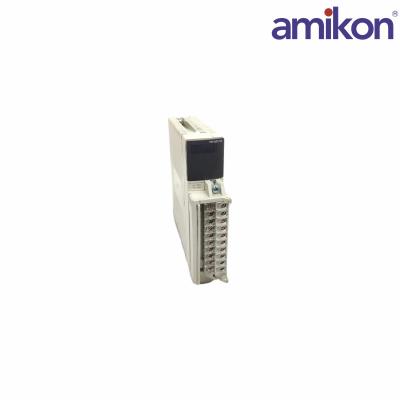

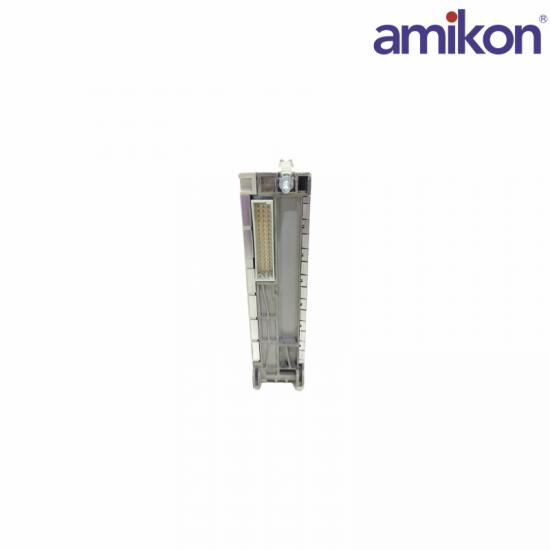

MODICON TSXAEY414 Analog input module

Module Format and Type:

The TSXAEY414 is a standard module designed specifically as an analog input module. It provides reliable and accurate analog input data for industrial control systems, offering compatibility with various analog input types and formats.

Multiple Analog Input Options:

With support for 4 analog inputs, the TSXAEY414 module accommodates a wide range of analog input types, including current (4-20 mA), resistors (0-400 Ohm and 0-3850 Ohm), various temperature probes (Pt 100, Pt 1000, Ni 1000), and thermocouples (types B, E, J, K, L, N, R, S, T, U), as well as voltage inputs (-13 to 63 mV, +/- 10V, 0-10V, +/- 5V, 0-5V, 1-5V).

High-Resolution Analog-to-Digital Conversion:

Featuring 16-bit analog-to-digital conversion, the TSXAEY414 ensures precise and accurate conversion of analog input signals into digital data, maintaining fidelity and reliability in industrial control applications.

Isolation and Electrical Parameters:

The module offers isolation between channels and the bus at 2830 Vrms, ensuring electrical safety and preventing interference between input channels. Additionally, it provides isolation between channels and ground, along with common-mode protection, safeguarding against electrical hazards and signal noise.

Wide Operating Range and Measurement Accuracy:

With a nominal read cycle time of 550 ms, the TSXAEY414 module offers fast and efficient data acquisition. It boasts excellent measurement accuracy, with measurement errors ranging from 0.13% to 1.2% of full scale, depending on the input type and temperature conditions.

Robust Construction and Easy Installation:

Built with a screw terminal block for electrical connections, the TSXAEY414 module ensures secure and reliable connections, minimizing installation time and effort. Its CE marking signifies compliance with European safety standards, guaranteeing quality and reliability.
