Part Number/Catalog No.: MPL-B4560F-SJ72AA

Series: Premium permanent magnet rotary servo motor

Series Type: Low-inertia

Voltage Class: 400 Volts AC

Frame Size: 130 millimeters

Magnetic Stack Length: 6 inches

Rated Speed: 3000 rpm

Feedback: Single-turn high-resolution encoder

Shaft Key/Seal: Shaft key / No shaft seal

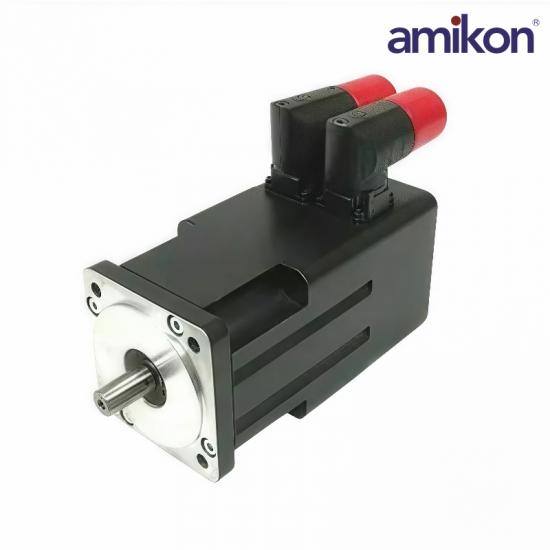

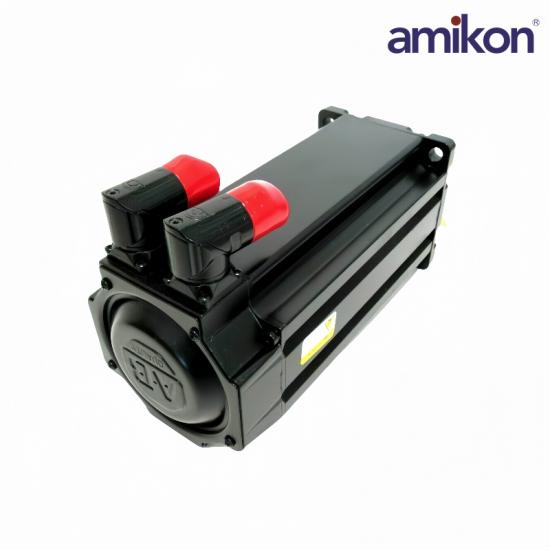

The MPL-B4560F-SJ72AA servo motor is an MPL low-inertia servo motor featuring a power rating of 460 Volts AC and it has a magnetic stack length of 6 inches. The servo motor features a rated motor speed of 3000 revolutions per minute with the single-turn high-resolution encoder. The unit comes with the keyed shaft extension enclosure and with the SpeedTEC DIN connector right-angle 180 degrees rotatable connector for ensuring a quick connection. The MPL-B4560F-SJ72AA servo motor is a no-brake unit. The MPL-B4560F-SJ72AA servo motor comes with the standard factory designated control options and it features the IEC metric flange. The compact brushless servo motor features a unique design and used on high-performance industrial motion systems. The servo motor comes with innovative winding technology with the current flowing in the winding to create a rotating magnetic field. The MPL-B4560F-SJ72AA servo motor features an optical encoder that keeps track of the number of rotations of the servo motor and the position of the units’ shaft.
