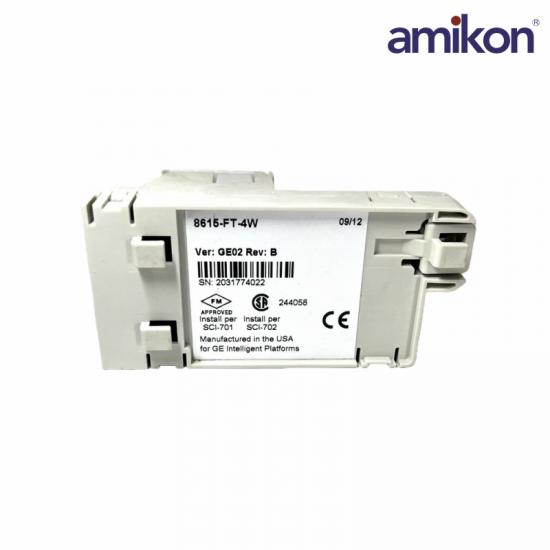

Part Number: 8615-FT-4W

Product Type: Field Terminal

Configuration: 4-Wire Transmitter

Output Type: Current Sinking

Maximum Voltage: 250 VAC

Number of Channels: 8, single-ended

Nominal Signal Range (Span): 4 to 20 mA

Full Signal Range: 1 to 23 mA

Short circuit current: > 23.5 mA

Open circuit current: < 0.5 mA

Output Voltage (@ 20 mA): 13.5 V (minimum)

Output Current: 32 mA (maximum)

Accuracy (over temperature range): ±0.1% of span

Resolution: 16 bits

Repeatability: 0.05% of span

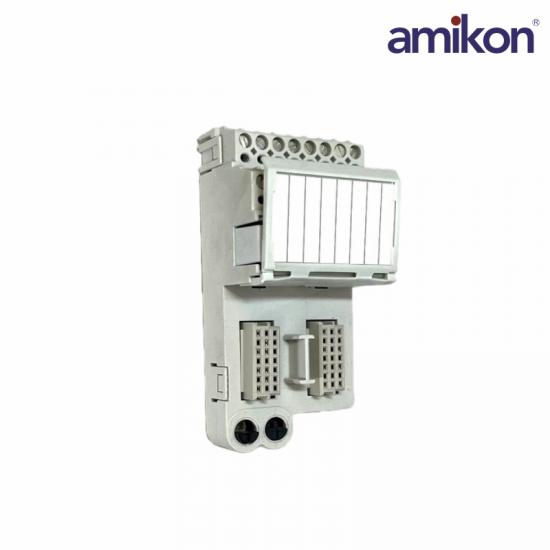

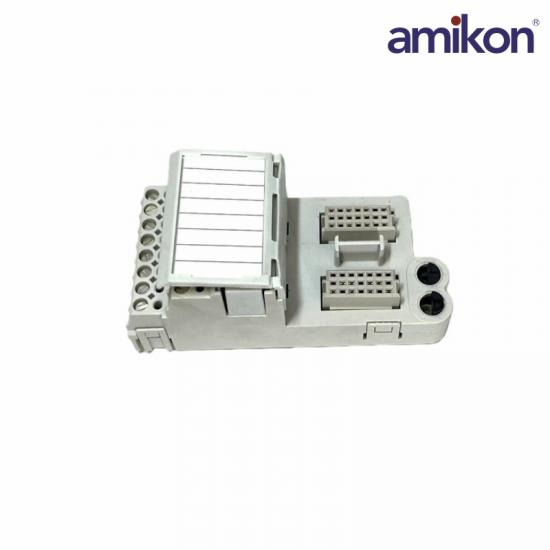

The MTL 8615-FT-4W is a 4-wire field terminal designed for use with PAC8000 I/O systems to provide a robust, reliable interface between field-mounted sensors/actuators and industrial I/O modules. It supports current sinking configurations, allowing direct termination of field wiring into the terminal block, which then snaps securely onto a PAC8000 carrier with the I/O module mounted above it. This field terminal simplifies wiring, enhances signal integrity, and supports installations in general and hazardous environments (Zone 2 / Class I Division 2). Its rugged thermoplastic construction and mechanical keying help prevent incorrect module installation and improve safety in industrial applications.
