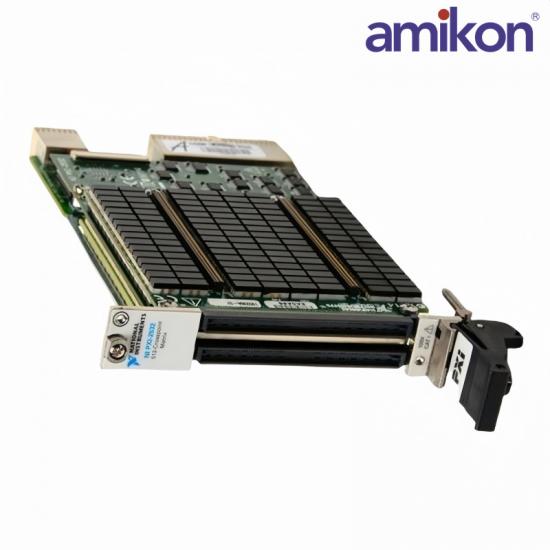

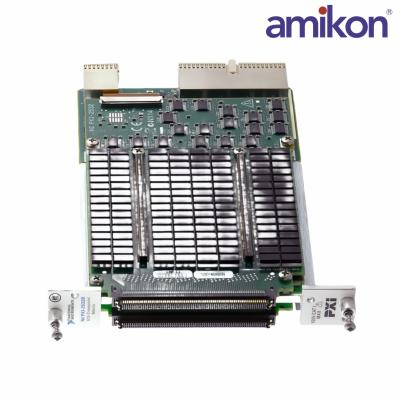

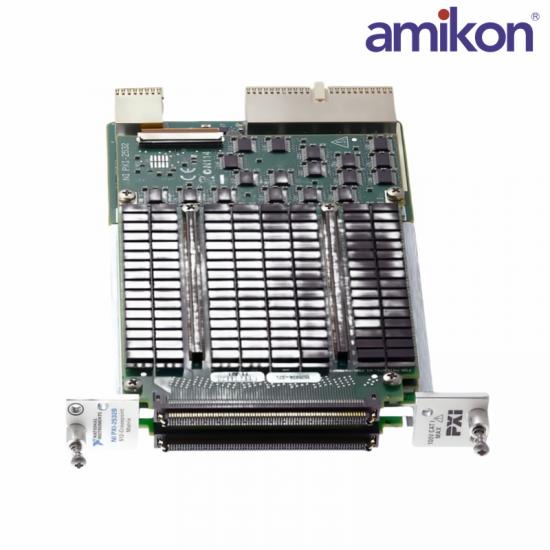

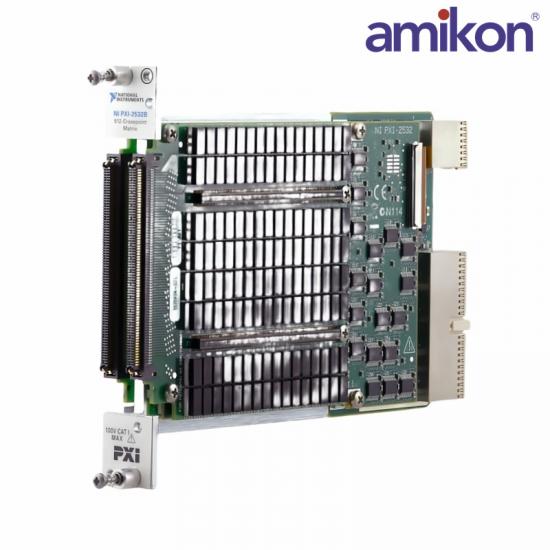

The National Instruments (NI) PXI-2532B is a high-density, general-purpose matrix switch module designed for use in test systems. It is part of the PXI platform, a modular instrumentation standard, and offers superior flexibility for routing signals between instruments and devices under test (DUTs).

PXI-2532B Supports up to 4,096 crosspoints in a single PXI chassis.

PXI-2532B Configurable as a 4x256 or 8x128 matrix, among other configurations, to suit various testing requirements.

Allows expansion to larger matrix configurations when multiple modules are combined.

PXI-2532B Compatible with the NI TB-264x terminal block series for easy matrix wiring and setup.

Designed for rapid signal routing, reducing test execution time.

PXI-2532B Supports a wide range of signal types, including digital, analog, and RF signals, for comprehensive testing applications.

Configuration: Flexible configurations, including 4x256 or 8x128.

Relay Type: Electromechanical relays for durability and performance.

Switching Speed: High-speed switching for fast signal routing.

Maximum Voltage: 100 VDC or 100 VAC (peak).

Maximum Current: 1 A per channel.

Maximum Power: 10 W per channel.

Contact Resistance: < 1 Ω.

Form Factor: PXI-1 slot module.

Compatibility: PXI and CompactPCI systems.

Connection Type: Requires a compatible NI TB-264x terminal block for wiring connections.

Relay Life: Tested for millions of operations, ensuring long-term reliability.

Operating Temperature: 0°C to 55°C.

Storage Temperature: -40°C to 70°C.

Humidity: Up to 90% non-condensing.
