Part Number：DRIVE 5645

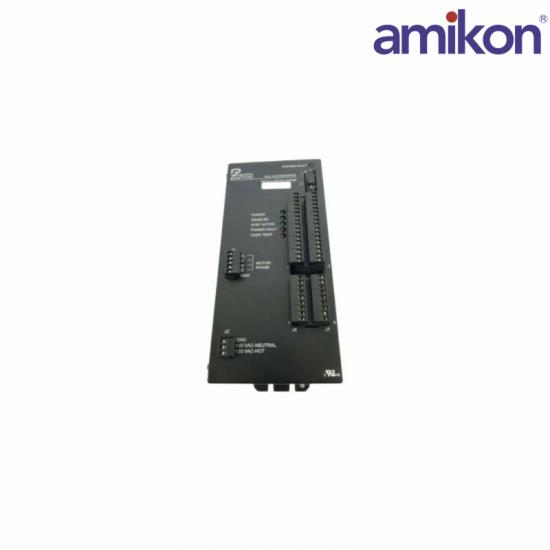

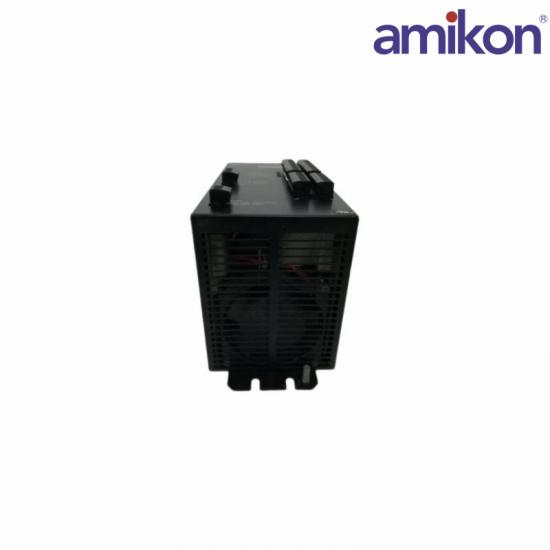

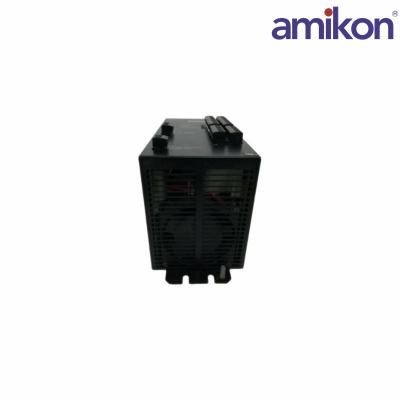

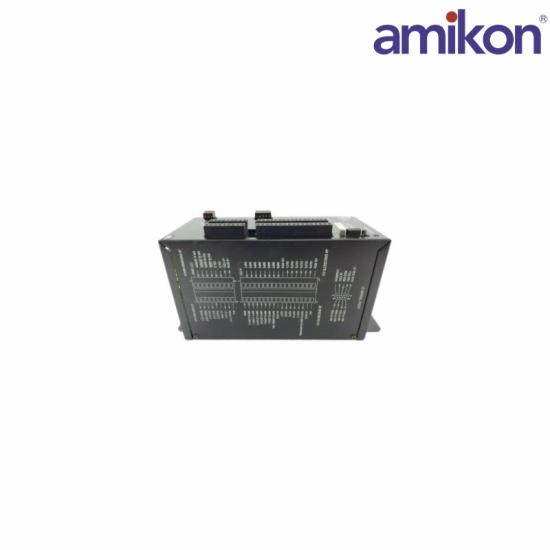

The PACIFIC SCIENTIFIC DRIVE 5645 is a microstep indexer designed for precise motion control applications. It provides fine control over stepper motors, allowing for high-resolution positioning and smooth motion.

Voltage: Typically operates with a DC supply voltage, often in the range of 20-80V DC.

Current: The current rating depends on the stepper motor and application, with the indexer designed to handle specific current requirements.

Microstepping Resolution:

Steps per Revolution: Provides microstepping with resolutions such as 200, 400, 800, 1600, or higher steps per revolution depending on configuration.

Control Modes:

Modes: Supports various modes including full-step, half-step, and microstepping to provide smooth and precise control.

Feedback:

Feedback Options: Often used with encoders or other feedback devices to ensure accurate positioning and speed control.

Step Rate:

Maximum Step Rate: The maximum rate at which steps can be commanded, typically specified in steps per second or Hertz.

Torque:

Output Torque: The torque produced is dependent on the motor used and drive settings.

Communication Ports:

Interface: Includes communication ports for connection to a host controller or other devices. Common interfaces may include RS-232, RS-485, or other serial communication protocols.

Control Inputs:

Inputs: Various inputs for command signals, including pulse and direction inputs.

Operating Temperature Range:

Range: Typically from 0°C to 50°C (32°F to 122°F).

Storage Temperature Range:

Range: Typically from -20°C to 85°C (-4°F to 185°F).

Product type:  MICROSTEP INDEXER

Condition：100% Original
