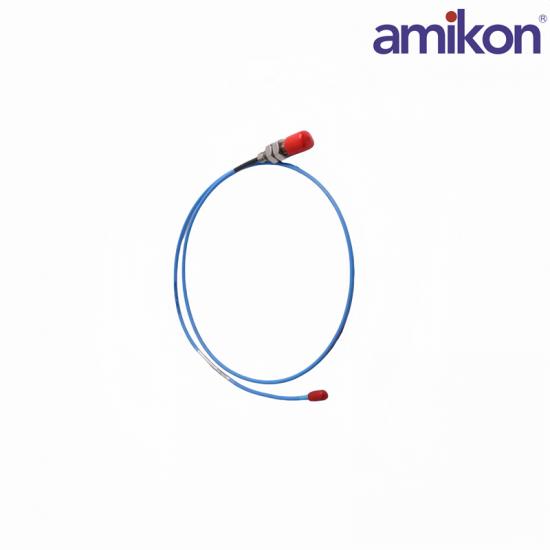

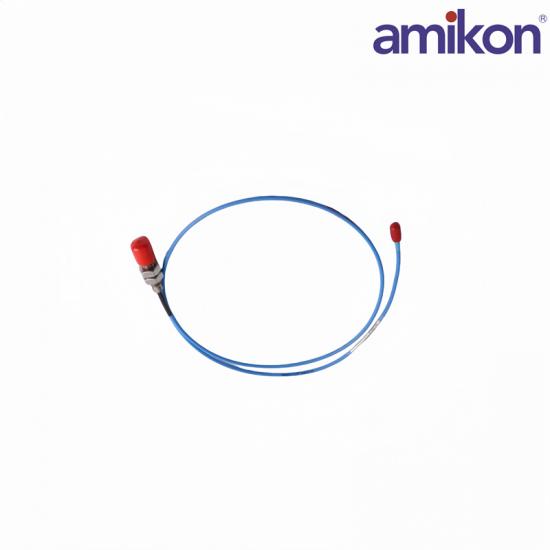

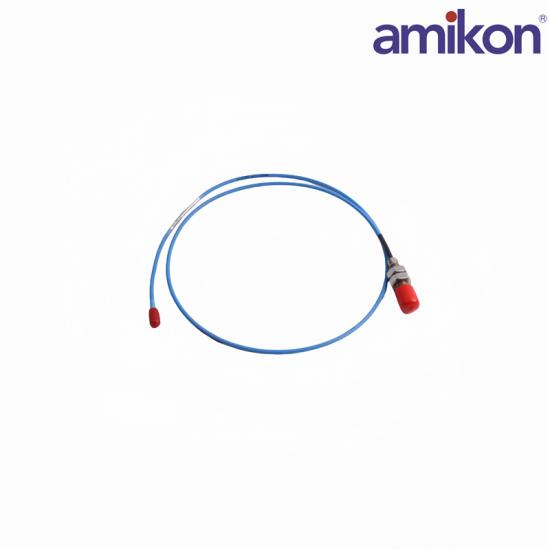

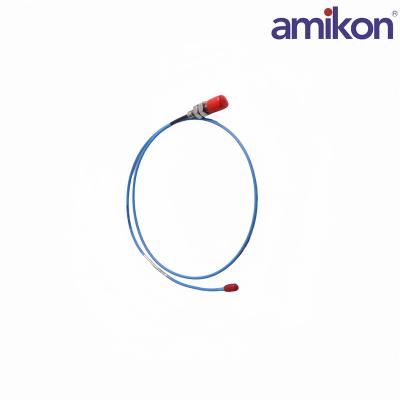

PHILIPS TM0180-A08-B00-C12-D10 proximity probe

TheTM0180-A08-B00-C12-D10 (8mm)probes are designed for long life cycles and are suitable for harsh environments. ProvibTech realizes one of the most significant problems in proximity probe installations are ground loops and loss of isolation due to damaged cable

jackets. ProvibTech’s custom rugged cable jacket prevents the probe cable from breaking and tearing and is highly

resistive to corrosive environments. The TM0180-A08-B00-C12-D10 probe and extension cable are equipped with a standard protective rubber boot, which covers the connectors and prevents oil and dirt penetration.

The TM0180  series probes come in 0.5m and 1.0m cable lengths, as well as, special lengths of 5.0m and 9.0m with an integrated probe and extension cable design.

Power Supply:

Voltage: -23 to -30VDC

Current: < 12mA

Linear Range:

2.0mm (80mils) begins at 0.25mm (10mils) from

probe face (AISI4140)

Range is 0.25 - 2.25mm (10 - 90 mils)

Sensitivity:

7.87 mV/um (200mV/mil)

Temperature Sensitivity (Normal):

Probe and 5 meters cable, from -35o

C to 120o

C, tolerance

is within ±0.3%/ oC in the middle of the linear range. At

2.25mm (90mil), nominal ±0.5%/ oC

Linearity (deviation from straight line):

Within±0.0254mm (±1.0 mil) of a straight line, when

calibrated as a system. ±0.038mm (±1.5mil) typical

including interchangeability errors

Frequency Response (±3db):

0 - 10.0 KHz

Minimum Target Size:

15mm (0.6 inch) in diameter
