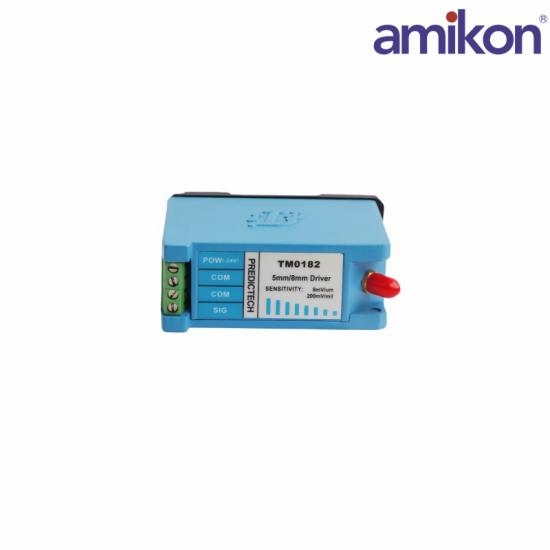

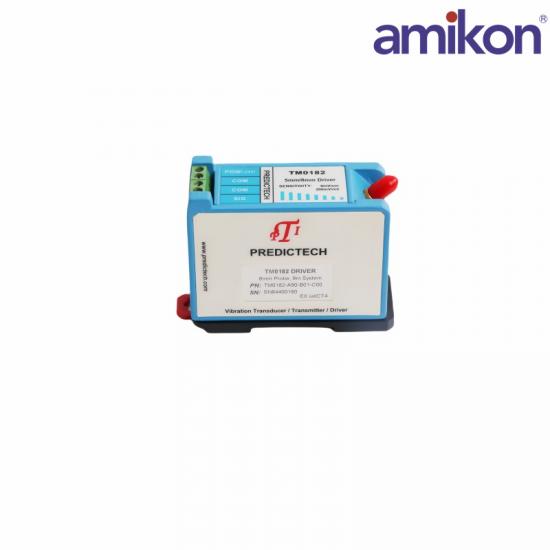

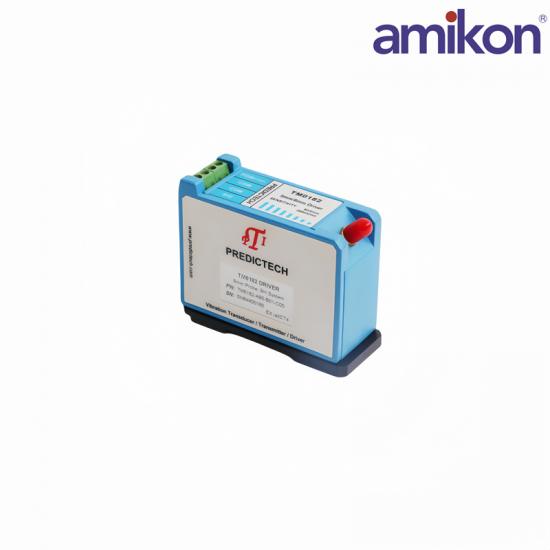

PHILIPS TM0182-A90-B01-C00 Proximity Probe Driver

The TM0182-A50-B00-C00 driver is used for the proximity probe systems. The circuit isolation from ground is a standard feature for all PVTVM’s drivers. The total length of cable between the probe and the driver should be 5m or 9m. The distance between the driver and the vibration

monitor can be up to 300m (1,000 ft). The three conductor shielded cables from the probe driver should be used to connect to a vibration monitor, such as, PVTVM’s PT2060 monitor.

Probe Type Cable Length

Standard 8mm probe -A50 (standard 8mm probe, 5m)

-A90 (standard 8mm probe, 9m)

-B00 (no)

-B01 (multiple)

-C00 (DIN rail)

-C01 (plate mount)

Standard 5mm probe -A55 (standard 5mm probe, 5m)

-A95 (standard 5mm probe, 9m)

7200 8mm/5mm probe -A57 (7200 8mm / 5mm probe, 5m, 18745)

-A97 (7200 8mm / 5mm probe, 9m, 18745)

Part Number:  TM0182-A90-B01-C00

Manufacturer: PHILIPS

Series: PROVIBTECH 8mm, 5mm Proximity Probe TM0180 and TM0105 Systems

Full description:PROVIBTECH TM0182-A90-B01-C00 Proximity Probe Driver for Standard 8mm probe.

The TM0182 driver is used for the TM0180 and TM0105 proximity probe systems. The circuit isolation from ground is a standard feature for all ProvibTech’s drivers. The total length of cable between the probe and the driver should be 5m or 9m. The distance between the driver and the vibration monitor can be up to 300m (1,000 ft). The three conductor shielded cables from the probe driver should be used to connect to a vibration monitor, such as, ProvibTech’s PT2060 monitor.
