Description：

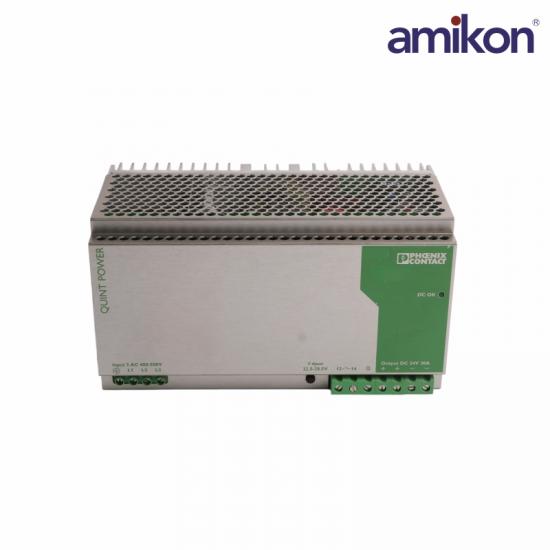

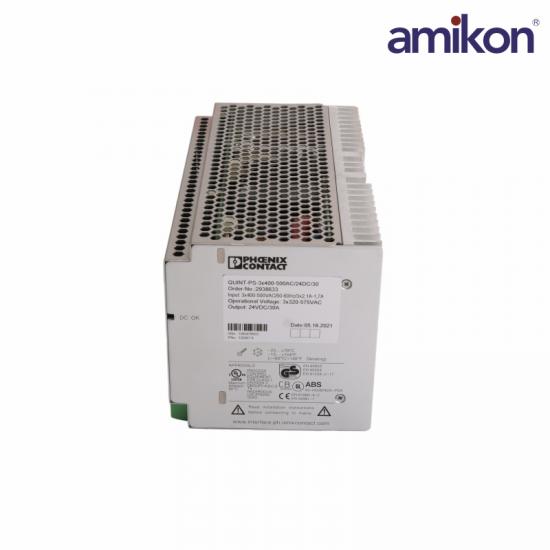

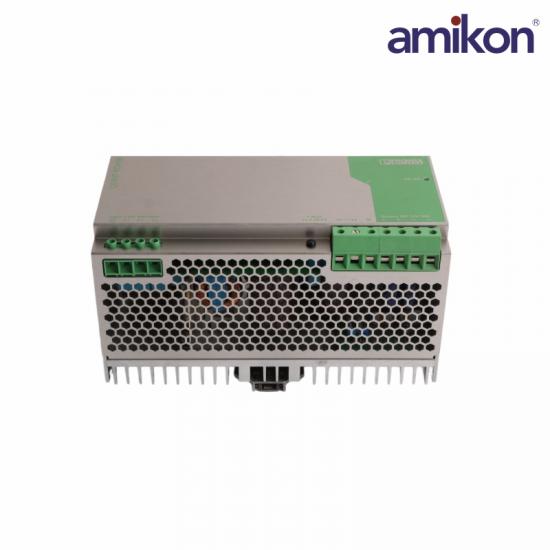

QUINT POWER is the powerful 60 - 960 W DC power supply unit for universal use. Withits wide -range input, single and three- phase versions.and internatonal approval package, this solution is unrivalled. QUINT POWER provides relable power supply. generousy dimensioned capacitorsnsure mains bufering of over 20 ms at fuload. Full output power is provided by al three-phase devices, even in the event of a permanentphase faiure. The Power Boost power reserve easily starts loads with high inrush curents and ensures that fuses are reliably tripped. Preventive     uninterruptible solutions, AS-i power supply units, and a QUINT diode complete this comprehensive product range

Specification：

Frequently asked questions

Q1: What is the QUINT-PS-3X400-500AC/24DC/40 (2938646)?

A1: The QUINT-PS-3X400-500AC/24DC/40 is a Phoenix Contact industrial power supply, designed to deliver stable 24 V DC output for and control systems.

Q2: What is the QUINT-PS-3X400-500AC/24DC/40 inrush current?

A2: The typical inrush current is less than 15 A, ensuring controlled startup behavior.

Q3: What is the QUINT-PS-3X400-500AC/24DC/40 inrush current integral (I²t)?

A3: The I²t value is 1 A²s, indicating limited stress on upstream protection devices during startup.

Q4: What is the QUINT-PS-3X400-500AC/24DC/40 AC input frequency range?

A4: It operates within an AC frequency range of 45 Hz to 65 Hz, compatible with standard industrial power grids.

Q5: What is the QUINT-PS-3X400-500AC/24DC/40 nominal power consumption?

A5: The unit has a nominal power consumption of approximately 1048 W.

Product Applications

Automotive Manufacturing Plants: Control cabinets for body shops, paint lines, and final assembly lines, powering numerous sensors, actuators, and PLC control systems.

Process Control Industries: Including the oil, chemical, pharmaceutical, and mining industries. This series includes versions suitable for Ex zone 2 (explosion-proof zone 2) environments, ideal for flammable and explosive environments.

Heavy Machinery and Specialty Engineering: Suitable for equipment requiring the driving of heavy loads (such as motor starting). Its POWER BOOST function can provide up to 1.5 times the rated current, ensuring the system does not collapse under sudden load changes.

Power and Energy Industries: Used as a highly reliable main power source in control systems of power plants or substations.

Rail Transportation and Shipbuilding: Commonly used in transportation infrastructure and marine power distribution systems due to its high seismic resistance and extensive international certifications.
