Manufacturer : ProSoft

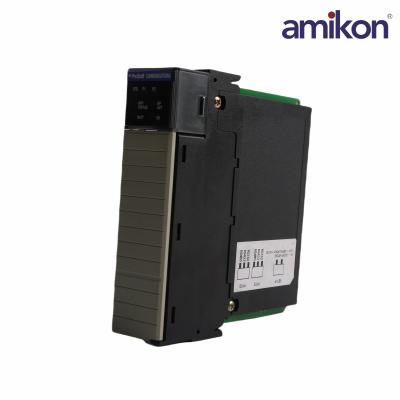

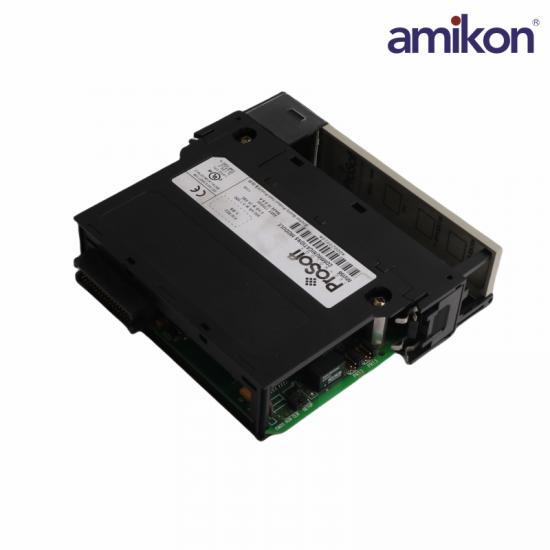

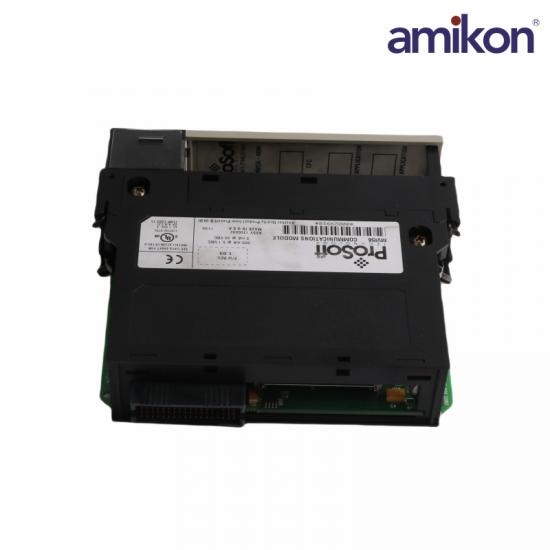

Product No : MVI56-ADM

Product Type :Programmable Application Development

Backplane Current Load : 800 mA @ 5 V

Operating Temperature : 0 to 60°C (32 to 140°F)

Storage Temperature : –40 to 85°C (–40 to 185°F)

Shipping Weight : 2 Kg

The inRAx-ProSoft Technology MVI56-ADM application development module is programmable and it is primarily intended for use with the series of modules.  This module has a 110 to 115 Baud communication speed and a backplane current load of 800 milliAmps at 5.1 Volts DC/3 mA at 24 Volts DC for power supply.  The MVI56 application development module is compatible withmodules and the users can install custom ‘C’ programs on the platform.  The ADM presents a flexible and powerful solution for speeding up custom ASCII data communications or to provide protection for the proprietary algorithm.  The MVI56-ADM module serves as an input/output module and it accustomed to transferring data between the module and processor while using the processor’s memory.  The ‘C’ programmable modules feature 2 serial ports (ADM), backplane interface to the processor, an API library, a portable code, a Digital Mars C++ compiler, and they are a great serial solution for custom applications.  The ProSoft MVI56-ADM module belongs to the ADM Series of ProSoft Technology modules.
