Description：

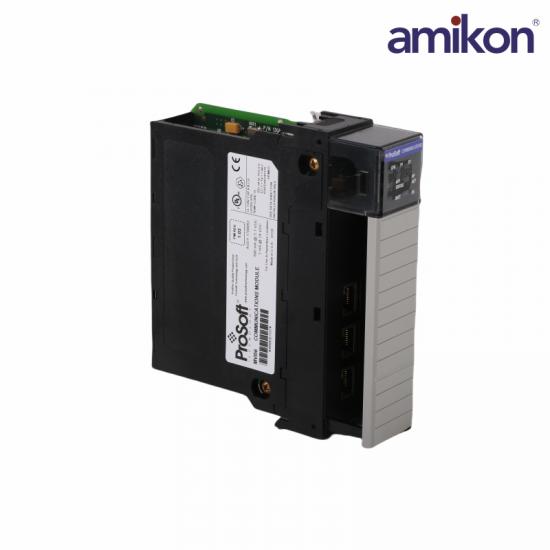

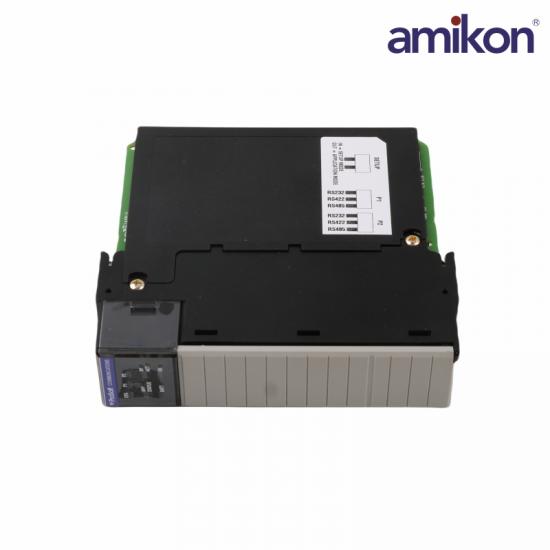

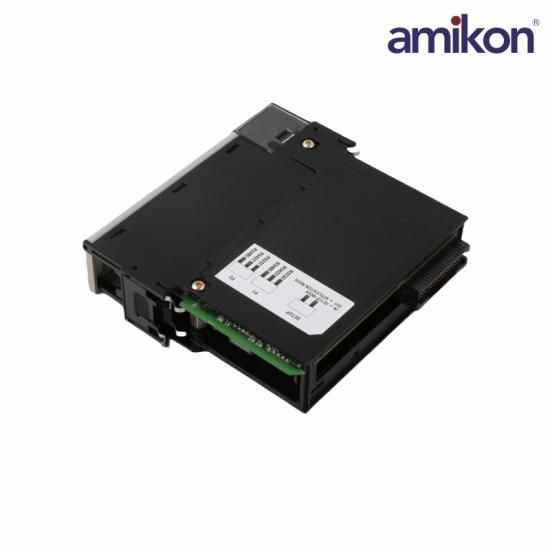

The MVI56-MCMR serves as a communication module that supports Modbus protocol functionality. It is versatile in its operation, with the ability to function effectively within a temperature spectrum of 0 to 60 °C. This compact module requires installation in one slot of a remote rack.

The module operates with a significant backplane current draw of 800 mA at 5 VDC, while minimal power consumption is noted at just 3 mA when using a 24 VDC supply. The design necessitates a minimum phase wire size of 1.3 mm², ensuring compatibility across various wiring configurations.

For connectivity, the MVI56-MCMR module incorporates LED indicators that assist in providing visual status updates. Additionally, it supports multiple communication interfaces such as RS-232, RS-485, and RS-422, allowing a baud rate range from 110 baud up to 115200 baud, making it adaptable for different networking needs.

Specification：

Frequently asked questions

Q1: What is the PROSOFT MVI56-MCMR used for?

A: The MVI56-MCMR is a Modbus communication module designed to enable data exchange between PLC systems and Modbus devices in industrial .

Q2: Which communication protocol does it support?

A: It supports the Modbus protocol, commonly used for industrial device communication.

Q3: What interfaces are available on this MVI56-MCMR module?

A: The MVI56-MCMR module provides RS-232, RS-485, and RS-422 interfaces, offering flexible connectivity options.

Q4: What is the MVI56-MCMR baud rate range?

A: It supports a wide baud rate range from 110 to 115200 baud, ensuring compatibility with various devices.

Q5: How much rack space does the MVI56-MCMR module require?

A: It occupies 1 slot and is designed for use in a remote rack.

Product Applications

Oil and gas: Used for connecting flow meters, transmitters and wellhead monitoring instruments.

Electricity and energy: Integrated with multi-functional power meters, relay protection devices or UPS systems.

Water treatment and environmental protection: Connect dissolved oxygen analyzers, level meters and various water quality analysis sensors.

Large heavy industry (cement, mining, steel): Achieve remote I/O data collection in harsh environments and scattered equipment areas within factories.

Ships and building : Monitor the status of onboard equipment or environmental parameter sensors in buildings.

Main advantages:

High compatibility: Seamless integration with system.

Optimized remote communication: Designed specifically for remote racks, with stable performance.

Enhanced features: Older models have been enhanced with configuration and diagnostic functions.
