Description：

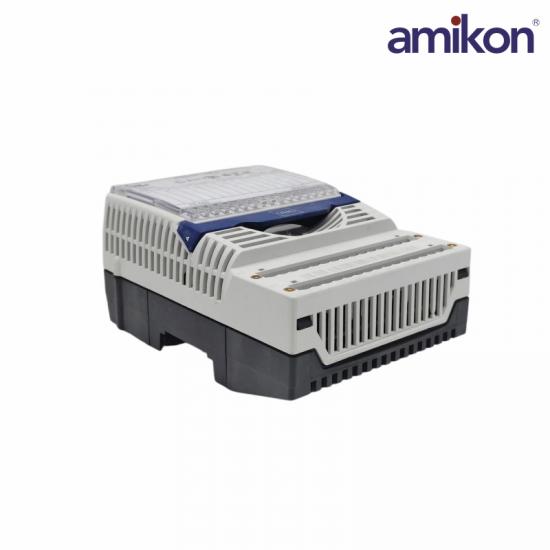

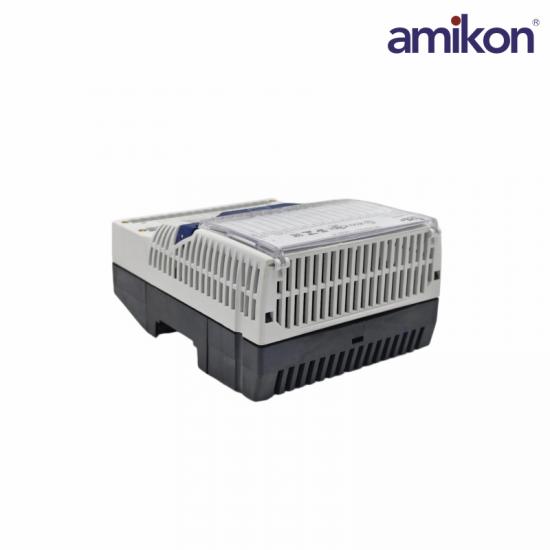

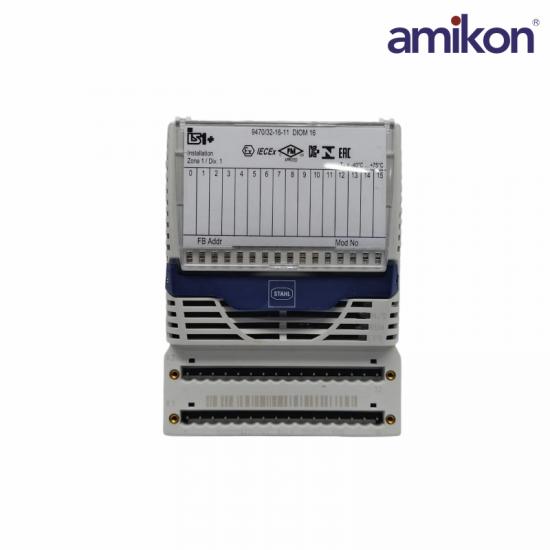

The 9470/32 digital input/output module for Zone 1 has 16 channels which can be used in pairs forEx ioperation as inputs for contacts and NAMUR proximity switches (EN 60947-5-6) or as outputsfor indicator lamps and low-power solenoid valves. Eight inputs can be used for frequencies of upto 20 kHz, and four can be used for detecting the direction of rotation.All inputs/outputs are short-circuit proof and galvanically separated from the system.

The 9470/32-16-11 module features intrinsically safe Ex ia IIC circuits, line fault monitoring, galvanic isolation, and individual channel status and fault LEDs. It supports frequency measurement up to 20 kHz, directional rotation detection, and up/down counting functions. Designed for maximum system availability, the module can be hot-swapped in Zone 1 without disconnecting power. All channels are short-circuit protected and isolated from the system, ensuring reliable operation in safety-critical applications.

Specification：

Frequently asked questions

Q1: What is the R-STAHL 9470/32-16-11 Digital Input/Output Module used for?

A1: The 9470/32-16-11 is a digital I/O module used for monitoring and controlling field signals in industrial and hazardous-area applications.

Q2: What is the maximum switching frequency of the 9470/32-16-11 module?

A2: The 9470/32-16-11 module supports a maximum switching frequency of 20 kHz, enabling fast signal processing and response.

Q3: What is the supply voltage required by the 9470/32-16-11 module?

A3: The 9470/32-16-11 module operates with a supply voltage of 8.2 V.

Q4: What is the 9470/32-16-11 operating point current?

A4: The 9470/32-16-11 operating point current is 1.65 mA.

Q5: What is the 9470/32-16-11 minimum ON input signal current?

A5: The 9470/32-16-11 minimum current required to recognize an ON input signal is 2.1 mA.

Product Applications

Oil and Gas Extraction: Used on drilling platforms, refineries, and FPSOs (Floating Production Storage and Offloading) for handling level, flow, and pressure signals in flammable and explosive areas.

Petrochemical and Chemical Industries: Widely used in tank farms, reactor areas, and pipeline systems requiring explosion-proof control, connected to sensors compliant with NAMUR standards.

Fine Chemicals and Pharmaceuticals: Used in production workshops with high concentrations of volatile solvents for controlling on-site explosion-proof valves, alarms, and monitoring access control and safety interlock signals.

Metallurgy and Power Control: Provides intrinsically safe power and signal isolation in coking areas of steel plants, pulverizing systems of power plants, or workshops with dust explosion-proof requirements.
