Manufacturer :RAYTEK

Product Number :RAYMI310LTSCB3/MI310LTSCB3

Temperature Range: -40 to 600°C (-40 to 1112°F)

Spectral Response: 8 to 14 µm

Optical Resolution: 10:1 (Distance-to-Spot ratio)

Accuracy: ±1% of reading or ±1°C, whichever is greater

Repeatability: ±0.5% of reading or ±0.5°C, whichever is greater

Response Time: 130 milliseconds (90% response)

Emissivity: Adjustable from 0.1 to 1.1

Output Options: 0–20 mA, 4–20 mA, 0–5 V, 0–10 V, Type J/K/R/S thermocouple

Power Supply: 8 to 32 VDC, maximum 6 W

Ambient Operating Temperature: -10 to 120°C (14 to 248°F)

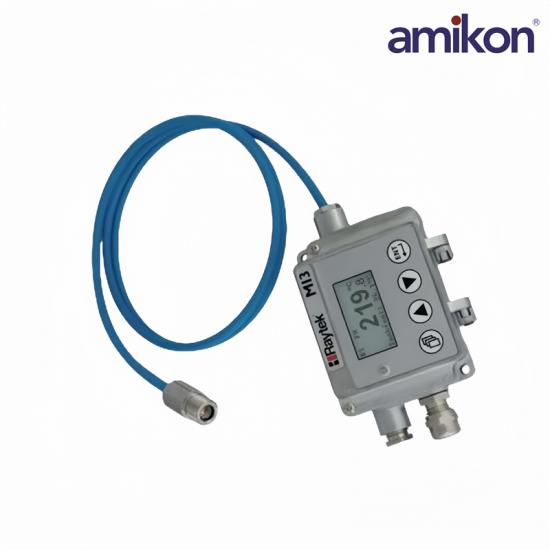

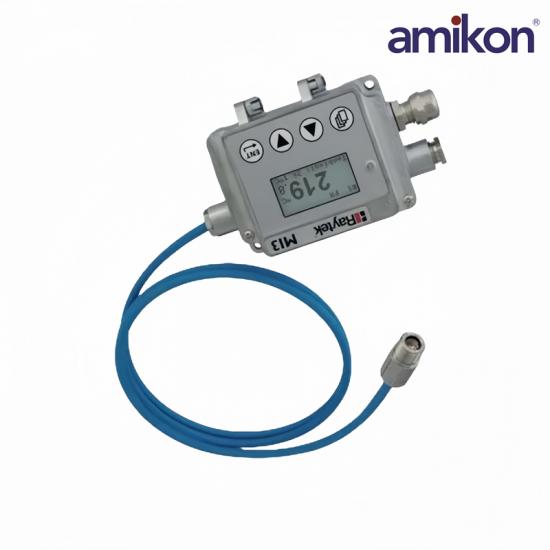

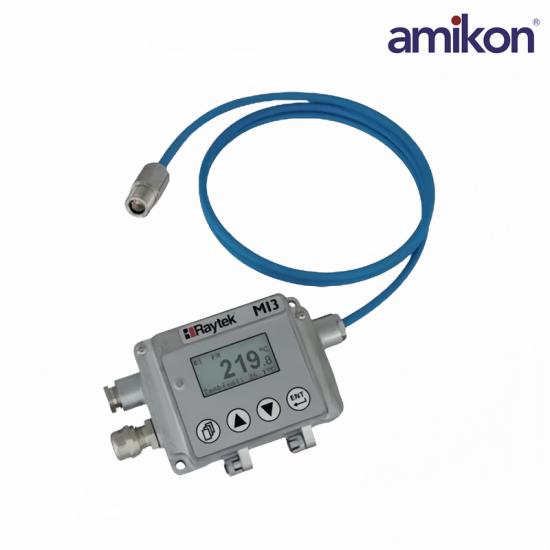

The Raytek RAYMI310LTSCB3 / MI310LTSCB3 Infrared Temperature Sensor is a compact, rugged, and high-precision non-contact sensor designed for demanding industrial environments. Part of Raytek’s MI3 series, this model delivers reliable and accurate temperature measurements in a wide range from -40°C to 600°C (-40°F to 1112°F). It features a miniature sensing head connected via a durable 3-meter cable to a separate electronics module, allowing flexible installation in tight or harsh locations where traditional sensors may not fit.

This sensor uses an 8–14 µm spectral response optimized for general-purpose temperature measurement across a variety of materials and surfaces. With a fast response time of 130 ms and an adjustable emissivity setting, the MI310LTSCB3 ensures accurate and repeatable results even in dynamic processes. It supports multiple output formats, including analog current or voltage, and thermocouple types J, K, R, or S, making it easy to integrate into existing systems.
