Manufacturer: Schneider Electric

Series: Modicon

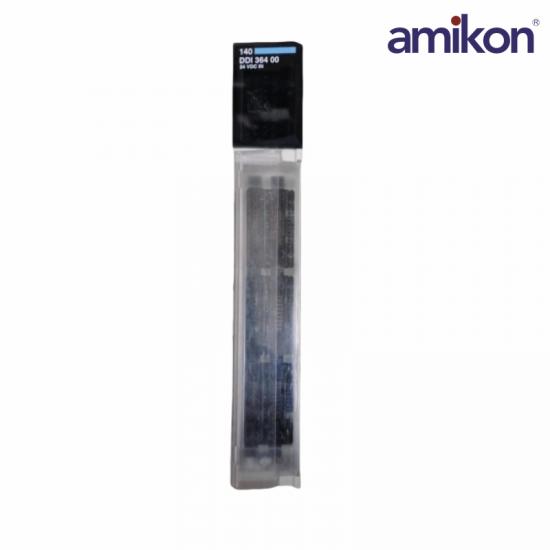

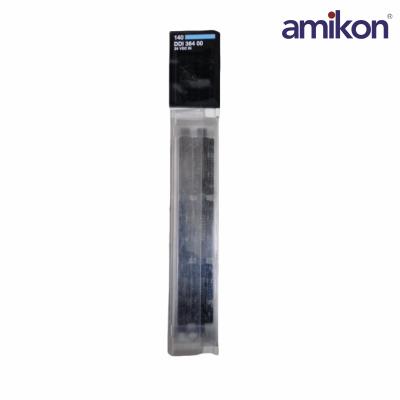

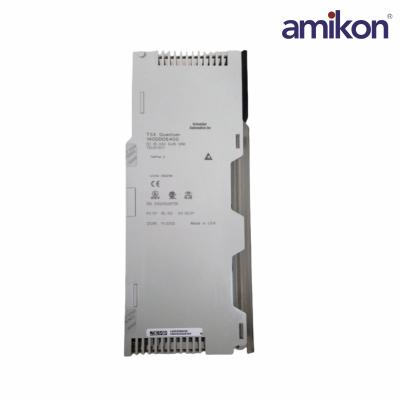

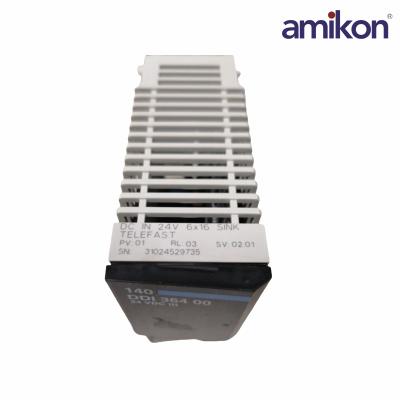

Part Number: 140DDI36400

Product Type: Discrete Input Module

Total Input Count: 96 digital channels

Acceptable Voltage Range: 19.2 V to 30 V DC

High-State Voltage Range: 15 V to 30 V DC

Low-State Voltage Threshold: Max. 5 V DC

Input Logic Configuration: Positive logic (sinking input)

Input Resistance: 6700 Ω

Switching Response Time: ≤ 2 ms (OFF to ON), ≤ 3 ms (ON to OFF)

Maximum Allowable Input: 30 V DC continuous, 50 V DC transient

Heat Dissipation: 1.35 W + 0.13 W per active input channel

Electrical Isolation: 500 Vrms (between channel groups)

Current Draw from Bus: 270 mA

Module Design: Standard format

Schneider Electric's 140DDI36400 is tailored for applications requiring low-voltage DC discrete input management. This module encompasses 96 channels for digital input, accommodating voltages from 19.2 V to 30 V DC, with a high-state voltage capability reaching up to 30 V. For low-state recognition, a threshold of no more than 5 V DC is maintained.

The device operates on a positive logic principle utilizing a sinking input format, which can be ideal for various control tasks. Each channel features an input resistance of 6700 ohms, resulting in a rapid switching response time noted as ≤ 2 milliseconds for transitions from off to on, and ≤ 3 milliseconds for the reverse. Furthermore, it can tolerate 30 V continuously and withstand transient pulses of up to 50 V, ensuring robustness in demanding environments.

Heat generation is minimal at 1.35 watts, increasing by 0.13 watts for each active input channel. With an electrical isolation rating of 500 Vrms, the module provides segment protection between channel groups. The current required from the bus is approximately 270 mA, reflecting its efficiency.

Designed in a standard modular format, the 140DDI36400 integrates seamlessly into control panels or systems. Status is easily readable with 96 green LEDs indicating the input state, a red LED for any faults encountered, and an additional green LED to denote bus communication. The module weighs around 0.3 kg (0.7 lb), adding minimal installation burden.
