Part Number：

140XBP01600

Shipping Term：TNT DHL FEDEX EMS UPS

Condition：

100% Original

Product type： PLC Backplane

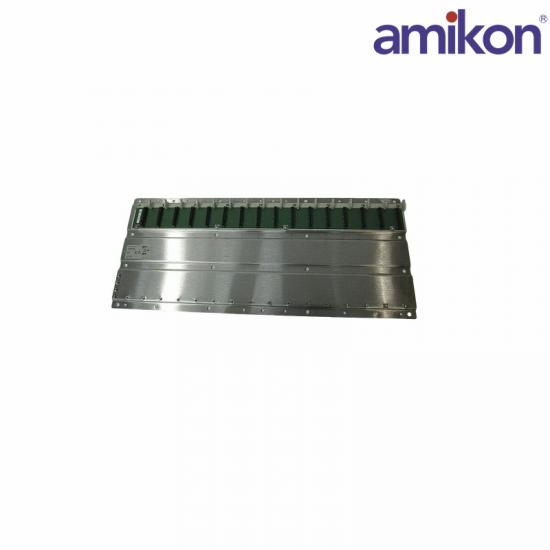

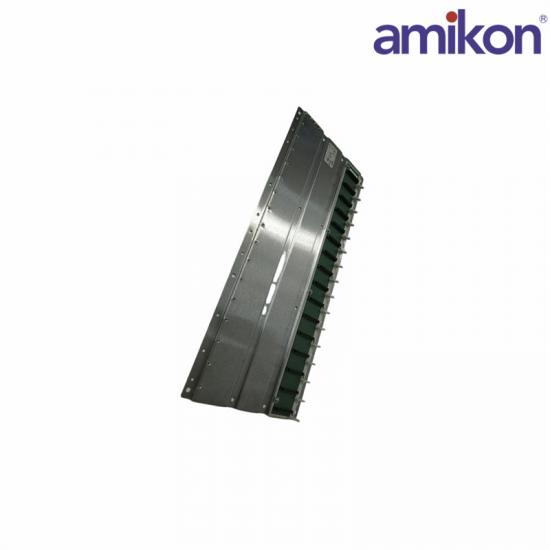

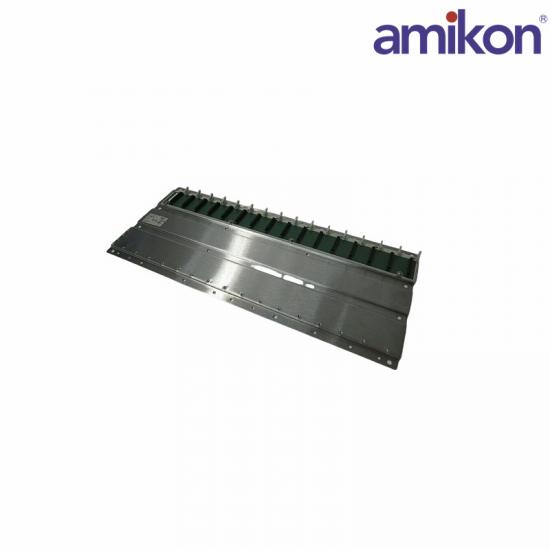

The Schneider Electric 140XBP01600 is a backplane used in the Modicon Quantum PLC system. It is an essential component that provides the physical and electrical connections between the various modules in a PLC rack, including the CPU, I/O modules, and communication modules.

The 140XBP01600 backplane acts as the central hub for connecting multiple modules in a Modicon Quantum PLC system. It ensures that all modules communicate effectively and that power is distributed appropriately across the system.

Module Type: It is a backplane designed for use with the Modicon Quantum PLC series. It provides slots for mounting various PLC modules.

Enclosure: The backplane is typically housed in a robust, industrial-grade enclosure that fits into a control panel or rack.

Number of Slots: The 140XBP01600 backplane typically includes 16 slots for mounting different modules, including CPUs, I/O modules, power supplies, and communication modules.

Electrical Connections: Provides electrical connections between the modules installed on it. It includes backplane connectors and wiring for power distribution and signal communication.

Power Supply: The backplane distributes power from the system’s power supply to the various modules installed in the rack.

Data Bus: Facilitates communication between modules through an internal data bus, allowing for the transfer of control signals and data.
