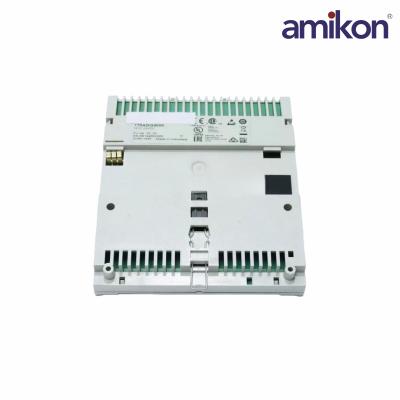

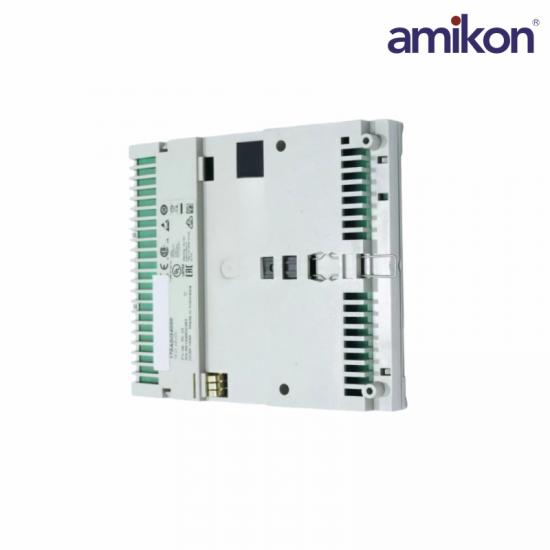

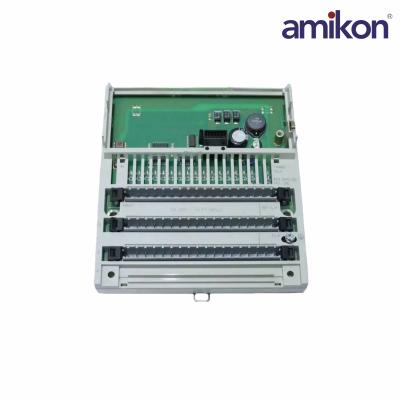

The Modicon 170ADI34000 module from Schneider Electric is designed as a discrete input module, intended for applications where precise input handling is critical. Comprising a single group that incorporates 16 channels, this module is engineered to operate flawlessly at an input voltage of 24 V DC. Versatility is evident, with a voltage range that allows inputs from -3 V to +30 V.

Designed with a positive input , the module's input resistance measures at 4 kOhm, ensuring compatibility with a range of devices while optimizing signal integrity. The rapid response time of 3.3 milliseconds enables quick data acquisition, making it well-suited for dynamic environments. Effective isolation is maintained with a maximum of 500 VAC between the channels and the bus, enhancing reliability and safety.

Frequently asked questions：

Q1: What does the 170ADI34000 module do?

A: It reads digital (discrete) input signals from sensors and switches in an system.

Q2: How many discrete inputs does the 170ADI34000 support?

A: It supports 16 discrete input channels.

Q3: What input voltage does the 170ADI34000 use?

A: The module uses 24 V DC nominal input voltage.

Q4: Does the 170ADI34000 provide status indicators?

A: Yes, it has LED indicators for each channel to show input status.
