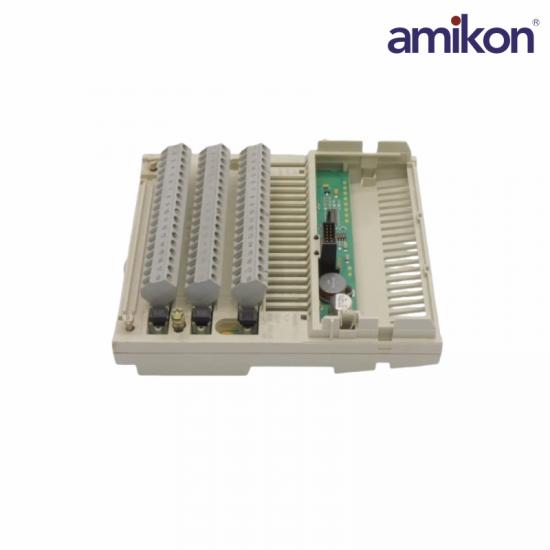

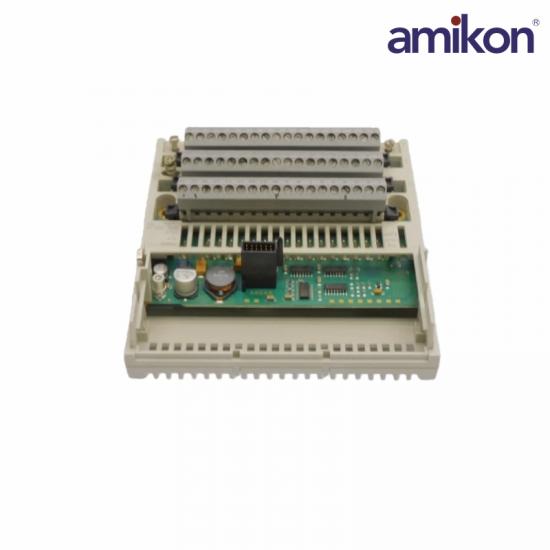

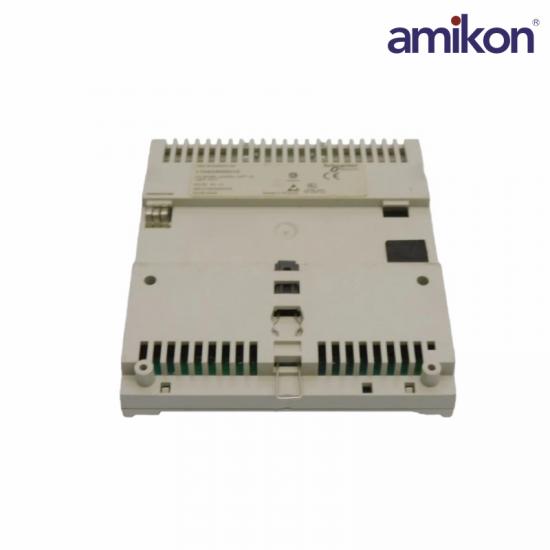

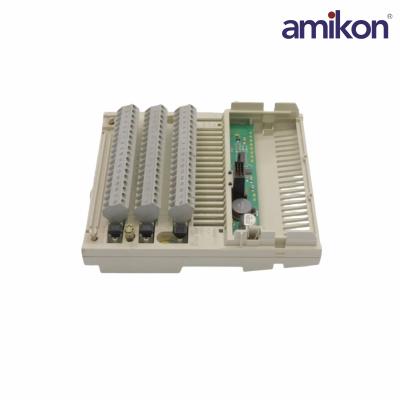

Schneider Electric's 170ADM35010 unit is designed as a discrete I/O base with robust functionality. It consists of a total of 16 discrete input channels and 16 discrete output channels, organized into two groups housing eight outputs each, alongside a separate group featuring 16 inputs. This architecture makes it well-suited for varied configurations within industrial applications.

The unit operates at a discrete input voltage of 24 V DC and can output the same voltage, accommodating levels up to 30 V DC. It follows a positive scheme for both its inputs and outputs while being compatible with solid-state switch outputs, thus ensuring efficient operation.

To enhance durability, the 170ADM35010 features TC protective treatment, which is crucial in maintaining performance under challenging environments. It can handle a maximum relative humidity of 95%, provided there is no condensation present.

Frequently asked questions：

1.What is the Schneider Electric 170ADM35010?

The Schneider Electric 170ADM35010 is a discrete solid-state I/O base module designed for the Modicon Momentum platform. It provides robust input and output functionalities for industrial systems.

2.How many inputs and outputs does the 170ADM35010 have?

The module has one group of 16 discrete inputs and two groups of 8 discrete outputs, totaling 16 and 16 outputs.

3.What type of inputs does the 170ADM35010 support?

The 170ADM35010 supports 16 discrete inputs conforming to IEC 1131-2 Type 1 standards, operating with positive logic at a 24 V DC input voltage.

4.What are the output specifications of the 170ADM35010?

The module provides 16 discrete outputs with solid-state switches. These outputs support up to 30 V DC and are designed to handle a peak output current of 5 A.
