Manufacturer: Schneider Electric

Series: Modicon Momentum

Part Number: 172PNN21022

Electrical Connection Type: One 9-pin D-shell Modbus Plus connector

Protection Class: IP20

Coating Type: Conformal coating

Weight: 0.19 pounds (0.085 kg)

Dimensions: 0.98 inches tall, 5.63 inches wide, and 2.37 inches deep (25 mm tall, 143.1 mm wide, and 60.1 mm deep)

Rated Supply Voltage: 5 Volts DC

Status Indicators: One communication LED

Current Consumption: 200 to 350 milliamperes at 24 Volts DC

Product Type: Modbus Plus Adapter Module

Ambient Operating Temperature: 0 to 60°C (in a non-condensing environment)

Storage Temperature: -40 to 85°C (in a non-condensing environment)

Communication Protocol: Modbus Plus

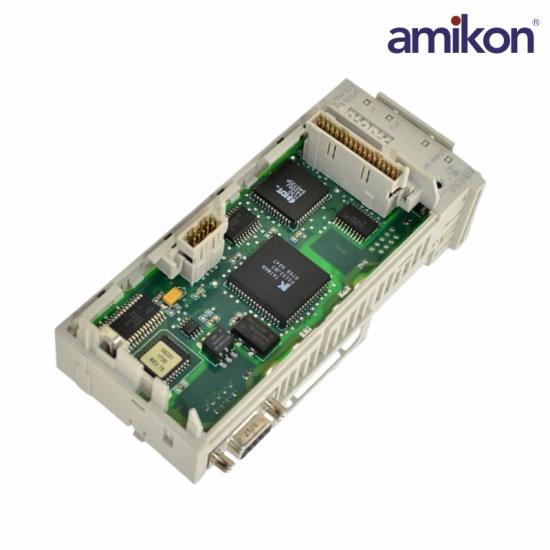

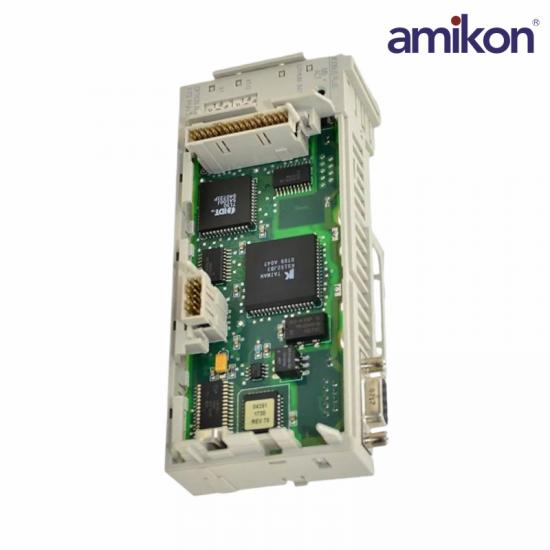

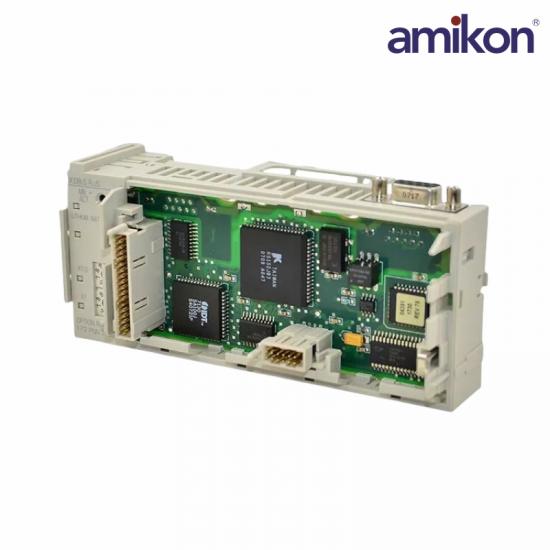

The 172PNN21022 from Schneider Electric is a Modbus Plus Adapter Module designed for precise connectivity and control. This device operates on a supply voltage of 5 Volts DC and incorporates a 9-pin D-shell connector for users.

The Schneider Electric Modicon Momentum 172PNN21022 functions as a Modbus Plus Adapter Module, facilitating communication in various systems. It features a compact design, measuring 0.98 inches in height, 5.63 inches in width, and 2.37 inches in depth. Weighing only 0.19 pound (0.085 kilogram), it is lightweight and easy to integrate into existing installations.

This device is equipped with a 9-pin D-shell Modbus Plus connector, making connections straightforward. The assembly requires a rated supply voltage of 5 Volts DC to operate efficiently. Current consumption ranges from 200 to 350 milliamperes when supplied with 24 Volts DC, ensuring sufficient energy for its functions.

The 172PNN21022 product boasts a conformal coating that enhances its durability in various operating environments, though its protection class is rated at IP20, indicating it is best used within controlled settings. Users can monitor the communication status via a single LED indicator on the device.

Operating ambient temperatures range from 0 to 60°C, provided that conditions remain non-condensing. For storage, this module can handle temperatures between -40 and 85°C, making it capable of withstanding diverse environmental conditions. When considering altitude, the operating altitude is limited to under 6,561 feet (2,000 meters), adhering to standard operational boundaries.

Additionally, the 172PNN21022 contains a lithium battery, which has an estimated lifespan of approximately 5 years, assuring reliable long-term functionality. Overall, this module is engineered to enhance Modbus Plus communication under specified conditions.
