Schneider ATV212HD75N4 Variable Speed Drive

ATV212HD75N4
ATV212HD75N4
ATV212HD75N4

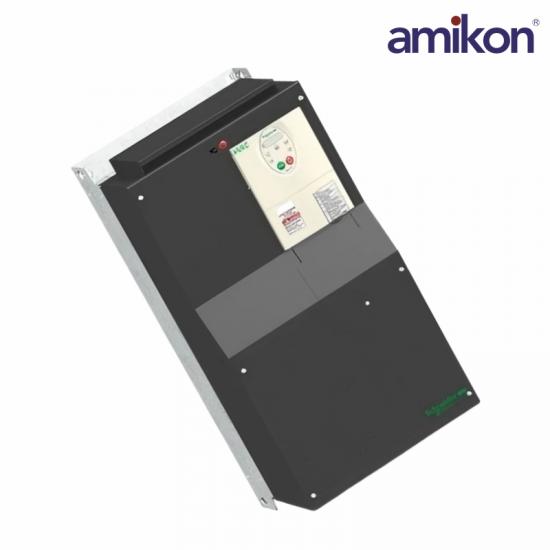

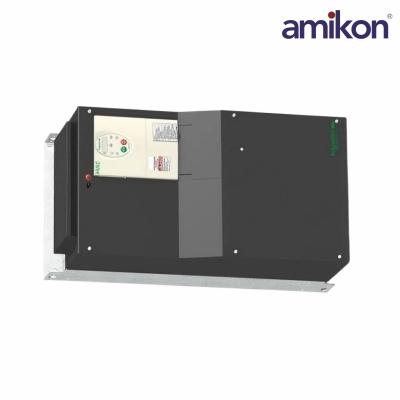

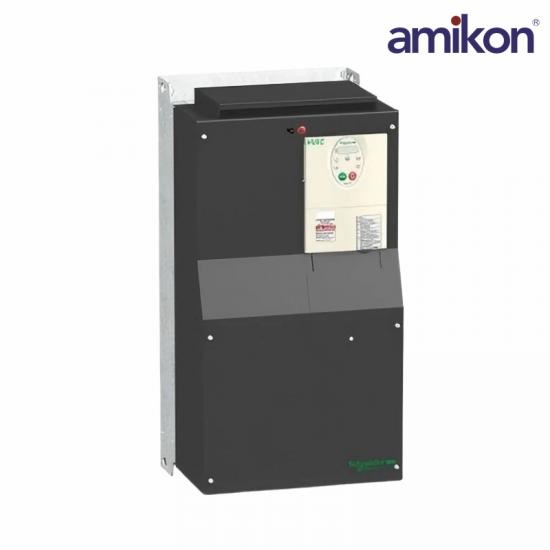

Schneider ATV212HD75N4 Variable Speed Drive

  • Brand/Manufature:

    Schneider
  • Product Origin:

    France
  • Lead Time:

    IN STOCK
  • Condition:

    Brand New And 100% Original
  • Certificate:

    Coo
Part Number: ATV212HD75N4
Manufacturer: Schneider Electric
Device Short Name: ATV212
Range of Product: Altivar 212
Product or Component Type: Variable speed drive
Product Destination: Asynchronous motors
Network Number of Phases: 3-phase
Motor Power (kW): 75 kW
Motor Power (hp): 100 hp
Supply Voltage Limits: 323…528 V
Supply Frequency: 50…60 Hz -5…+5 %
Line Current: 141.8 A at 380 V / 111.3 A at 480 V
Apparent Power: 105.3 kVA at 380 V
Continuous Output Current: 160 A at 380 V / 160 A at 460 V
Maximum Transient Current: 176 A for 60 s
Speed Drive Output Frequency: 0.5…200 Hz
Speed Range: 1…10
Speed Accuracy: ±10 % of nominal slip (0.2 Tn to Tn)

This Altivar 212 variable speed drive can feed 3-phase asynchronous motors. Its protection index is IP21 and it has a built-in EMC filter. It works at a rated power up to 75kW / 100hp and a rated voltage from 380V to 480V AC. Its design is based on eco-energy with a reduction in energy consumption of up to 70% compared to a conventional control system. Thanks to its cable temperature rise reduction technology, the Altivar 212 drive offers immediate, disturbance-free operation avoiding additional options such as a line choke or DC choke to deal with current harmonics. It weighs 55.4kg and its dimensions are, 320mm wide, 630mm high, 290mm deep. It is specifically designed for the most common fluid management applications in tertiary sector buildings (HVAC) like heating, ventilation, air conditioning and pumping. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, C-Tick and NOM certified. The Altivar 212 offers optional motor chokes which can increase the maximum cable lengths between the drive and the motor and limit disturbance at the motor terminals. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. The Altivar 212 drive can easily be adapted to all building management systems thanks to its numerous functions and communication protocols integrated as standard, Modbus, METASYS N2, APOGEE FLN P1 and BACnet. It complies with environmental protection directives such as RoHS, WEEE, etc.



 +86 18965423501                                     sales7@amikon.cn                                 AMKPLC

1)We have a strong inventory of more than ten brands in stock. I will provide you with the best price and the shortest delivery time.

2)Shipment:DHL,UPS,TNT,CHIRLINE,FEDEX

3) Speed: Fast response and efficient delivery.

4)Professional: Solid business organization

5)International: A network of global partners and preferred suppliers.



FAQ

Q: Is your product new or refurbished?

A: All our products are original new with one year warranty.

Q: How many days the goods will arrive my hands if I place the order now?

A: As soon as we receive the payment, I will ship the products immediately. It usually take 3-5 days from China to your hands.

Q: Could you give me some discount?

A: Contact Lisa to get more discount.

Q:Can you ship the goods to my country?

A: Pls don't worry ,We can ship the goods to worldwide

Q:What payment mothod we used?

A:We usually use T/T (Telegraphic Transfer).

Q:Can I contact you on Email?

A: You can contact me online to get my email add



Amikon sells new and surplus products and develops channels to purchase such products.

This site is not approved or endorsed by any of the listed manufacturers or trademarks.

Amikon is not an authorized distributor, dealer or representative of the products displayed on this site.

All product names, trademarks, brands and logos used on this site are the property of their respective owners.

The description, illustration or sale of products under these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
