Range of Product: Altivar 61

Product or Component Type: Variable speed drive

Component Name: ATV61

Product Specific Application: Pumping and ventilation machines

Motor Power (kW): 22 kW, 3-phase 380…480 V

Motor Power (hp): 30 hp, 3-phase 380…480 V

Power Supply Voltage: 380…480 V -15…+10 %

Supply Number of Phases: 3-phase

Assembly Style: With heat sink

Apparent Power: 32.9 kVA at 380 V, 3-phase (22 kW / 30 hp)

Maximum Prospective Line Isc: 22 kA, 3-phase

Maximum Transient Current: 57.6 A for 60 s, 3-phase

Nominal Switching Frequency: 12 kHz

Switching Frequency: 1…16 kHz adjustable / 12…16 kHz with derating factor

Power Supply Voltage Limits: 323…528 V

Power Supply Frequency: 50…60 Hz -5…+5 %

Power Supply Frequency Limits: 47.5…63 Hz

Continuous Output Current: 48 A at 12 kHz, 380 V / 40 A at 12 kHz, 460 V (3-phase)

Output Frequency: 0.1…599 Hz

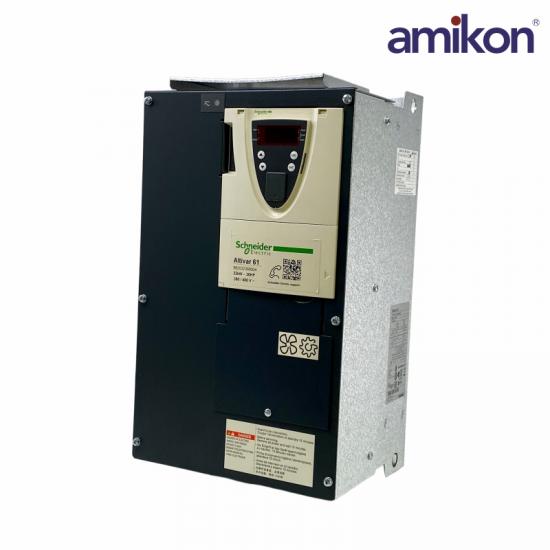

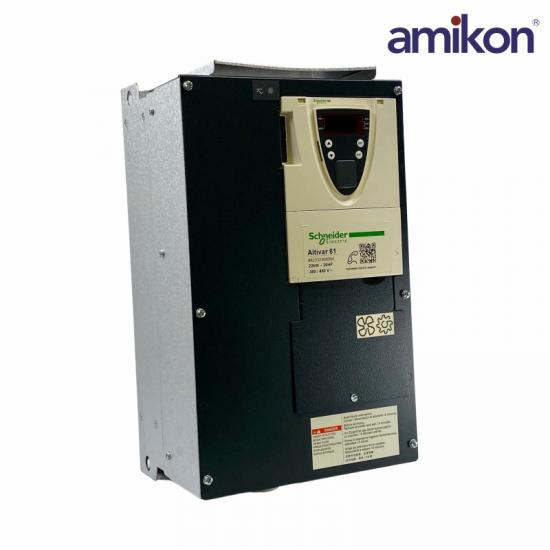

The Schneider Electric ATV61HD22N4 is a prominent member of the Altivar 61 series, representing a robust AC drive designed to cater to diverse industrial applications. With its specific focus on pumping and ventilation machines, this drive stands out for its reliability and efficiency, offering a range of features tailored to meet the demands of such operations.

As a renowned name in the realm of industrial , Schneider Electric brings its expertise to bear in the creation of the ATV61HD22N4 AC Drive. With a reputation for innovation and quality, the manufacturer ensures that this product adheres to stringent standards, providing customers with a reliable solution for their motor control needs.
