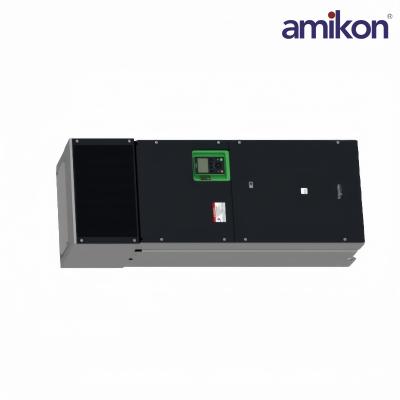

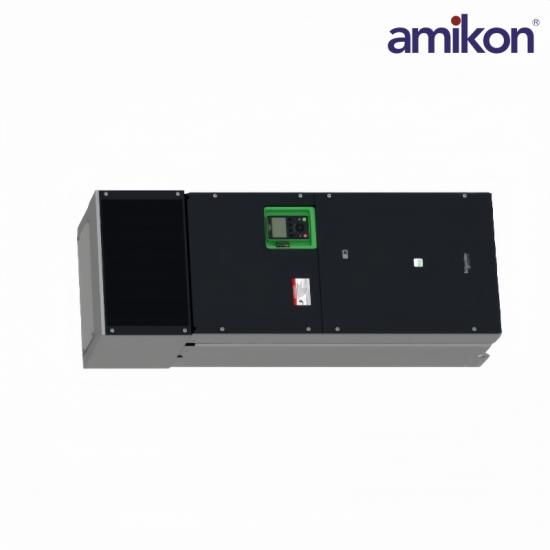

Schneider ATV630C22N4 Variable Speed Drive

ATV630C22N4
ATV630C22N4
ATV630C22N4

Schneider ATV630C22N4 Variable Speed Drive

  • Brand/Manufature:

    Schneider
  • Product Origin:

    France
  • Lead Time:

    IN STOCK
  • Condition:

    Brand New And 100% Original
  • Certificate:

    Coo
Range of Product: Altivar Process ATV600
Product Specific Application: Process and utilities
Product or Component Type: Variable speed drive
Variant: Standard version
Device Short Name: ATV630
Mounting Mode: Wall mount
Communication Port Protocol: Modbus TCP, Ethernet, Modbus serial
Rated Supply Voltage [Us]: 380...480  V -15... +10 %
Relative Symmetric Mains Voltage Tolerance: ±10 %
Relative Symmetric Network Frequency Tolerance: ±5 %
Nominal Output Current: 427.0 A
Degree of Protection (IP): IP21
Supply Frequency: 50...60  Hz -5... +5 %
Speed Drive Output Frequency: 0.1…500 Hz
Safety Function: STO (Safe Torque Off) SIL 3
Discrete Input Number: 8
Discrete Output Number: 0
Nominal Switching Frequency: 2.5 kHz
Braking to Standstill: By DC injection
Brake Chopper Integrated: No
Maximum Input Current per Phase: 397.0 A
Maximum Output Voltage: 480.0 V

This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports. It works at a rated supply voltage from 380V to 480V AC. This drive provides up to 30% energy saving when on standby due to the innovative ‘‘Stop and Go’’operation without additional costs. It is suitable for motors with power rating up to 220kW / 350hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 160kW / 250hp for applications requiring significant overload (up to 150%). It weighs 172kg and its dimensions are, 440mm wide, 1195mm high, 380mm deep. This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications. Accessories (fan kit, graphic display terminal) and options (I/O expansion modules, communication modules, EMC input filters) are available with Altivar Process ATV600 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a wall. This new concept of drives meets the major needs of process and utilities in terms of equipment efficiency and total cost of ownership by supporting the energy management, asset management and also the overall performance of the process.
