Range of Product: Altivar 71

Product or Component Type: Variable speed drive

Component Name: ATV71

Product Specific Application: Complex, high-power machines

Motor Power (kW): 5.5 kW, 3-phase at 380...480 V

Motor Power (hp): 7.5 hp, 3-phase at 380...480 V

Maximum Motor Cable Length:

50 m shielded cable

100 m unshielded cable

Power Supply Voltage: 380...480 V -15...+10 %

Network Number of Phases: 3-phase

Line Current:

20.3 A at 380 V, 3-phase (5.5 kW / 7.5 hp)

17 A at 480 V, 3-phase (5.5 kW / 7.5 hp)

EMC Filter: Integrated

Assembly Style: With heat sink

Variant: Without remote graphic terminal

Apparent Power: 13.4 kVA at 380 V, 3-phase (5.5 kW / 7.5 hp)

Prospective Line Isc: 22 kA, 3-phase

Output Frequency: 0.1…599 Hz

Nominal Switching Frequency: 4 kHz

Switching Frequency:

1…16 kHz adjustable

4…16 kHz with derating factor

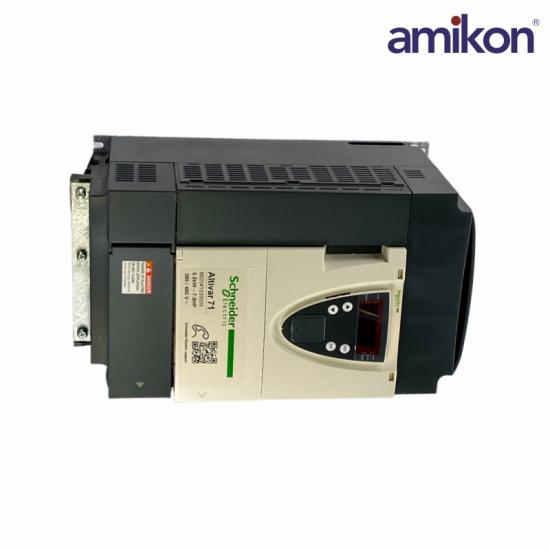

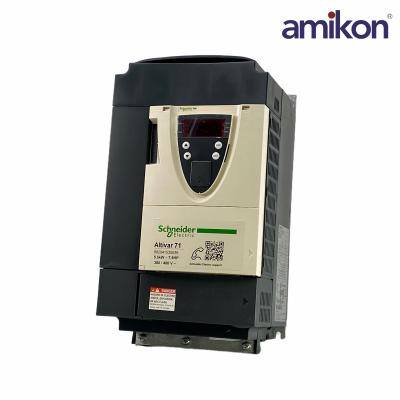

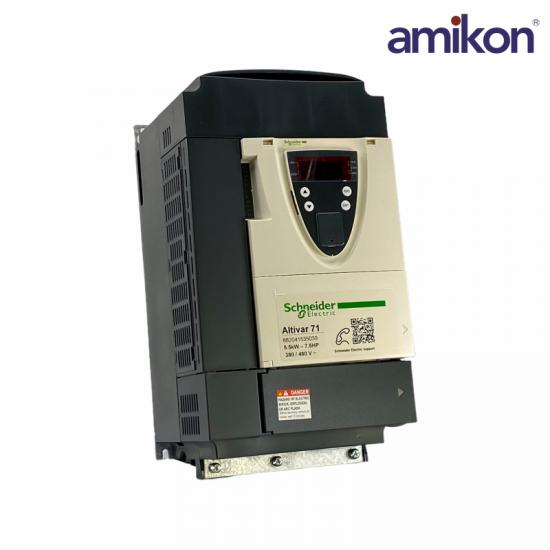

Schneider Electric's ATV71HU55N4Z denotes a variable speed drive within the Altivar 71 lineup. It operates at a voltage range of 380 to 480 volts AC, tailored for 3-phase applications. This drive boasts an impressive motor power rating of 5.5 kW, translating to approximately 7.5 horsepower, making it suitable for a variety of industrial motors.

The operational characteristics include a nominal input current of 14.3 A and a nominal output current rated at 11 A. Designed to function at input frequencies of either 50 or 60 Hz, the ATV71HU55N4Z adapts to different electrical standards. The unit is housed in an enclosure rated IP20, indicating suitability for use in environments free from extreme dust and moisture.

Operating temperature ranges from -10 to 50 degrees Celsius, allowing for versatile applications across different environmental conditions. The control capabilities are robust, featuring CANopen and Modbus interfaces for seamless communication with various systems.

This drive has compact dimensions of 295 mm in height, 175 mm in width, and 187 mm in depth, while its weight is approximately 4.8 kg (10.58 lbs). The design considerations offer ease of integration into existing setups, ensuring that performance and reliability can be maintained across a wide range of operational tasks.
