Range of Product：Altivar Process ATV900

Product or Component Type: Variable Speed Drive

Specific Application: Industrial process applications

Phase: 3-phase

Mounting Mode: Wall-mounted

Rated Supply Voltage：380…480 V

Voltage Tolerance: –15% to +10%

Symmetric Mains Voltage Tolerance: ±10%

Network Frequency Tolerance: ±5%

Nominal Output Current: 302 A

Maximum Input Current per Phase: 284 A

Maximum Output Voltage: 480 V

Maximum Output Frequency: 599 Hz

Nominal Switching Frequency: 2.5 kHz

Number of Inputs: 10

Number of Outputs: 2

Relay Output Refresh Time：5 ms ± 0.5 ms (R1, R2, R3)

Number of Addresses: 1…247

Data Format: 8 bits, configurable parity

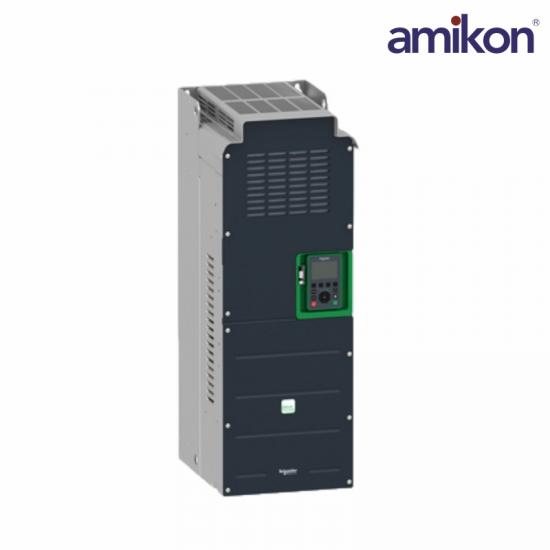

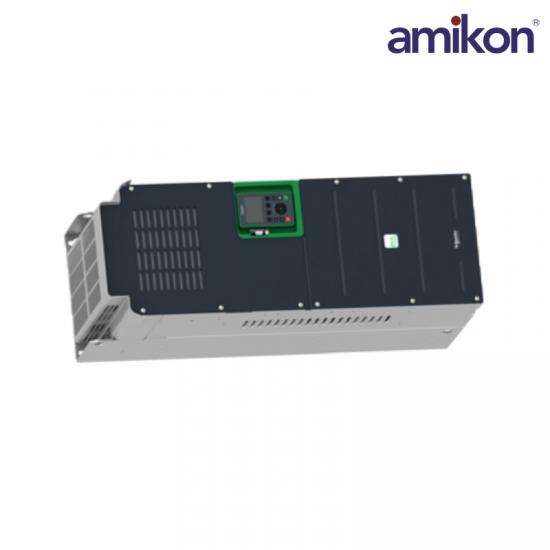

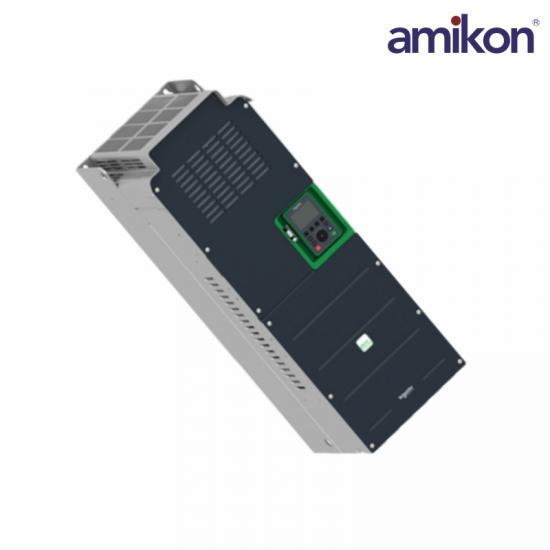

This Altivar Process ATV900 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It is suitable for motors with power rating up to 160kW/250HP for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 132kW/200HP for applications requiring significant overload (up to 150%). It works at a rated supply voltage from 380Vac to 480Vac. This variable speed / frequency drive (VSD / VFD) is specifically designed for industrial processes. In the following market segments, oil and gas, mining, minerals and metals, food and beverage water and wastewater. It offers high motor performance on any motor and total control of any kind of coupling in master/slave applications. Network services help ensure operation continuity even in case of connection breakdown. Web server and data logging help reduce downtime through fast troubleshooting and preventive maintenance. Its advanced connectivity, including EtherNet/IP and Modbus TCP, allows deep integration into architectures.
