Range of Product: Modicon X80

Product or Component Type: Analog Input Module

Electrical Connection: 28 ways, 1 connector

Analogue Input Number: 8

Analog/Digital Conversion: 16 bits

Analogue Input Resolution: 15 bits + sign

Precision of Internal Conversion Resistor: 0.1% – 15 ppm/°C

Type of Filter: First order digital filtering

Fast Read Cycle Time: 1 ms + 1 ms × number of channels used

Nominal Read Cycle Time: 9 ms for 8 channels

Minimum Crosstalk Attenuation: 80 dB

Common Mode Rejection: 100 dB

Vibration Resistance: 3 gn

Shock Resistance: 30 gn

Ambient Air Temperature for Storage: -40 to 85 °C

Ambient Air Temperature for Operation: 0 to 60 °C

Relative Humidity: 5–95% at 55 °C without condensation

IP Degree of Protection: IP20

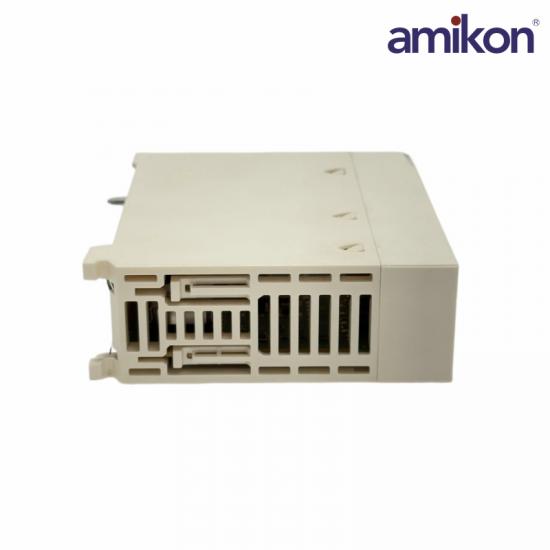

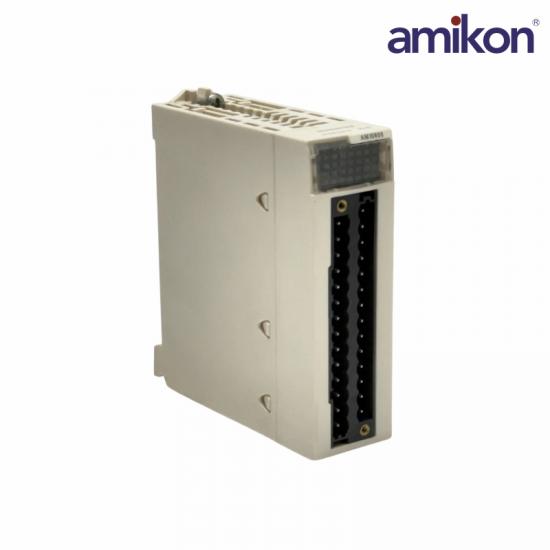

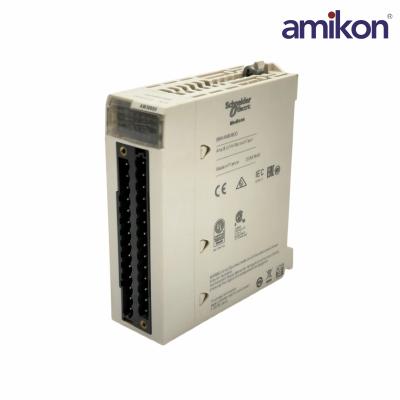

The Schneider Electric BMXAMI0800 is classified as an analog input module within the Modicon series. It is engineered for fast processing, offering an impressive nominal cycle time of 9 milliseconds and an even quicker fast cycle time of just 1 millisecond. With the capability to manage 8 separate channels, this device is particularly useful in applications requiring rapid data acquisition from multiple sources.

The BMXAMI0800 has a resolution rating of 16 bits, which ensures precise data measurement. It employs a first-order digital filter to improve the quality of incoming signals. This module is designed to be mounted vertically, making it adaptable to various installation environments.

Frequently asked questions：

Q1: What is the BMXAMI0800?

A: The BMXAMI0800 is an analog input module from Schneider Electric, designed for use in Modicon M340 PLC systems to acquire and process analog signals in industrial applications.

Q2: What is the resolution of the module?

A: The BMXAMI0800 module provides 16-bit resolution, ensuring high-accuracy signal measurement and conversion.

Q3: What type of filtering does it use?

A: It features a first-order digital filter, which helps reduce signal noise and improve measurement stability.
