Manufacturer: Schneider Electric

Product Type: Discrete Input Module

Product Line: Modicon X80

Part Number: BMXDDI3202K

Weight: 0.88 lbs (0.40 kg)

Series: I/O Modules

Sensor Supply Voltage: 19 to 30 V DC

Protection Rating: IP20

Number of Inputs: 32 discrete inputs

Discrete Input Type: Isolated input

Input Voltage: 24 V DC positive

Input Current Rating: 2.5 mA

Power Dissipation: 3.9 W

Status Indicator Type: LED indicators

Input Impedance: 9,600 Ω

Ambient Operating Temperature: 0 to 60 °C (non-condensing)

DC Filtering Time: 4 ms (typical) / 7 ms (maximum)

Storage Temperature: -40 to 85 °C

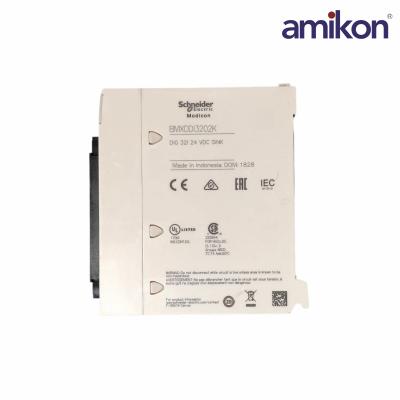

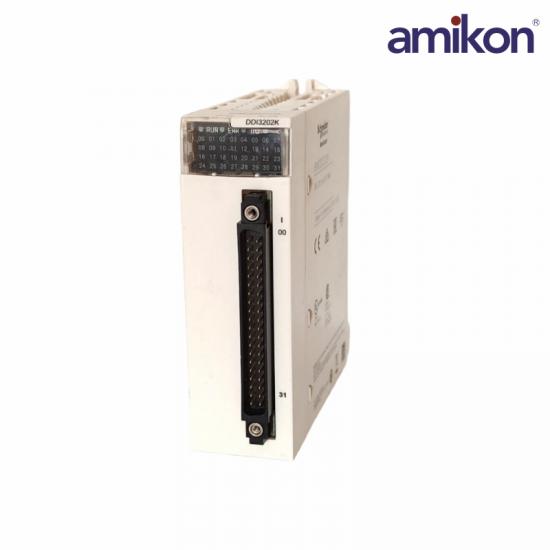

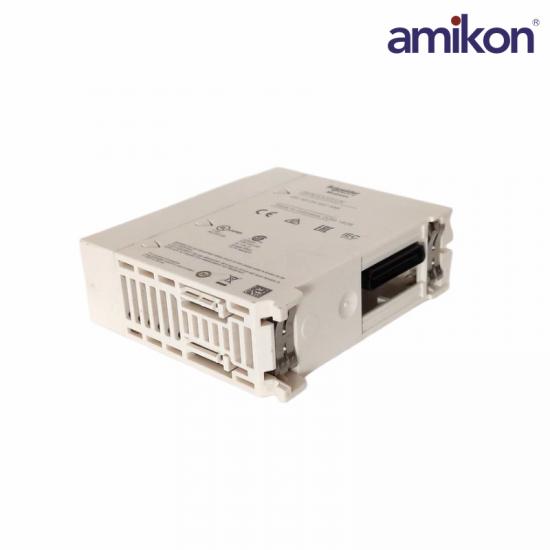

Schneider Electric's BMXDDI3202K discrete input module facilitates efficient input handling in systems. This module is equipped with 32 isolated inputs, handling input voltages at a steady 24 volts DC for reliable performance. It supports a sensor supply voltage spanning 19 to 30 volts DC, allowing compatibility with multiple sensors. The module’s compact design weighs just 0.25 pounds (0.11 kilograms).

In terms of electrical specifications, the input current rating is measured at 2.5 milliamperes, and the input impedance stands at a substantial 9,600 ohms. Power dissipation is maintained at 3.9 watts, ensuring that the module operates optimally. For easier monitoring, LED indicators are incorporated to display the status of each input.

Frequently asked questions：

Q1: What is the Schneider BMXDDI3202K used for?

A: The BMXDDI3202K is a 32-channel digital input module used in Schneider Electric PLC systems to read discrete signals from sensors or switches.

Q2: What voltage does the BMXDDI3202K require for operation?

A: The sensor supply voltage range is 19 to 30 V DC, with standard input voltage at 24 V DC positive.

Q3: How many discrete inputs does the BMXDDI3202K support?

A: The module supports 32 discrete inputs.

Q4: What is the input current rating for the BMXDDI3202K?

A: Each input has a current rating of 2.5 mA.
