Description：

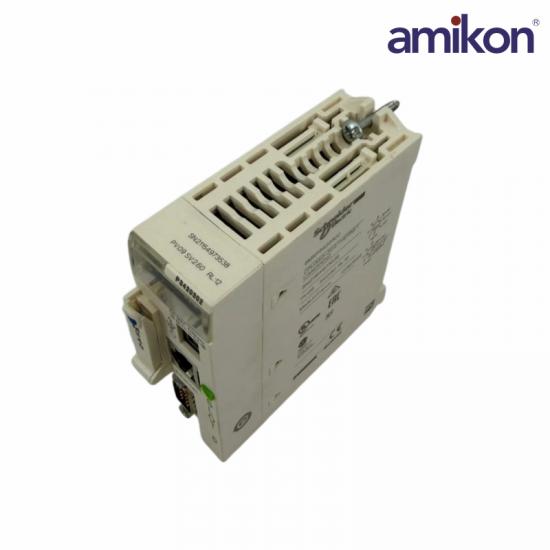

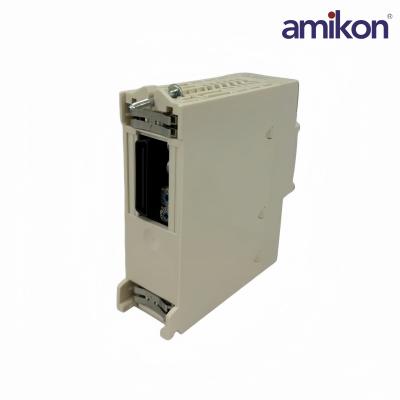

Schneider Electric's BMXP3420302 processor module is engineered for industrial solutions. It can host up to four racks with eleven slots for flexibility in configurations. This module supports a significant I/O capacity, handling either 1024 I/Os in a multi-rack setup or 704 I/Os within a single rack. Adaptable in design, it includes thirty-six application-specific channels, along with programmable loops for precise control.

In terms of motion control, the BMXP3420302 employs independent axis capabilities over the CANopen protocol for streamlined performance. It also enables two Ethernet communication modules, which enhance the system's connectivity. Managing up to 63 Server Devices via CANopen further emphasizes its networking capability. The maximum object area supported is 256 kilobytes, resulting in efficient data handling. A low system overhead of 0.13 milliseconds ensures rapid processing and response times.

Specification：

Frequently asked questions

Q1: What is the BMXP3420302?

A1: The BMXP3420302 is a Schneider Electric processor module used in Modicon M340 PLC systems for industrial and control.

Q2: What is the BMXP3420302  maximum size of object areas?

A2: The maximum object area size is 256 KB, allowing efficient data and program management.

Q3: How many application-specific channels are available?

A3: The BMXP3420302  module provides 36 application-specific channels.

Q4: What is the BMXP3420302  communication module capacity?

A4: It supports up to 2 Ethernet communication modules, enabling network connectivity.

Q5: How many CANopen devices can it manage?

A5: It can handle up to 63 CANopen server devices.

Product Applications

Manufacturing/Mechanical Processing: Equipment coordination for automated production lines, machine tool control, and material handling systems.

Water Treatment and Environmental Protection: Used in sewage treatment plants, pump station control, and water management monitoring systems.

Energy and Infrastructure: Functioning in new energy power generation, smart grid monitoring, and building systems.

Food and Beverages: Supporting process control for production methods, packaging lines, and strict hygiene requirements.

Process Industry: Such as cement, fine chemicals, and mining metallurgy, which require stable and continuous operation environments.

Key technical features

The BMXP3420302 is capable of handling these applications, mainly due to its design parameters:

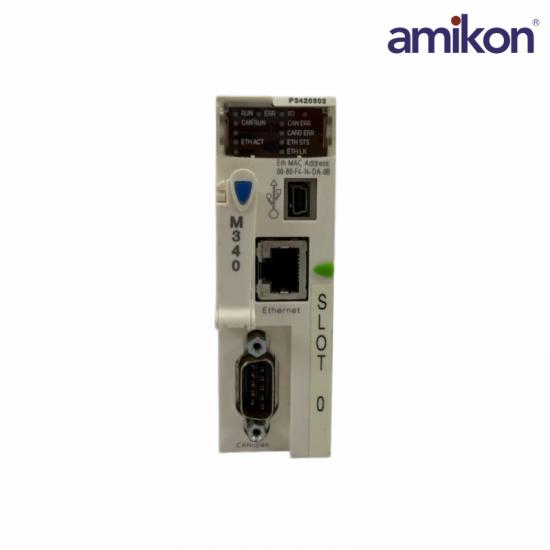

Communication interface: Built-in CANopen bus interface and Ethernet (Ethernet TCP/IP) port, facilitating connection to various drivers, sensors, and upper computer systems.

IO processing capability: Supports a maximum of 1024 discrete quantities (switching quantities) and 256 analog quantity IO, sufficient to meet the complex requirements of medium-sized factory production lines.

Environmental adaptability: Its "enhanced" version can be used in harsh environments ranging from -25°C to +70°C, suitable for certain extreme industrial factory sites.
