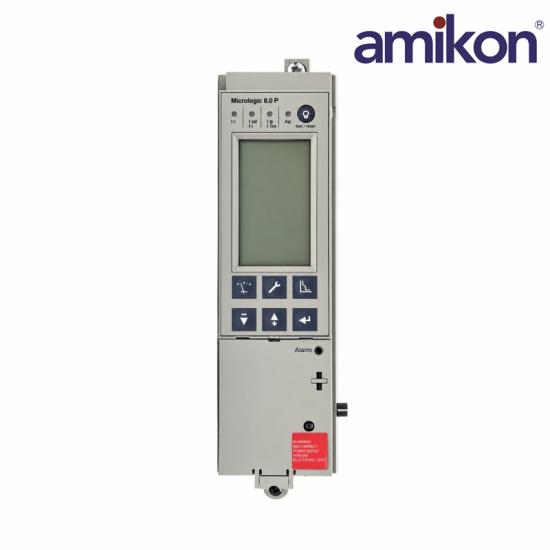

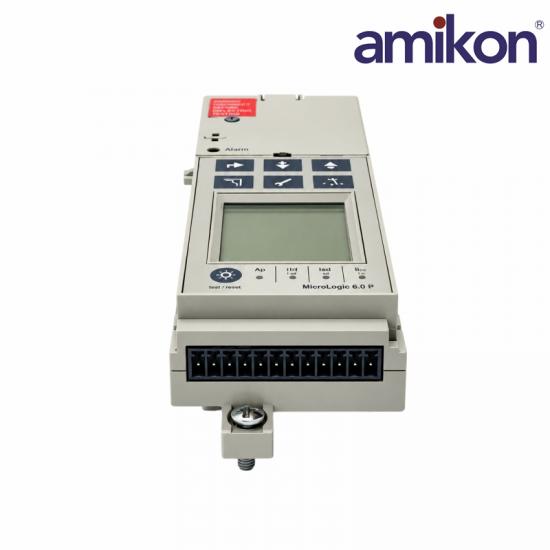

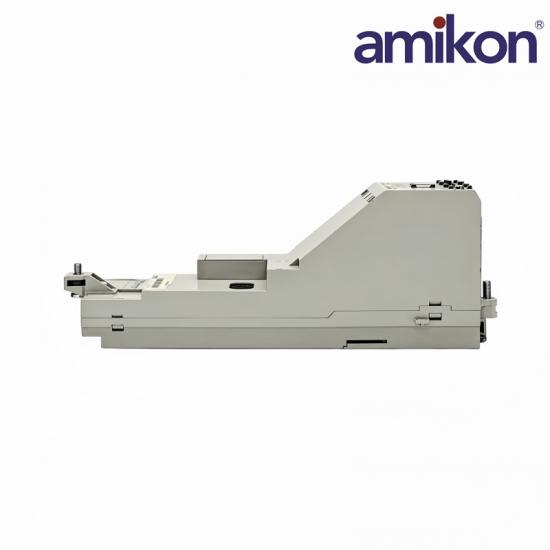

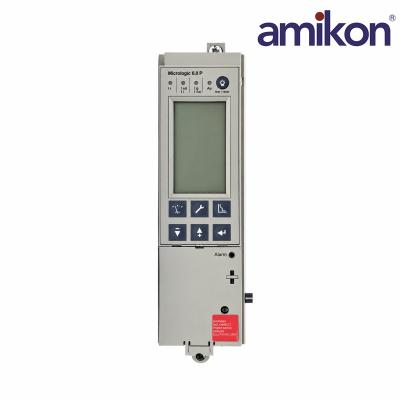

SCHNEIDER ELECTRIC S047059 MICROLOGIC 6.0 P

Technical Specifications

Published identification, configuration, interface and operating data for this LSIG Trip Unit.

01Product IdentityOfficial Schneider Electric product data

MANUFACTURERSchneider Electric

USER REFERENCES047059

CATALOG REFERENCE47059

PRODUCT DESIGNATIONMicrologic 6.0 P Trip Unit

02Protection SettingsPublished LSIG protection data

PROTECTION FUNCTIONSLSIG

LONG-TIME PICKUP0.4–1 × In

SHORT-TIME PICKUP1.5–10 × Ir

INSTANTANEOUS PICKUP2–15 × In; off

03Ground-Fault DataPublished Micrologic 6.0 P settings

GROUND-FAULT ACCURACY±10%

THRESHOLD RANGE0.2–1 × In

HIGH-CURRENT SETTINGS500–1200 A

DELAY SETTINGS0–0.4 s

04Operating TimesPublished protection timing data

SHORT-TIME BREAK TIME80–500 ms

GROUND-FAULT BREAK TIME80–500 ms

INSTANTANEOUS RESET TIME20 ms max.

INSTANTANEOUS BREAK TIME50 ms max.

SCHNEIDER ELECTRIC S047059 MICROLOGIC 6.0 P PRODUCT SUPPORT

Frequently Asked Questions

Identification, configuration, application and ordering guidance for S047059 MICROLOGIC 6.0 P.

How should this trip unit be identified?

Use the Schneider Electric catalog reference 47059 and the Micrologic 6.0 P marking; retain S047059 as the submitted stock or label reference.

Which circuit breakers accept this control unit?

Schneider Electric lists catalog 47059 for MasterPact NT and NW circuit breakers.

Which protection functions are included?

Micrologic 6.0 P provides long-time, short-time, instantaneous and ground-fault protection, identified as LSIG.

How is the long-time pickup adjusted?

The published Ir settings range from 0.4 to 1 times the rated current In, with intermediate steps including 0.5, 0.6, 0.7, 0.8, 0.9, 0.95 and 0.98.

Which short-time and instantaneous ranges apply?

Short-time pickup is adjustable from 1.5 to 10 times Ir; instantaneous pickup is selectable from 2 to 15 times In or can be switched off.

How is ground-fault protection coordinated?

Select the Ig threshold and tg delay, then use the ZSI terminals when zone-selective interlocking is required for discrimination.

Which details should be checked before ordering?

Confirm catalog reference 47059, Micrologic 6.0 P, the MasterPact frame, sensor or rating plug, breaker rated current and required ground-fault scheme.
