Brand/Manufature:
SchneiderProduct Origin:
FRANCELead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:
Coo|
Rated Supply Voltage [Us]: 208 … 480 V AC (–15 … +10 %) |
|
Supply Frequency: 50 … 60 Hz (±5 %) |
|
Continuous Output Current: 13 A (at 8 kHz) |
|
Peak Output Current (3s): 72 A |
|
Continuous Power: 13 kW |
|
Nominal Power: 7 kW |
|
Switching Frequency: 8 kHz |
|
Electrical Connection: Terminal 0.75 … 10 mm² (AWG 18 … AWG 8, CN1) |
|
Tightening Torque (CN10): 6.02 lbf·in (0.68 N·m) |
|
Number of Digital Inputs: 4 |
|
Discrete Input Voltage: 24 V DC |
|
Number of Digital Outputs: 2 |
|
Discrete Output Voltage: 24 V DC |
|
Contact Bounce Time: > 1 ms (complement of STO_A and STO_B) |
|
Communication Interface: SERCOS III (Integrated) |
|
Width: 4.3 in (108 mm) |
|
Height: 10.8 in (274.1 mm) |
|
Depth: 8.5 in (217 mm) |
|
Net Weight: 11.02 lb (5 kg) |

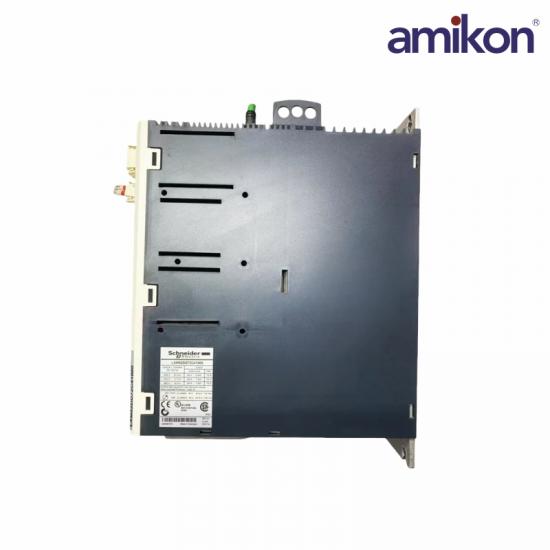

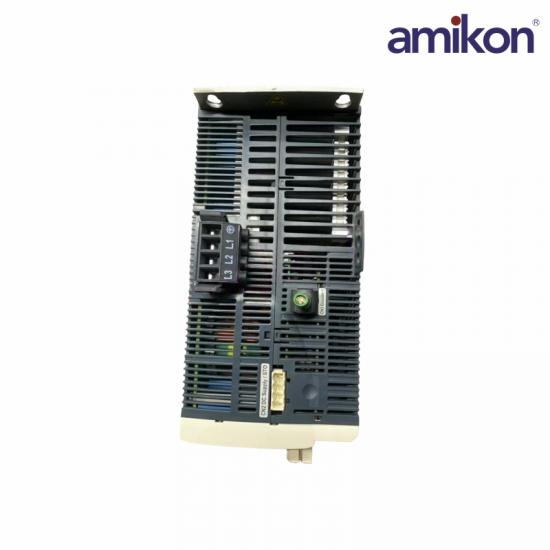

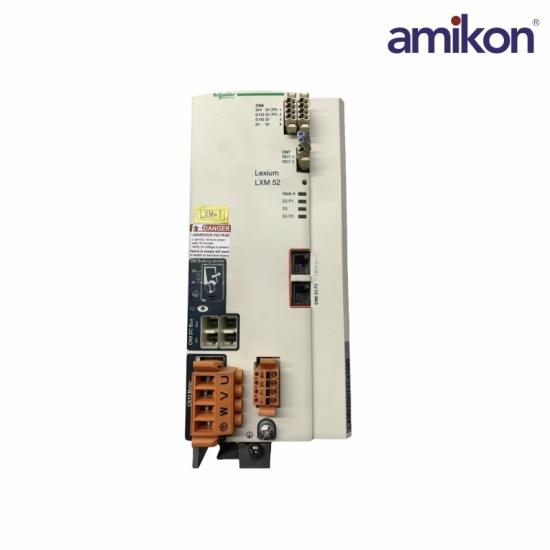

This product is part of the Lexium 52 & Motors range, an offer of standalone servo drives for PacDrive 3. The single drive features SERCOS III physical interface. It offers 4 digital inputs and 2 digital outputs. It is a single drive with a rated supply voltage of 208V to 480V, a continuous output current of 13A and a continuous power of 7kW. It is furnished with connector terminals for electrical connection. It is an IP20 rated product. It weighs 5kg. It is suitable for general machine control, packaging machine and material handling applications. This product is certified by CE. It meets EN/IEC 61800-3 standards. This product is compatible with servo motor SH3 (100mm, 4 motor stacks), servo motor SH3 (140mm, 2 motor stacks) and servo motor SH3 (140mm, 3 motor stacks). Lexium 52 provides an ideal counterbalance to the Lexium 62 multi-axis servo system, making the PacDrive system one of the most flexible motion control solutions. Lexium Stand alone servo drives from 0.4kW and 7kW for PacDrive based solutions.
