Description：

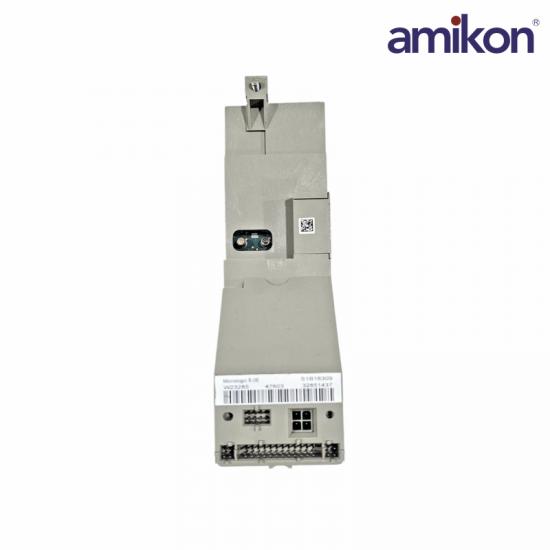

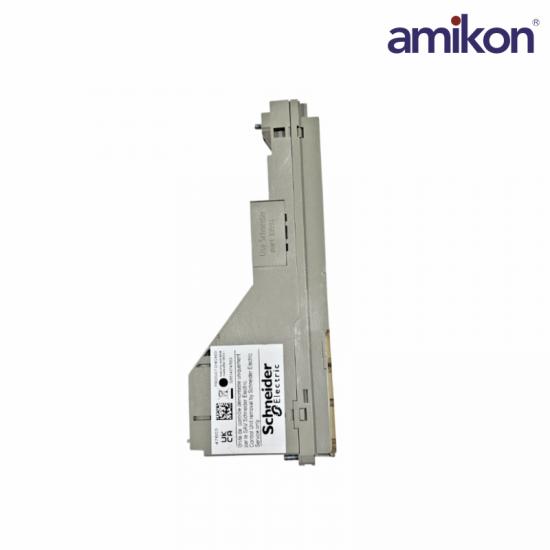

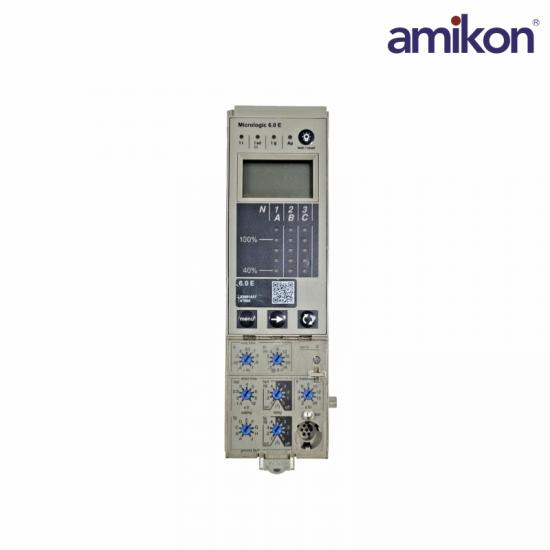

Micrologic 6.0E (Energy meter) is an electronic control unit used on Masterpact NW 08 to 63 drawout circuit breakers. This control unit has a selective and earth fault protection (LSIG) and is designed to protect power circuits and loads. It embeds adjustable long time protection against overloads. It provides also adjustable short-time protection and instantaneous protection against short-circuits. Micrologic 6.0E offers an adjustable earth fault protection. Micrologic 6.0E indicates overloads with an Alarm LED. It is able to display the trip cause through 3 others LEDs. Micrologic 6.0E is equipped with a digital LCD screen that displays the active energy with 2% accuracy. This control unit can be associated with drawout Masterpact NW basic frame.

Specification：

Frequently asked questions

Q1: What is the SCHNEIDER MICROLOGIC 6.0 E Control Unit?

A1: It is an electronic control unit used in Schneider Electric circuit breakers for advanced protection, monitoring, and fault management functions in electrical distribution systems.

Q2: What is the MICROLOGIC 6.0 E instantaneous protection pick-up adjustment range?

A2: The MICROLOGIC 6.0 E instantaneous protection pick-up adjustment range (Ii) is adjustable from 2 to 15 × In, with an OFF option available.

Q3: What type of ground-fault protection adjustment is supported?

A3: The ground-fault protection pick-up adjustment type (Ig) is adjustable with 9 selectable settings.

Q4: What is the MICROLOGIC 6.0 E operating ambient temperature range?

A4: The MICROLOGIC 6.0 E operating ambient air temperature range is -25°C to +70°C.

Q5: What is the MICROLOGIC 6.0 E storage temperature range?

A5: The MICROLOGIC 6.0 E storage ambient air temperature range is -40°C to +85°C.

Product Applications

Automotive Manufacturing and Assembly Lines: Protect sensitive automated production line equipment by eliminating potential hazards through ground fault protection, reducing the risk of unplanned downtime.

Data Centers: Monitor the energy consumption and load balance of precision power distribution cabinets, ensuring the safety and stability of power supply to the computer room.

Petrochemical and Heavy Industry: Provide reliable withstand capability under harsh industrial environments with a pollution level of three, handling power supply protection for large-capacity motors and transformers.
