Description：

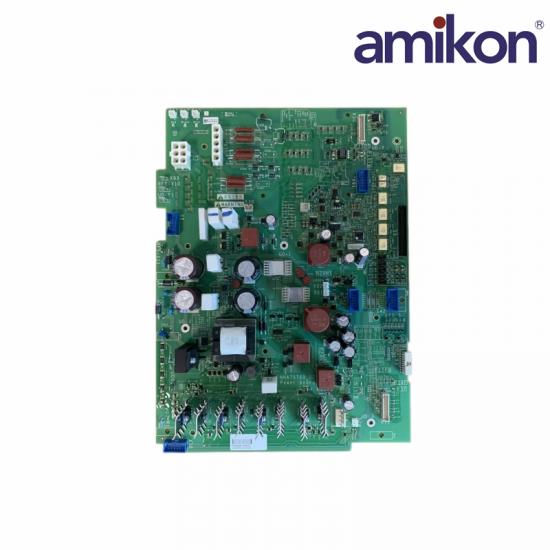

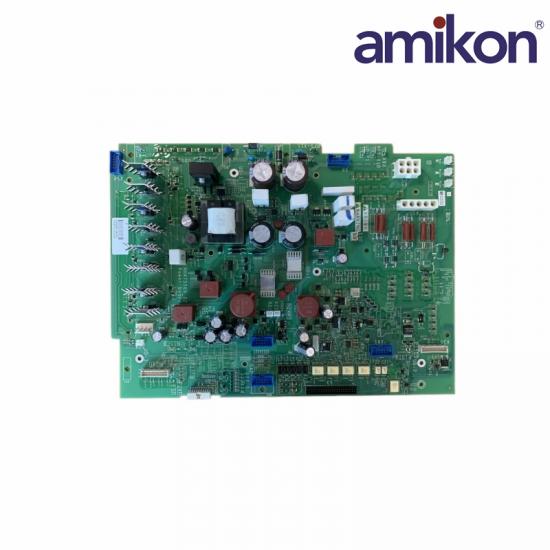

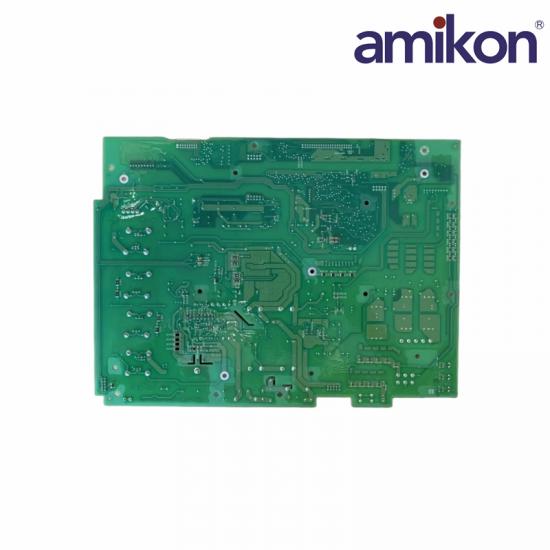

The Schneider NHA75769_02 Power Control Drive Board is an industrial drive control module intended for high-power motor control and variable speed drive applications. The board serves as a key component within motor drive systems, providing control, monitoring, and signal processing functions to ensure efficient and reliable operation of large industrial motors.

Supporting motors operating at standard frequencies of 50 Hz or 60 Hz, the NHA75769_02 accommodates rated motor power levels of 220 kW, 250 kW, and 315 kW, making it suitable for heavy-duty industrial applications. The board is compatible with motors rated between 380 V and 440 V, allowing integration into a wide range of industrial power systems.

Specification：

Frequently asked questions

Q1: What is the Schneider NHA75769_02 Power Control Drive Board used for?

A1: The Schneider NHA75769_02 Power Control Drive Board is designed to regulate and control power delivery in industrial motor drive systems.

Q2: What motor frequencies does the NHA75769_02 support?

A2: The NHA75769_02 drive board is compatible with standard motor frequencies of 50 Hz and 60 Hz, allowing it to operate with most industrial AC power systems worldwide.

Q3: What motor power ratings are supported?

A3: The NHA75769_02 supports motors with rated power of 220 kW, 250 kW, and 315 kW, making it suitable for high-power industrial drive applications.

Q4: What is the NHA75769_02 rated motor voltage?

A4: The NHA75769_02 drive board is designed for motors with a rated voltage of 380 V to 440 V AC, ensuring compatibility with common three-phase industrial power supplies.

Product Applications

Water and wastewater treatment plants: Control large, high-power water pumps, booster pumps, and blowers to optimize flow control and reduce plant power consumption.

Chemical and petroleum refining plants: Drive long-distance transfer pumps, industrial mixers, and compressors to ensure stable and continuous operation of complex chemical processes.

Cement and building materials manufacturing plants: Control the starting and speed regulation of heavy equipment such as rotary kilns, large conveyor belts, vertical mills, and exhaust fans.

Metallurgical and mining washing plants: Apply power regulation to ore crushers, winches, and high-pressure dust collectors in high-dust, high-load environments.

Large power and heating plants: Used for frequency conversion retrofitting of boiler induced draft fans, primary air fans, and circulating water pumps to improve power plant operating efficiency.
