Description：

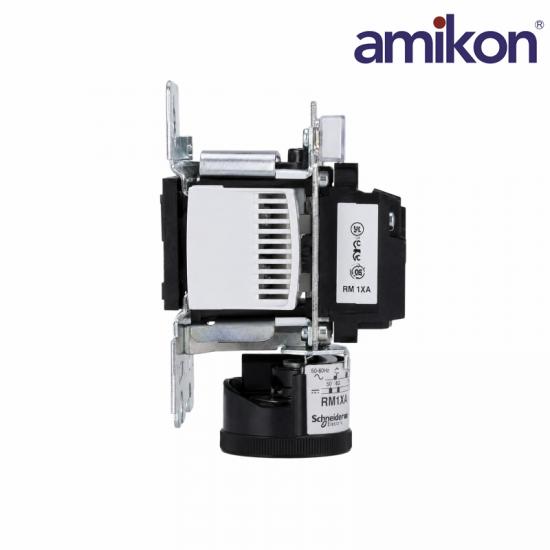

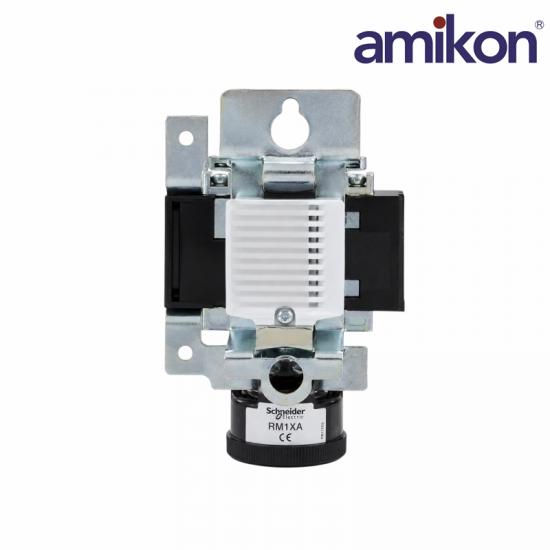

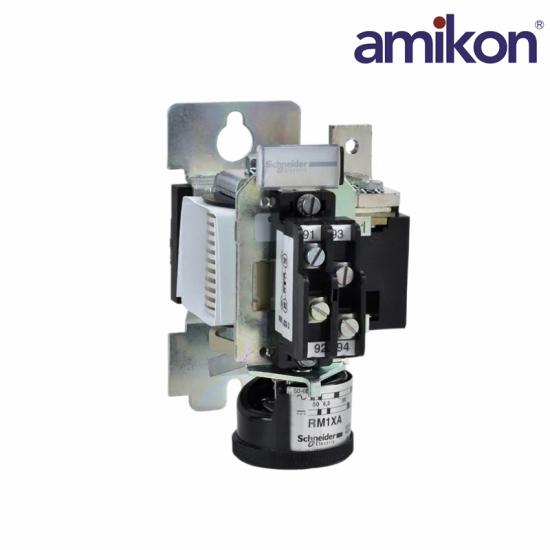

The Schneider Electric RM1-XA315 is a single-pole magnetic overcurrent relay from the TeSys RM1 range, developed for electrical protection applications. It has a rated operational current of 146–230 A for both AC and DC circuits, a continuous output current of 315 A, and an adjustable magnetic tripping current range of 250–800 A. The relay supports rated operational voltages up to 600 V AC at 0–60 Hz and 600 V DC, and it is equipped with one changeover auxiliary contact.
The RM1-XA315 is suitable for operation in ambient temperatures from −40 to +60 °C and can be stored at temperatures from −60 to +70 °C. It supports installation at altitudes of up to 3,000 m and complies with VDE 0660 and NF C 63-650 standards.

Specification：

Brand	Schneider Electric
Model	RM1-XA315
Rated Operational Current [Ie]	146–230 A AC
Rated Operational Current [Ie]	146–230 A DC
Magnetic Tripping Current	250–800 A
Continuous Output Current	315 A AC
Continuous Output Current	315 A DC
Conventional Free-Air Thermal Current [Ith]	10 A
Rated Operational Voltage [Ue]	600 V AC, 0–60 Hz, power circuit
Rated Operational Voltage [Ue]	600 V DC, power circuit
Network Frequency	0–60 Hz
Auxiliary Contact Composition	1 C/O
Operating Ambient Temperature	−40 to +60 °C
Storage Ambient Temperature	−60 to +70 °C
Maximum Operating Altitude	≤3,000 m

Frequently asked questions

Q : What kind of product is the Schneider RM1-XA315?
A: It is a classic electromagnetic overload/magnetic protection relay (typically belonging to the legacy Telemecanique / TeSys product lines) used for overload and short-circuit protection in industrial motors and control circuits.

Q : How should the RM1-XA315 be mounted?
A: It typically supports standard DIN rail mounting or can be screwed directly onto the mounting plate inside the control cabinet.

Q : What is the trip current adjustment range of the RM1-XA315?
A: It features a wide adjustable threshold generally spanning from 250 A to 800 A.

Q : What are the auxiliary contact voltage ratings?
A: The control contacts are rated for standard industrial control voltages, reaching up to 600V AC or higher for circuit integration.

Product Applications

Heavy industrial manufacturing plants: Control cabinets for heavy-duty conveyors, crushers, and mixers in cement plants, steel mills, and mines.
Water treatment and environmental protection plants: Protection for water pumps, pumping station control systems, and blowers in wastewater treatment plants and waterworks.
Chemical and petrochemical plants: Protection for motors used in various pumps, valve actuators, and mixing equipment.
Lifting and material handling plants: Motor control centers (MCCs) for port machinery, overhead cranes, hoists, and automated warehousing equipment.
