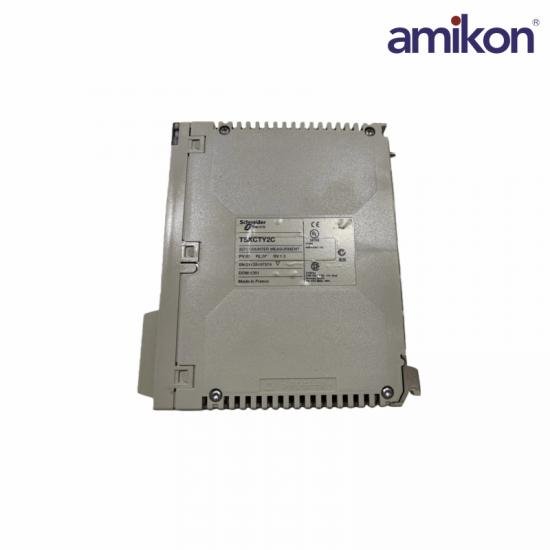

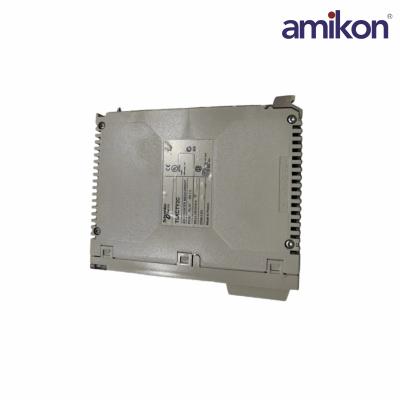

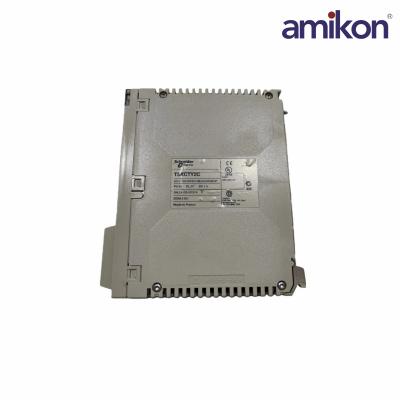

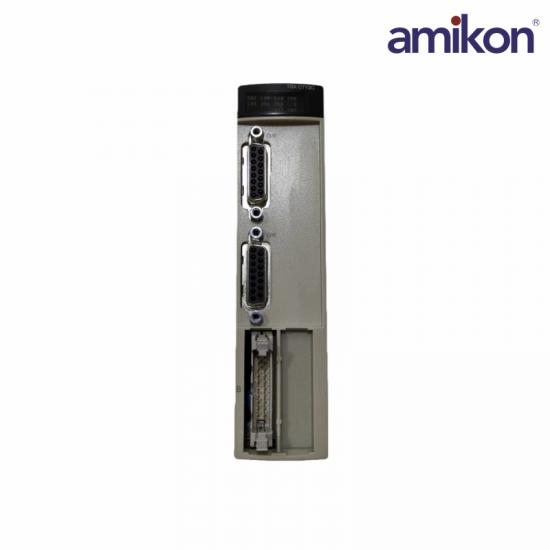

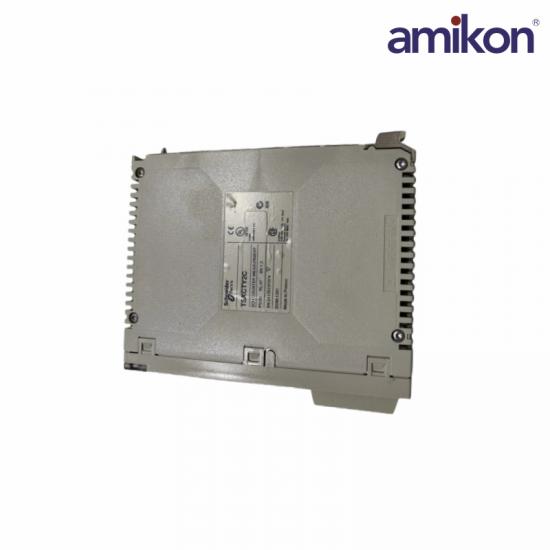

The Schneider Electric TSXCTY2C is an auxiliary input module designed for TSX Micro PLC systems. This component utilizes a current sink method for auxiliary input functionalities such as presetting, enabling, and reading signals. The device accommodates various input types, including 2 and 3-wire proximity sensors (PNP/NPN) and incremental encoders. It operates over a range of voltages from 10 to 30 volts with totem pole output and 5 V DC RS422 standards.

It operates on a standard input voltage of 24 V, with different current requirements: 18 mA for sensors, 7 mA for auxiliary inputs, and 18 mA for encoders. The voltage limits specify a required encoder voltage of less than or equal to 5.5 V, while sensors and auxiliary inputs function within a range of 19 to 30 V. A state of logic can be identified through key voltage thresholds: for active conditions, the sensors and auxiliary inputs must exceed 11 V, while the encoder requires at least 2.4 V. Conversely, a voltage of 1.2 V or less signifies a non-active state for the encoder, with corresponding limits for sensors and auxiliary inputs.

Frequently asked questions：

Q:Is this product brand new?

A:Yes, Schneider TSXCTY2C is brand new, original, unused, and factory sealed

Q:Do you have it in stock?

A:Yes, right now we have Schneider TSXCTY2C in stock ready for shipment, we can support video inspection.

Q:What payment mothod we used?

A:We usually use T/T (Telegraphic Transfer).

Q:Can I contact you on Email?

A: You can contact me online to get my email add
