Brand/Manufature:
SchneiderProduct Origin:
FRANCELead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:
CooManufacturer: Schneider Electric
Product Type: Power Supply Module
Product Line: Modicon
Part Number: TSXPSY5500
Weight: 1.38 lbs (0.62 kg)
Rated Voltage: 100–240 VAC
Input Frequency: 50/60 Hz
Protection Rating: IP20
Power Rating: 55 W
Inrush Current: 38 A (100 V and 240 V)
Output Voltage: 24 V DC
Output Current: 500 / 1700 mA
LED Indicators:
1 green (OK)
1 green (24 V)
1 red (BAT)
Overload Protection: Yes (secondary circuit)
Certifications: CE, UL, CSA, IEC 61131-2, DNV, BV
Ambient Temperature Range: -25°C to +70°C

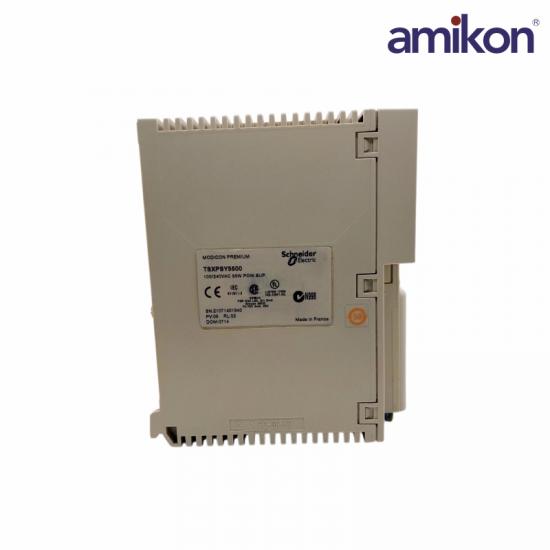

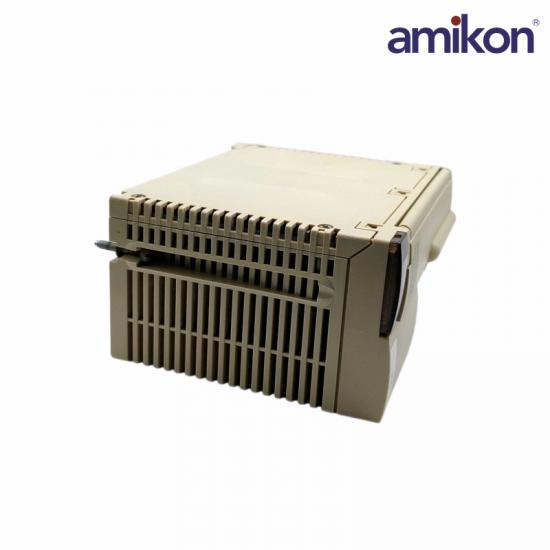

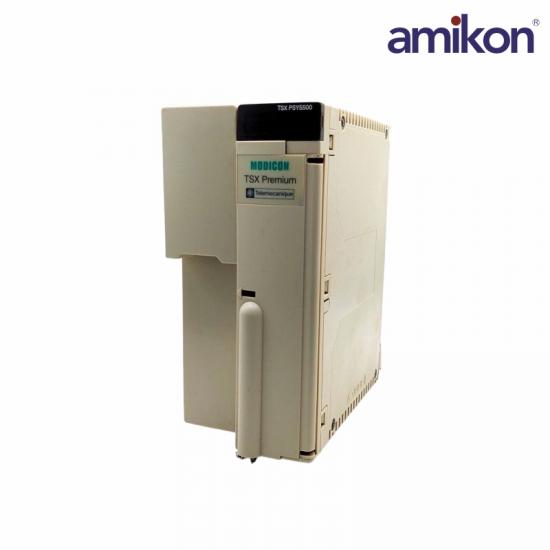

The TSXPSY5500 is a power supply module developed by Schneider Electric under the Modicon series. This component is rated to handle an input voltage from 100 to 240 VAC, making it versatile for various power systems. Notably, it provides a stable output voltage of 24 V DC, meeting the needs of many applications. The module carries a power rating of 55 W and an output current capacity of either 500 mA or 1700 mA, depending on the requirements.
During startup, the inrush current can reach as high as 38 A for both 100 V and 240 V configurations, which is a critical consideration for system design. Visual indicators include one green LED signaling system status as 'OK,' a second green LED indicating that 24V is active, and a red LED for battery alerts, delivering real-time feedback on its operational state.
Frequently asked questions：
1.What is the input voltage range for the TSXPSY5500 power supply module?
The TSXPSY5500 supports an input voltage range of 100-120V AC (85-140V) and 200-240V AC (190-264V).
2.What is the TSXPSY5500 rated frequency for this power supply module?
It operates at 50/60 Hz, with network frequency limits of 47–63 Hz.
3.What is the TSXPSY5500 maximum inrush current?
The TSXPSY5500 inrush current is 38A at both 100V and 240V.
4.What is the TSXPSY5500 maximum operating altitude?
The TSXPSY5500 can function at altitudes up to 2000 meters.
